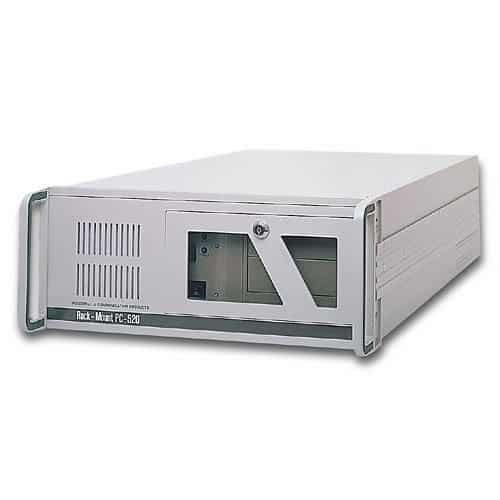

RPC-520

19" 4U 20-slot industrial rack-mount P4 chassis

产品特色

  • 19″ 4U rack-mount chassis meets EIA RS-310C industrial standard
  • Rugged construction suitable for harsh industrial environment
  • Lockable front door for dust-proof and running security
  • One power on/off switch with LED indicators and one reset switch inside the lockable door
  • Replaceable air filter for easy cleaning
  • Three cooling fans and easy-to-install drive bracket with shock-resistant cushion and well-conductive rubber
  • Removable disk drive bracket for 5 drives (3.5″x3, 5.25″x2)
  • Support 20-slot ISA, 19-slot PICMG and multiple-system backplanes

规格

Specifications
Construction Heavy-duty steel
Drive Bay 3.5 “x3 + 5.25” x2
Cooling Fan Three cooling fams behind the fan filter panel and one within th power supply 12cm dual ball bearing fans
Indicator Power on/off x1, HDD x1
Switch Power on/off x1, System reset x1, K/B lock x1
Air Filter One front replaceable air filter
Standard Color Light gray
Dimension 482(W) x 638.3(D) x 177(H) mm; 19”(W) x 25.1”(D) x 7”(H)
Weight Net: 23 kg (51.1 lb); Gross: 25 kg (55.6 lb)
Backplane PBP-20I: 20-slot ISA backplane PBP-19AI: 19-slot (18xPCI) active PICMG backplane PBP-19AC: 19-slot (12xPCI) active PICMG backplane PBP-19P4: 19-slot (4xPCI) PICMG backplane PBP-18D4: 18-slot dual-system PICMG backplane

订购指南

Ordering Guide
RPC-520N-19AC-450X 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 450W ATX power supply
RPC-520N-19AC-460AX 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 460W ATX power supply
RPC-520N-19P4-450AX 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 450W ATX power supply
RPC-520N-19P4-460AX 19″ 4U industrial chassis with 19-slot (12xPCI) PICMG backplane and 460W PFC ATX power supply
