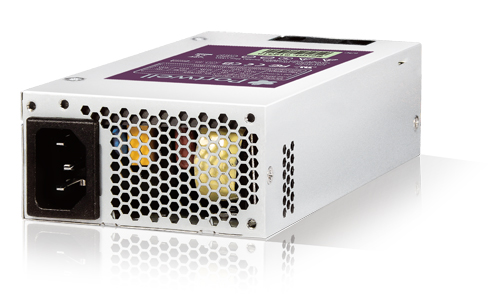

PLUTO-A1801PJ

180W Flex form factor Power supl with Active PFC Japan made capacitor 80PLUS and OVP,OCP,SCP

产品特色

  • Power Efficiency (25°C can meet the minimum efficiency(80%) for all loading conditions (20%,50,100%))
  • Made in Japan capacitor (NCC)
  • Internal 4 cm double bearing fan
  • Leakage current: Less 3.5 mA-rms at 264Vac, 50 Hz
  • Low ripple & noise
  • 100% Hi-pot tested
  • Hold-up Time in 16ms
  • Power Good signal: TTL compatible on delay 100ms to 500ms , off delay 1ms
  • Short Circuit Protection
  • Over Voltage Protection
  • Over Current Protection

产品描述

For different industrial environment, like POS, small size server station or Mini-ITX system, PSU takes an important position. For those applications, PLUTO-A1801PJ not only can provide high efficiency but also high reliability. In PLUTO-A1801PJ, capacitors are provided by NCC (Nippon Chemi-Con Corporation), and its electrical characteristics is better than other capacitors. It tolerates as high temperature as 105°C, and low current leakage. High reliability is also an important feature for PLUTO-A1801PJ, Burn-in test in 0°C and 50°C for 12 hours at 100% loading is performed. In such test, PLUTO-A1801PJ can meet various environment standards and keep stable and efficient. In order to protect customers’ valuable data and machine, PLUTOA1801PJ also comes with protective function such as 100% HI-POT Test, Short Circuit Protection, Over Voltage Protection and Over Current Protection.

规格

Specifications
MTBF 10,000 Hours at 100% loading
Temperature/ Humidity Storage: -20°C ~ 80°C, 5% ~ 25°% (non-condensing) Operation: 0°C ~ 50°C, 5% ~ 85°% (non-condensing)
Dimension (W x D x H) 81.5 x 150 x 40.5mm; 5.9” x 3.2” x 1.6”
Risetime 0.1 ms to 20 ms.
