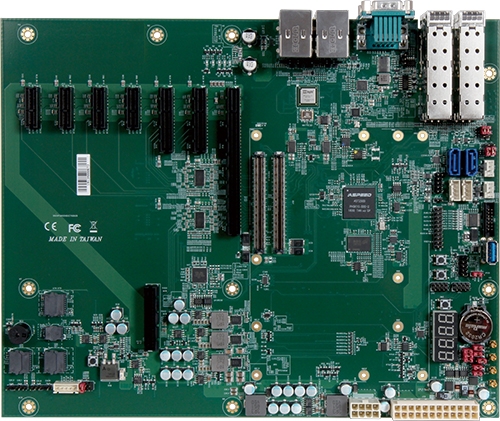

ATX Form Factor Evaluation Carrier Board for COM Expr ess Revision 3.0 Type VII Module with 4x 10GbE Support with Inphi CS4223 PHY


  • Support both AT and ATX mode
  • 10G PHY: Inphi CS4223
  • 1x GbE, 4x 10GbE SFP+
  • 32 PCIe Lanes, 2 SATA III, 4 USB 3.0, 4 USB 2.0


Portwell PCOM-C702 is designed with ATX form factor with COM Express Type VII row connectors; it’s suitable for evaluation testing of Portwell’s Type VII COM Express modules with 4x USB 3.0, 32x PCIe lanes, 4x 10 Gigabit Ethernet, and BMC AST2500 support. Portwell is able to provide carrier board design guide for customer to design their carrier board as a reference. This can shorten customer’s carrier board developing time and make the development quick and easy. The PCOM-C702 provides COM Express Type VII support in addition to fulfill wide range of device connectivity for prototype and flexibility


Model Name PCOM-C702
Form Factor (mm) ATX (305 x 244mm)
COM Type Type 7
CPU/ Clock/ Cache Depends on Module
Chipset N/A
Memory Depends on Module
USB 4x USB 3.0 (Port 0~3) 4x USB 2.0 (Port 0~3)
PCI Express 1x PCIe Gen3 x16 3x PCIe Gen3 x4 4x PCIe Gen3 x1
Ethernet Inphi CS4223 1x GbE, 4x 10GbE SFP+
Sound N/A
Graphic Controller N/A
Carrier Board N/A


Ordering Guide
Product Ordering P/N Status
PCOM-C702 AB1-3J60Z Available
