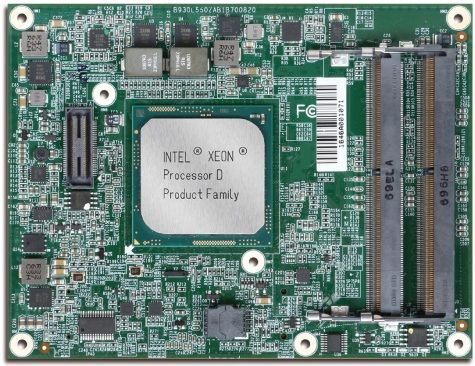

PCOM-B700G
Menu
PCOM-B700G, a Type 7 COM Express module, is designed with Intel® Pentium® and Xeon® processor. Based on the COM Express 3.0 Type 7 pinout definition, when compared to the Type 6 pinout, trades all the graphic interfaces for 10 GbE ports and more PCIe lanes, makes PCOM-B700G ideal for applications in networking , micro server and the like, requiring low power consumption while supporting high computing performance and communication throughput. PCOM-B700G features two 10GbE LAN interfaces, 31 PCIe Lanes and three DDR4 ECC SO-DIMM up to 96GB in total. It is compatible with Type 7 carrier board.
| Model Name | PCOM-B700G |
|---|---|
| Form Factor (mm) | COM Express® Basic (125 x 95mm) |
| COM Type | Type 7 |
| CPU/Clock/Cache | Intel® Pentium® and Xeon® Processors* Intel®D1508 Intel®D1517 Intel®D1539 Intel®D1548 Intel®D1559 Intel®D1577 Up to 16 CPU cores* 3MB to 24MB cache* |
| Chipset | SoC |
| Memory | DDR4 1866/2133/2400 MT/s* Non-ECC/ECC* Dual Channel* |
| USB | 4x USB 3.0 4x USB 2.0 |
| PCI Express | 1x PCIe Gen3 x16 (PEG) 1x PCIe Gen3 x4 (PE2) 8x PCIe Gen2 x1 |
| Ethernet | Intel® I210AT 2x KR (10GbE) |
| Sound | N/A |
| Graphic Controller | N/A |
| Carrier Board | PCOM-C701(Type 7) PCOM-C702 (Type 7) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B700G-D1577 | AB1-3G83 | Available |
| PCOM-B700G-D1559 | AB1-3G82 | Available |
| PCOM-B700G-D1548 | AB1-3F53 | Available |
| PCOM-B700G-D1539 | AB1-3F52 | Available |
| PCOM-B700G-D1517 | AB1-3G77 | Available |
| PCOM-B700G-D1508 | AB1-3G78 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Heat Spreader | B830A070 | Available |
| Heat Sink B830A060 | Available | Cooler B9971570 |
| Available | PCOM-C701 | (ATX Carrier Board) |
| AB1-3J61Z | Available | PCOM-C702 |
| (ATX Carrier Board) | AB1-3J60Z | Available |
