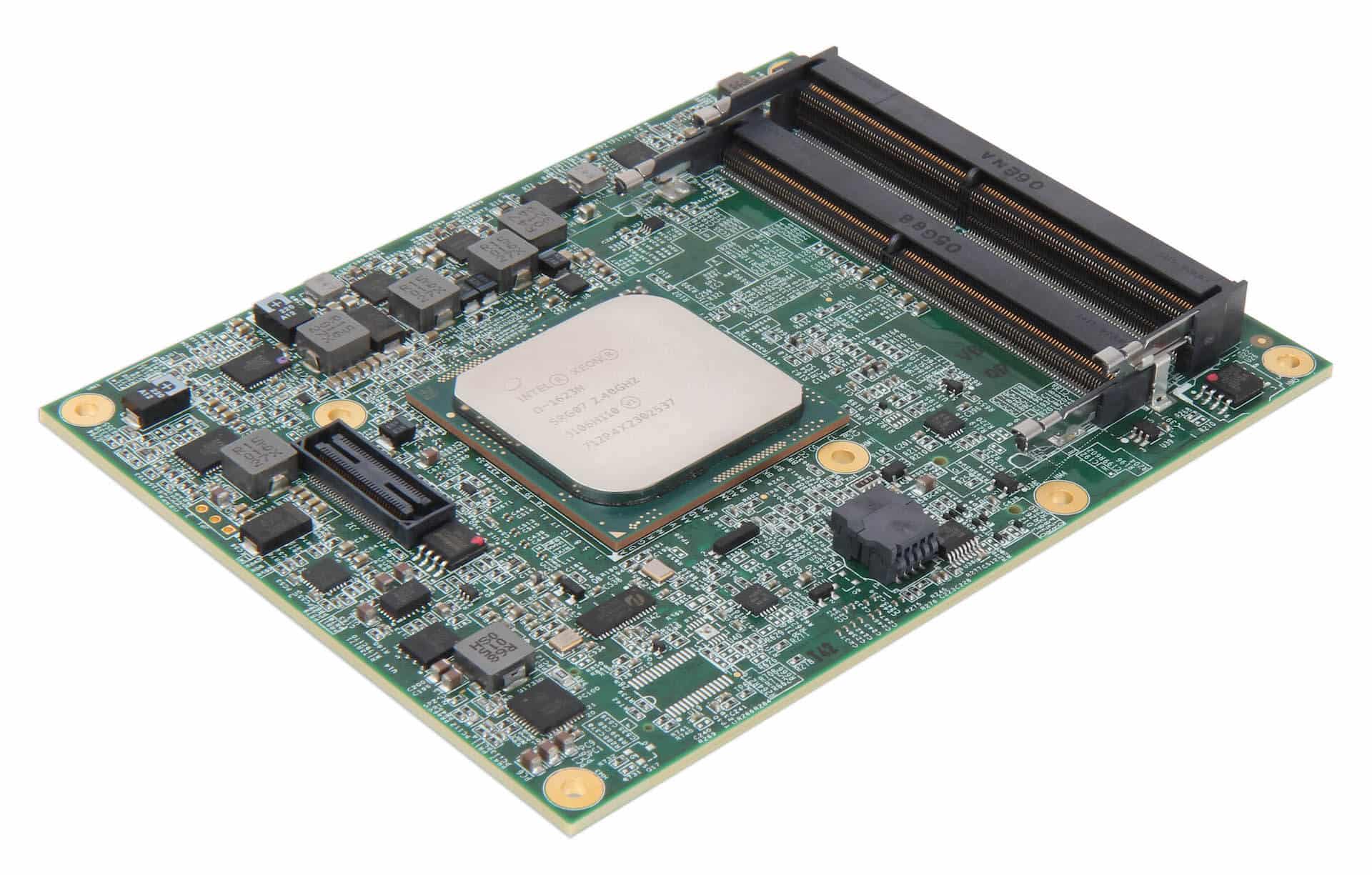

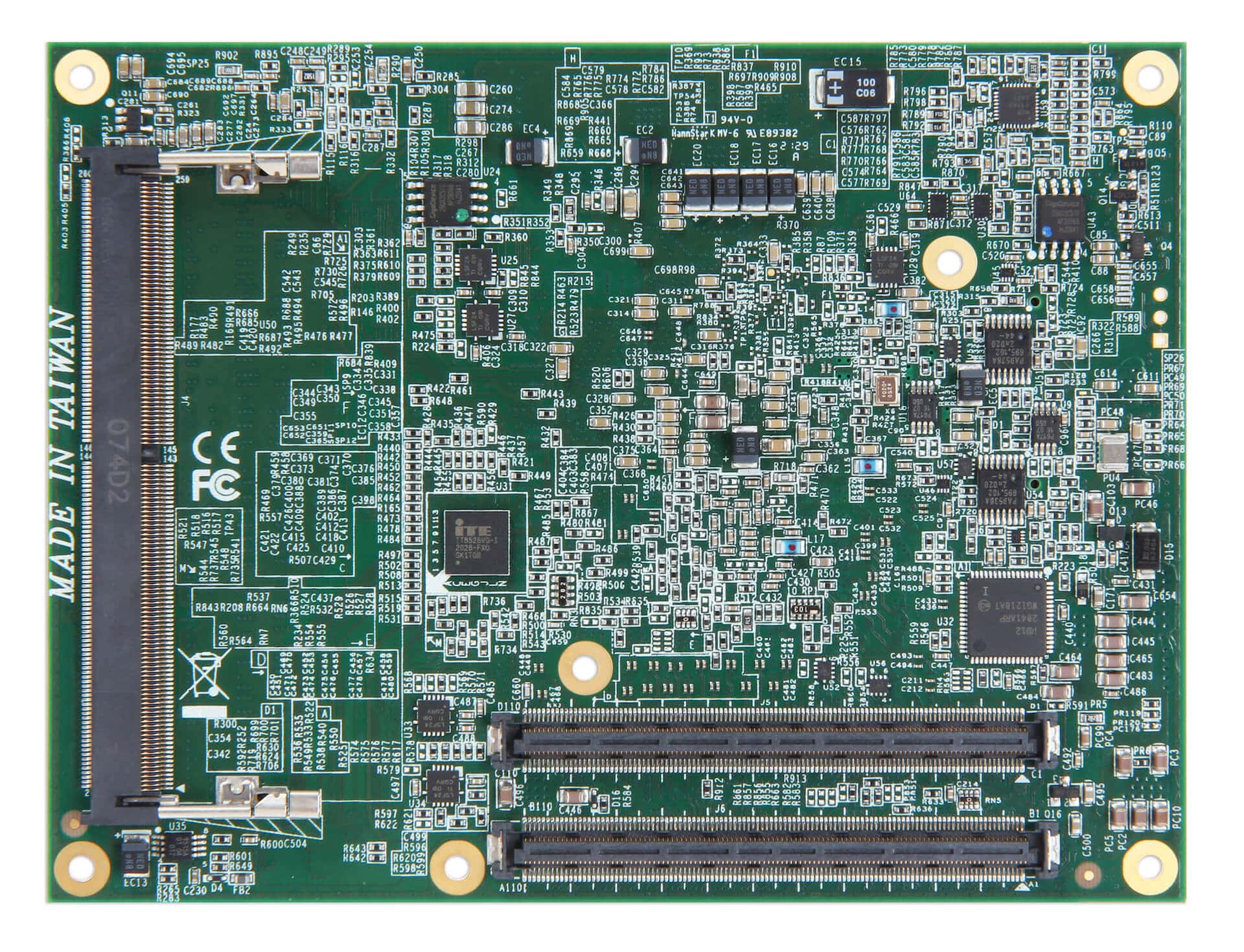

Type 7 COM Express® 模块计算机PCOM-B700G-NS搭载英特尔至强D-1600系列处理器，提供最高8核心与16线程在35~45瓦热功耗设计，与 4x 10G KR埠和最高30 Gbps英特尔QAT密码学卸除，延伸24x PCIe 3.0与8x PCIe 2.0线、4x USB、3.2 Gen1、与2x SATA III埠。特定型号支援宽温。PCOM-B700G-NS提供有效的升级路径给使用前一代D-1500的COM Express，适合边缘运算、自动化、交通等应用。
| Model Name | PCOM-B700G-NS |
| Form Factor (mm) | COM Express® Basic (125 x 95mm) |
| COM Type | Type 7 |
| CPU/ Clock/ Cache | Intel® Xeon® Processors Intel® Xeon® D-1649N Intel® Xeon® D-1633N Intel® Xeon® D-1623N Intel® Xeon® D-1627 Up to 8 CPU cores 6MB to 12MB cache |
| Chipset | SoC |
| Memory | DDR4 1866/2133/2400 MT/s Non-ECC/ECC Dual Channel |
| USB | 4x USB 3.0/2.0 |
| PCI Express | 24x PCIe 3.0 8x PCIe 2.0 |
| Ethernet | 4x 10G KR 1x GbE LAN |
| Intel® QAT (Gbps) | Up to 20Gbps |
| Sound | N/A |
| Graphic Controller | N/A |
| Carrier Board | PCOM-C701-BMC(Type 7) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B700G-NS-D1649N | AB1-3K99 | Contact us |
| PCOM-B700G-NS-D1633N | AB1-3L02 | Contact us |
| PCOM-B700G-NS-D1623N | AB1-3L00 | Contact us |
| PCOM-B700G-NS-D1627 | AB1-3L01 | Contact us |
| PCOM-B700G-NS-D1649N-WT (Wide temperature) |
AB1-3L89 | Contact us |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler | B9972000 | Available |
| Heat Sink | B830B350 | Available |
| Heat Spreader | B830B360 | Contact us |
