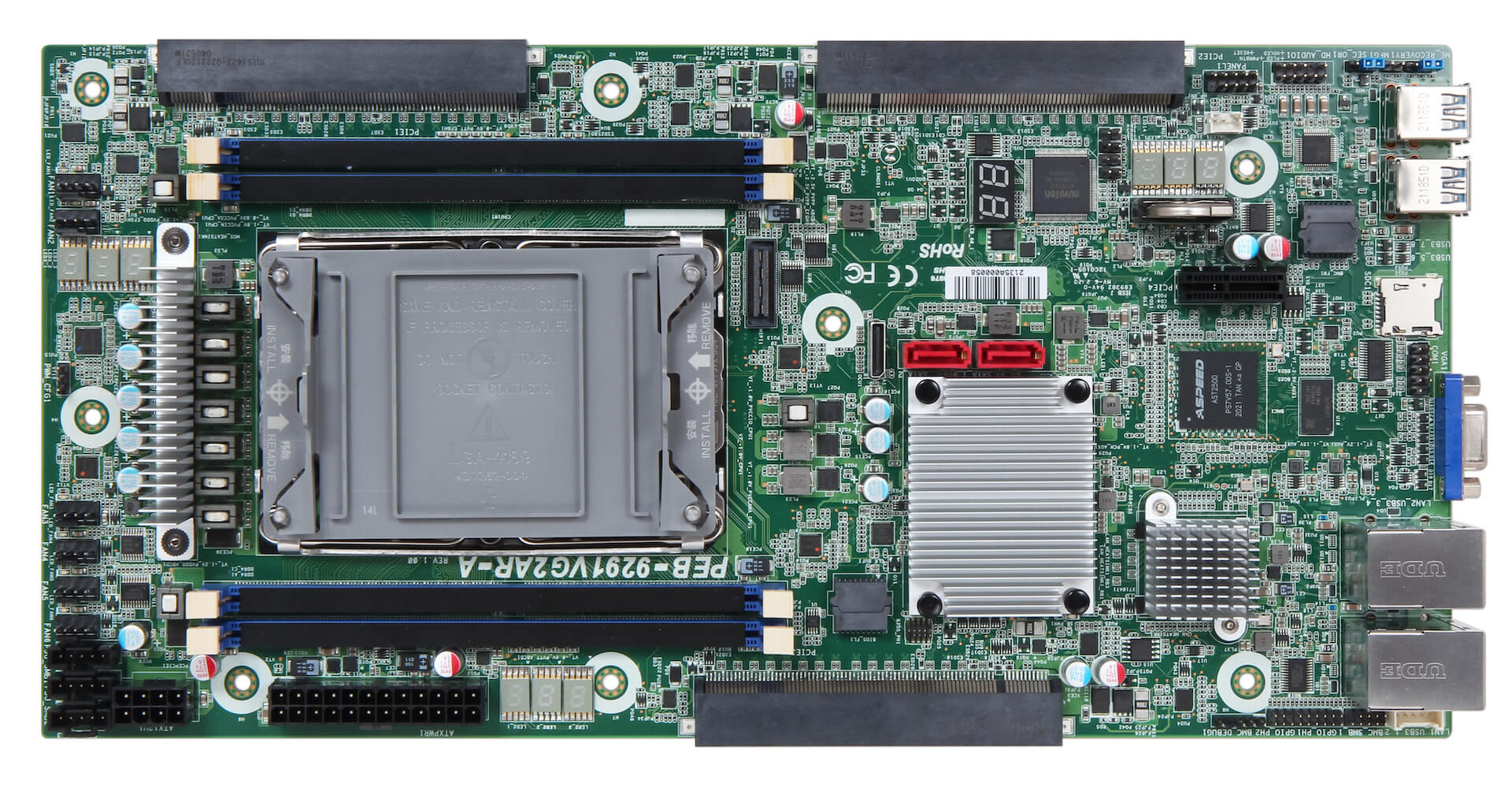

PEB-9291VG2AR-A

Portwell Gen4 PCIe GPU tester

产品特色

  • Supports Intel® Xeon® Silver 4310T/4309Y/4310 Processor
  • Delivers up to 256GB maximum DDR4 2666 Long-DIMM on four sockets
  • Supports VGA display
  • High speed 10G Ethernet based on PCI express x 4

产品描述

Portwell Gen4 PCIe GPU tester

规格

Processor Intel® Ice Lake SP platform
Chipset Intel® C621A
BIOS AMI uEFI BIOS
Memory Supports up to 256GB DDR4 2666 SDRAM on four 288-pin DIMM sockets
Storage Devices 2x SATAIII drives, Supports RAID 0, 1, 5, 10
Watchdog Timer Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs.
Hardware Monitoring System monitor(Voltage,Fan Speed and Temperature)
Expansion Interface From CPU: 3x PCIe 4.0 x16 From PCH: 1x PCIe 3.0 x4
Audio Realtek ALC897 HDA codec, 7.1 channels one on board audio pin header
Ethernet Intel® X710-AT2 10G Ethernet controller Dual RJ-45 connectors with two LED indicators
Serial Port 1x RS-232 ports
USB 8x USB 3.0 ports
GPIO On board programmable 8-bit Digital I/Os

订购指南

AB1-3K64 (R).PEB-9291VG2AR-A.Customized. Intel Ice Lake-SP platofrm w/C62x PCH.Dual 10G Ethernet ports/Audio/PCIEx16 Gen4*3 slots/IPMI support/VGA/x1 slot
