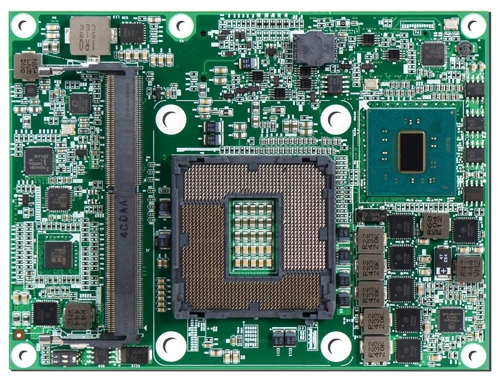

PCOM-B642VG is Portwell’s second module with desktop CPU. It provides customers four important factors, high performance with affordable cost, DDR 4 memory support, Gen 3 PCIe support, and 30% faster graphic performance. The desktop CPU on module is a new idea which offers customer higher computing power but lower cost comparing to mobile solutions. The DDR4 support is also another important point for higher performance. PCOM-B642VG can support both ECC and Non-ECC DDR4 by different PCH SKUs. This is good for different applications. The Gen 3 PCIe support provides faster PCIe speed so that the performance of PCIe devices will be better. It is crucial for Networking and Medical related applications. PCOM-B642VG provides one PCIex16, eight PCIex1 (Option to one PCIex4), four USB 3.0, and four SATA3.
| Form Factor (mm) | Basic (125 x 95mm) |
| Type | Type 6 |
| CPU/Clock/Cache | Intel® 7th Generaon Core™ 35W Desktop processor i7‐6700TE/ i5‐6500TE/ i3‐6100TE Up to 4 CPU Cores Smart Cache 4MB to 8MB |
| Chipset | Q170/ H110/ C236 |
| Memory | DDR4‐2400MT/s Non‐ECC/ ECC 2 Memory channel |
| USB | 4 x USB 3.0 8 x USB 2.0 |
| PCI Express | 1 x PCIe x16 8 x PCIe x1 |
| TBD | PCOM-B642VG.TYPE VI.Kaby Lake-S.Basic Form Factor.Com Express Module.ECC/Non-ECC.DDR4 |
