PAOI-8041

Compact System for Industrial Automation & Control Targeting Automated Optical Inspection

产品特色

  • Support Intel® 8th Gen Coffee Lake-S processor in LGA1151
  • Delivers up tp 32GB maximum DDR4 2400 MT/s non-ECC SO-DIMM on two sockets
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Support 2x PCIe x16 slots (select 1x PCIe x16 or 2x PCIe x8 signal) and 2 PCI slots

规格

Specifications
CPU and General
CPU Intel® 8th Gen Coffee Lake-S processor in LGA1151
Memory Supports up to 32GB DDR4-2400MT/s SDRAM on two 260-pin non-ECC SO-DIMM sockets
Storage
  • 2x SATAIII ports
  • 1x mSATA socket

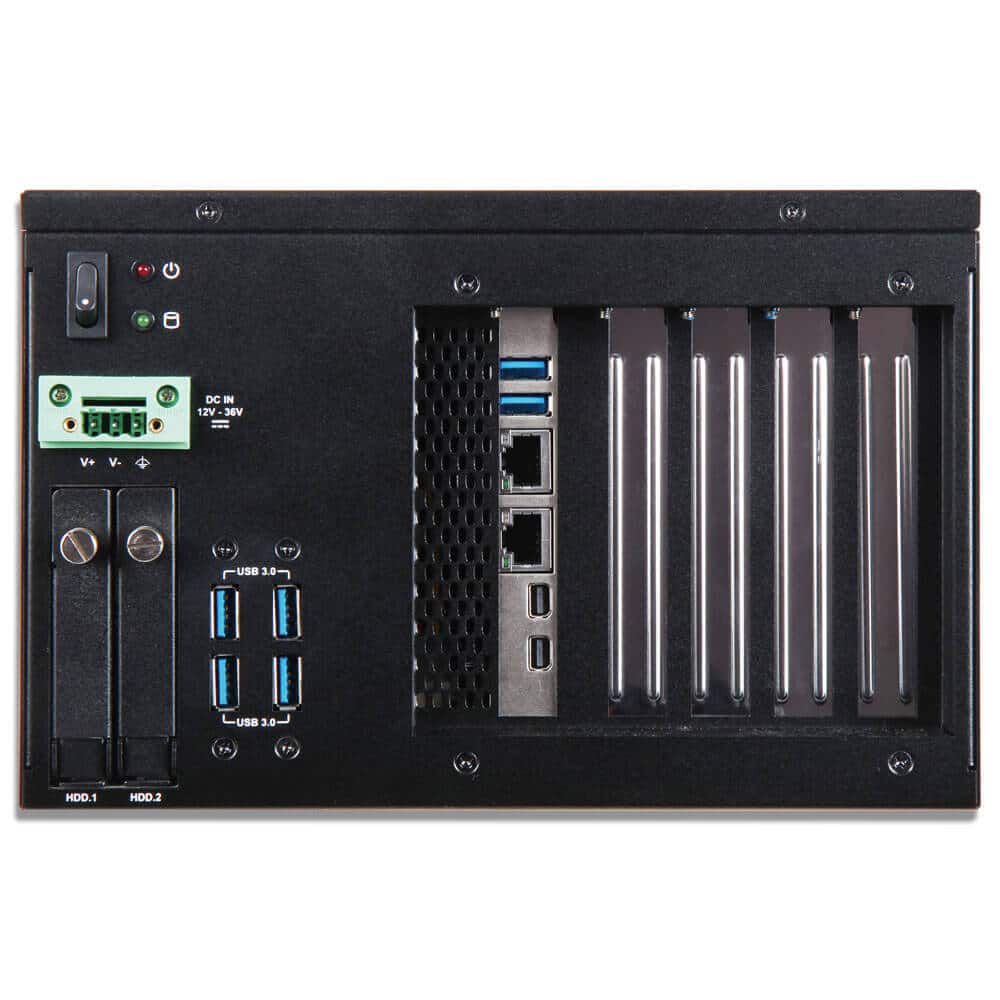

I/O interface
  • 4x USB3.2 Gen1, 2x USB3.2 Gen2
  • 2x Gigabit Ethernet
  • 2x mini DP up to 4096×2304
Power Input DC 12V ~ 36V with 3-pin Terminal Block Connector
Dimension 230(W) x 231(D) x 150(H)mm
Weight 5.8kg
Operating Temperature 0 ~ 40 °C
