LYNX-8110
X7213RE/X7433RE, up to 32GB LPDDR5, 256GB eMMC, 2.5GbE x2, USB-C/HDMI®, -40~70°C, 9W TDP, TPM, IP30
X7213RE/X7433RE, up to 32GB LPDDR5, 256GB eMMC, 2.5GbE x2, USB-C/HDMI®, -40~70°C, 9W TDP, TPM, IP30

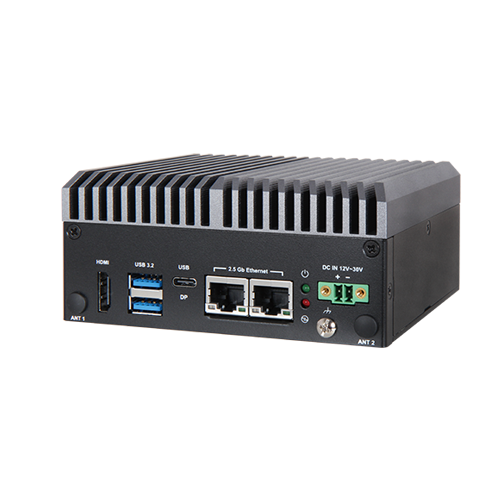

A fanless, compact embedded system powered by Intel Amston Lake processors, supporting up to 32GB LPDDR5 memory and rich I/O for industrial automation. With rugged design, wide temperature tolerance, and TPM 2.0 security, it is ideal for harsh environments and edge computing.
| General | |
|---|---|
| CPU | Intel Amston Lake X7213RE, 2 cores, TDP 9W Intel Amston Lake X7433RE, 4 cores, TDP 9W |
| System Memory | LPDDR5 4800 MT/s Non-ECC Memory chips up to 32GB (default: 8GB) |
| Storage | 1 x M.2 M key 2242 socket (For M.2 2242 M key SATA SSD) On board eMMC Up to 256GB (default:128GB) |
| Power Input | DC 12V~30V |
| Operating System | Windows 10/Windows 11/Linux |
| TPM | TPM2.0 |
| Expansion | 1 x M.2 E Key 2230 socket (For M.2 WiFi module) |

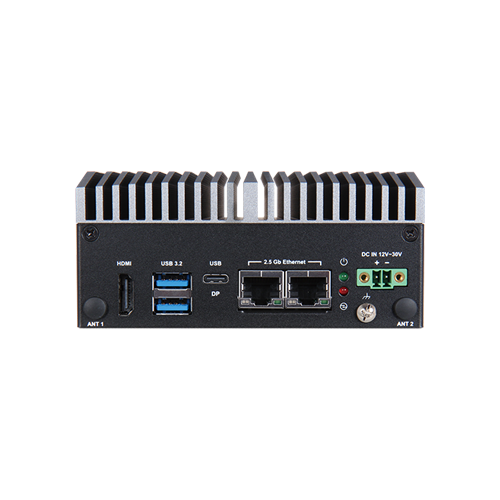

| Basic I/O Interface | |
| Power connector | 1 x 2-Pin Terminal Block connector |
| Ethernet | 2 x Intel® I226IT 2.5Gb ports |
| USB | 2 x USB 3.2 Gen 1×1 ports 1 x USB type C Gen 2×1 |
| Display | 1 x HDMI® 1.4a port 1 x USB type C port with DP ALT mode |
| Certificate | |
| CE,FCC Class A, EN62368-1 | |
| Environment & Mechanical | |
| Storage Temperature | -40℃~85℃ |
| Operation Temperature | -40℃~70℃ |
| Permissible Humidity | 40℃, 95%RH, non-condensing |
| Operation Vibration | 5Grms/10~500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11msec, IEC 60068-2-27 |
| Degree of Protection | IP30 |
| Dimension | 120mm(W) x 54mm(H) x 120mm(D) |
| Weight | 1 KG |
| Mounting | Wall mounting / Din Rail mounting |
| Optional Accessories | |
| Power Adaptor | 2-pin terminal block connector to DC jack cable 60W AC to DC Power Adaptor via DC jack |
