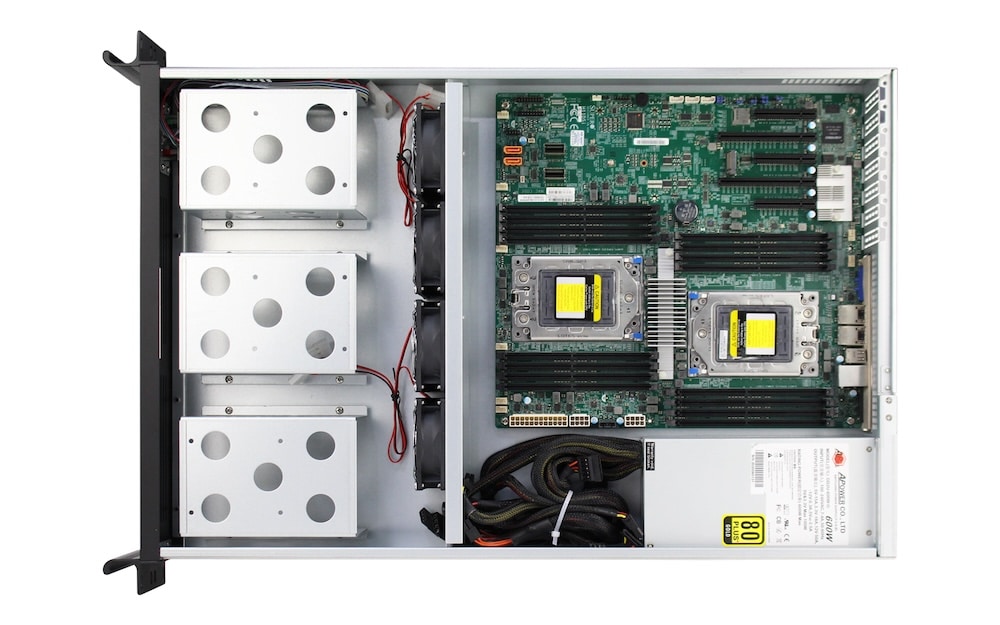

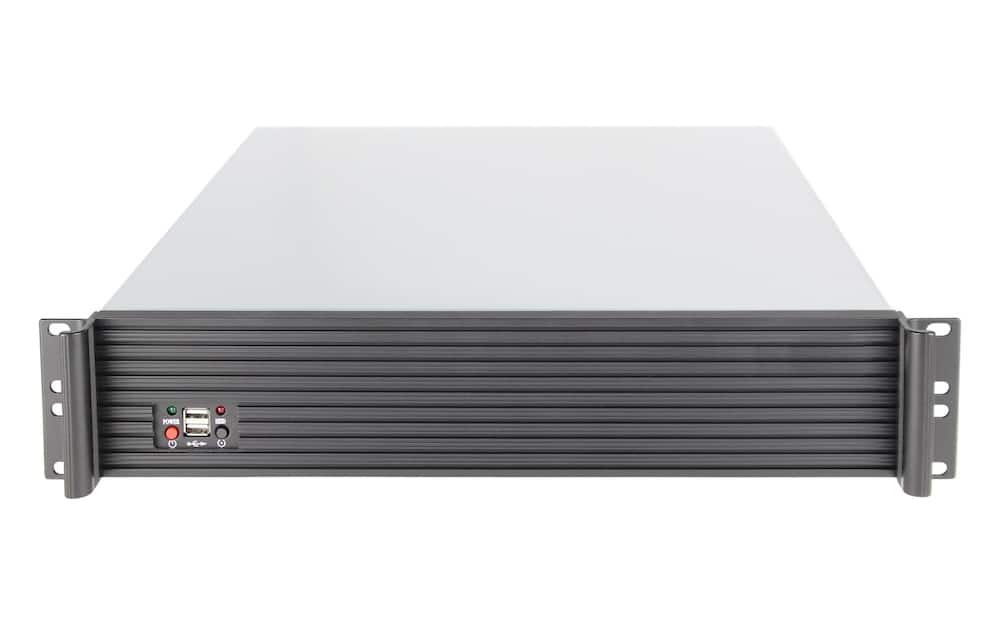

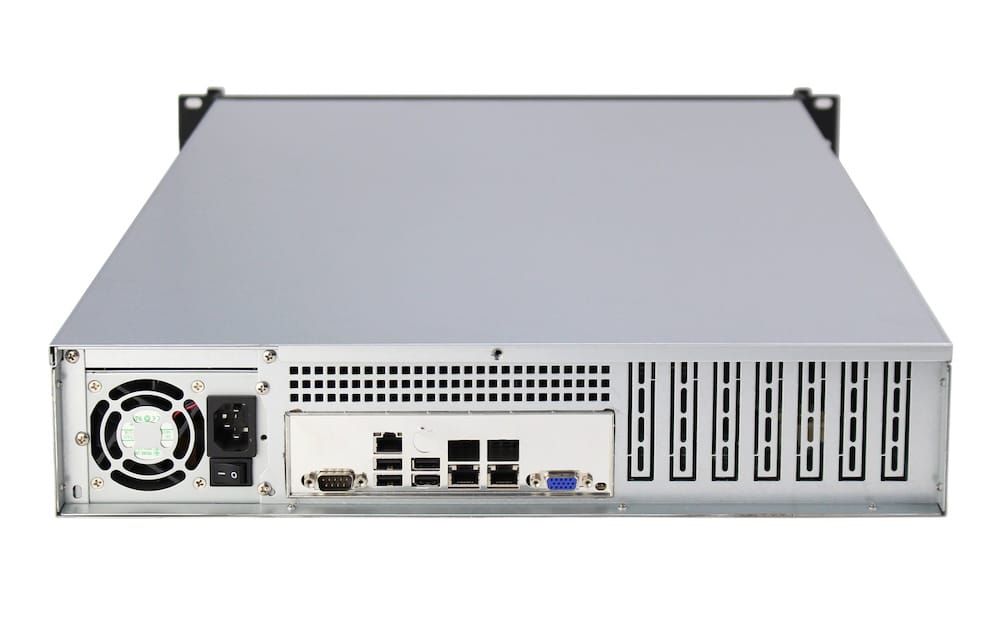

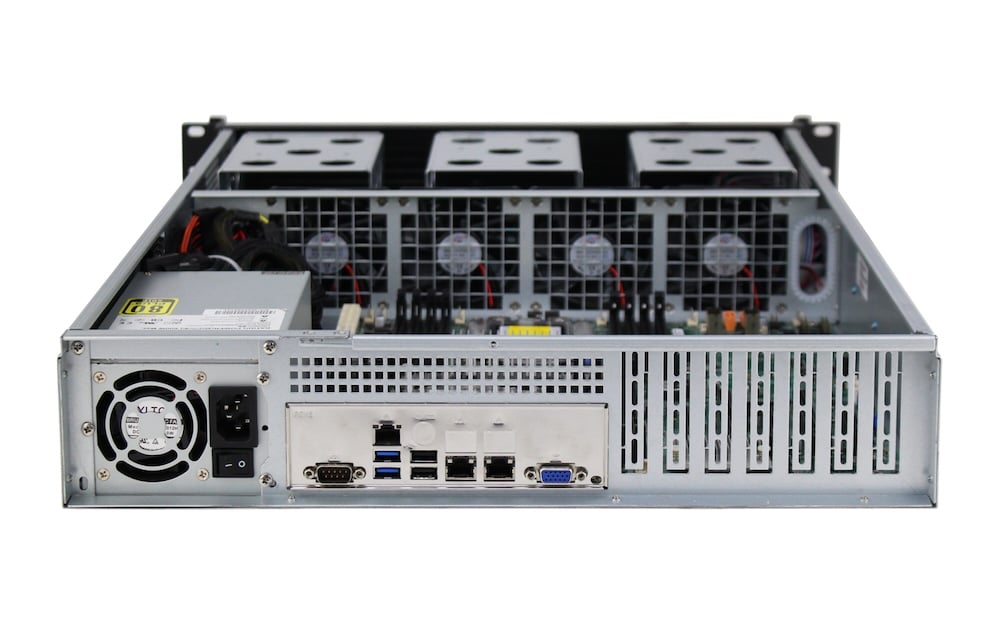

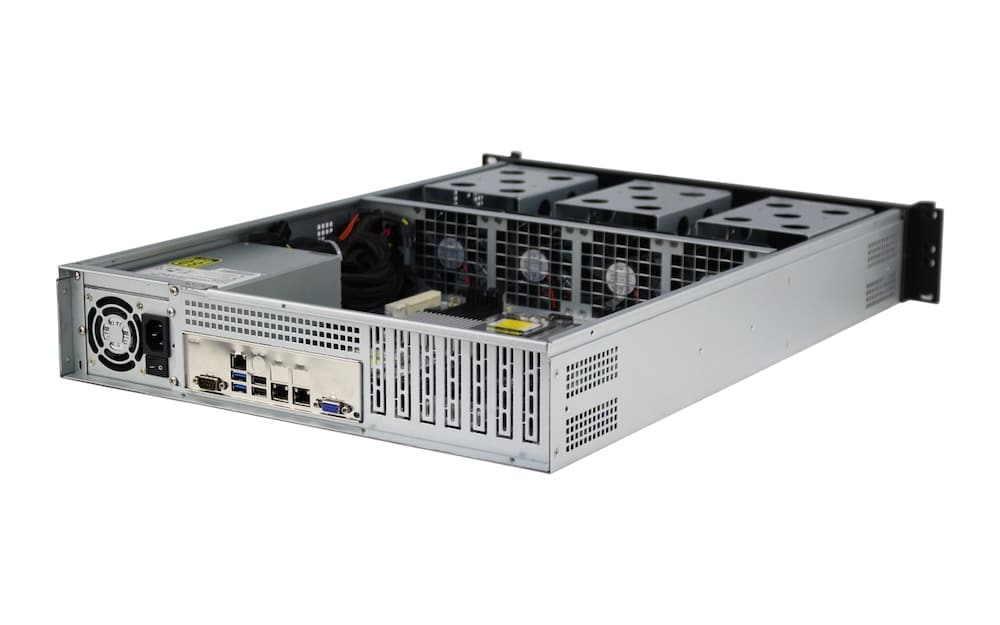

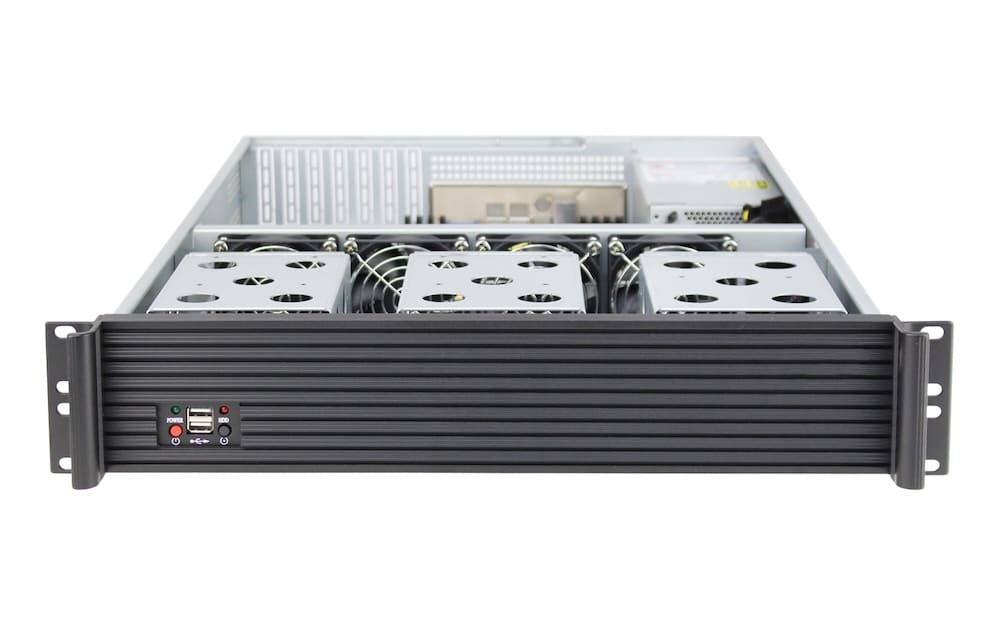

The AREMO-2199-MX uses a 2U rack-mount form factor and is designed for ATX/MicroATX/ Mini-ITX Motherboard. Also, build two USB interfaces on the front panel. AREMO-2199-MX can equip high-wattage 2U form factor PSU. AREMO-2199-MX is suitable for Factory and Server applications.
| General | |
| Construction | Heavy-duty steel with aluminum front panel |
| Drive | Bay 9x 3.5″ HDD( or 3x 2.5″ HDD/SSD) |
| Cooling | Fan 4x 8cm ball-bearing cooling fans |
| Indicator | 1x Power On/Off LED, 1x HDD LED |
| Switch | 1x Power On/Off, 1x System reset |
| Connector | 2x USB ports on the front panel |
| Expansion | slots 7x half-size PCI/PCIe expansion slots, vertical insert |
| Standard | Color Black |
| Dimension | 650 x 428 x 88.5 mm |
| Weight | 8.5 Kg |
| POWER SUPPLY | |
| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 50 ~ 60Hz |
| Input Current | 10A@110V, 5A@240V |
| Efficiency | > 80% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | CE, FCC |
| ENVIRONMENT | |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | 0°C ~ 70°C |
| Relative Humidity | 5% ~ 95°%, non-condensing |
| Vibration |
|
