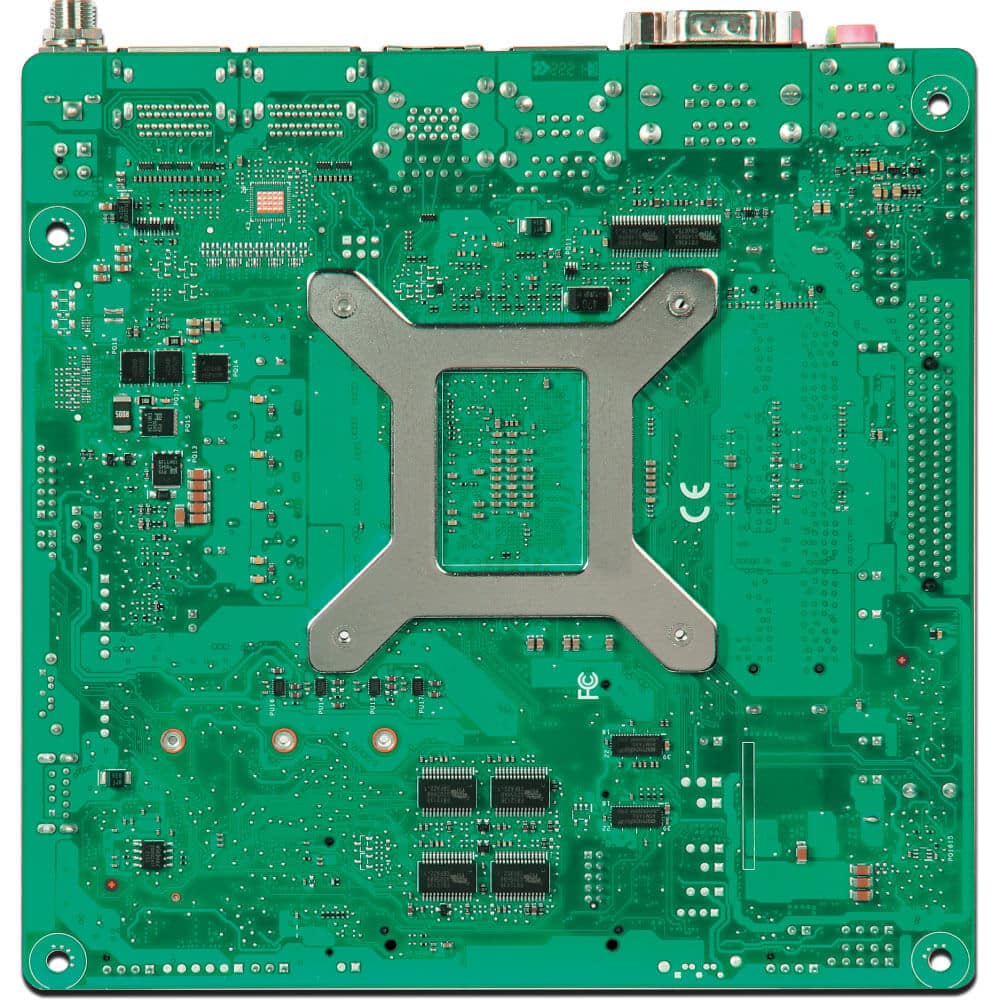

WADE-7220-R2314

AMD RyzenTM Embedded R2314 APU 搭载 Mini-ITX Board with DP, Dual GbE, USB 3.2 Gen2, SATA III, M.2, CFAST

产品特色

  • AMD RyzenTM Embedded R2314 APU
  • Two SO-DIMM support DDR4 DRAM up to 32GB
  • Support dual Ethernet, 6x COM Ports
  • Support 2x USB 3.2 Gen2, 1x USB 3.2 Gen1, 4x USB 2.0, 1x SATAIII port
  • Supports 1x PCIe Gen3 x8, 1x CFAST, 2x M.2 socket (Key M & Key E)

产品描述

WADE-7220-R2314 基于 AMD Ry – zenTM R2314 APU。凭借双通道 DDR4 SO-DIMM 内存和丰富的 I/O 集,Portwell WADE-7220-R2314 Mini-ITX 嵌入式主板为工业自动化应用提供了节能解决 方案。

规格

GENERAL
特点
处理器 AMD Ryzen™ Embedded R2314 APU, 2.1 GHz (3.5 GHz turbo), 15W(12-35W) TDP
芯片组 N/A
BIOS AMI uEFI BIOS
内存
  • Support 2x SO-DIMM sockets
  • Up to 32GB DDR4 2667 MHz memory
  • Support ECC
储存装置 1x SATAIII ports
看门狗计时 Programmable watchdog timer
硬件监控 Temperature (CPU & System)
扩充接口
  • 1x PCIe x8 Gen 3
  • 1x M.2 Key E 2230 with PCIe x1 and USB 2.0 for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIex2 and SATA signal for SSD
  • 1x CFAST*

*If CFAST is enabled, M.2 SATA will be disabled, and vice versa. You may configure this setting in the BIOS.

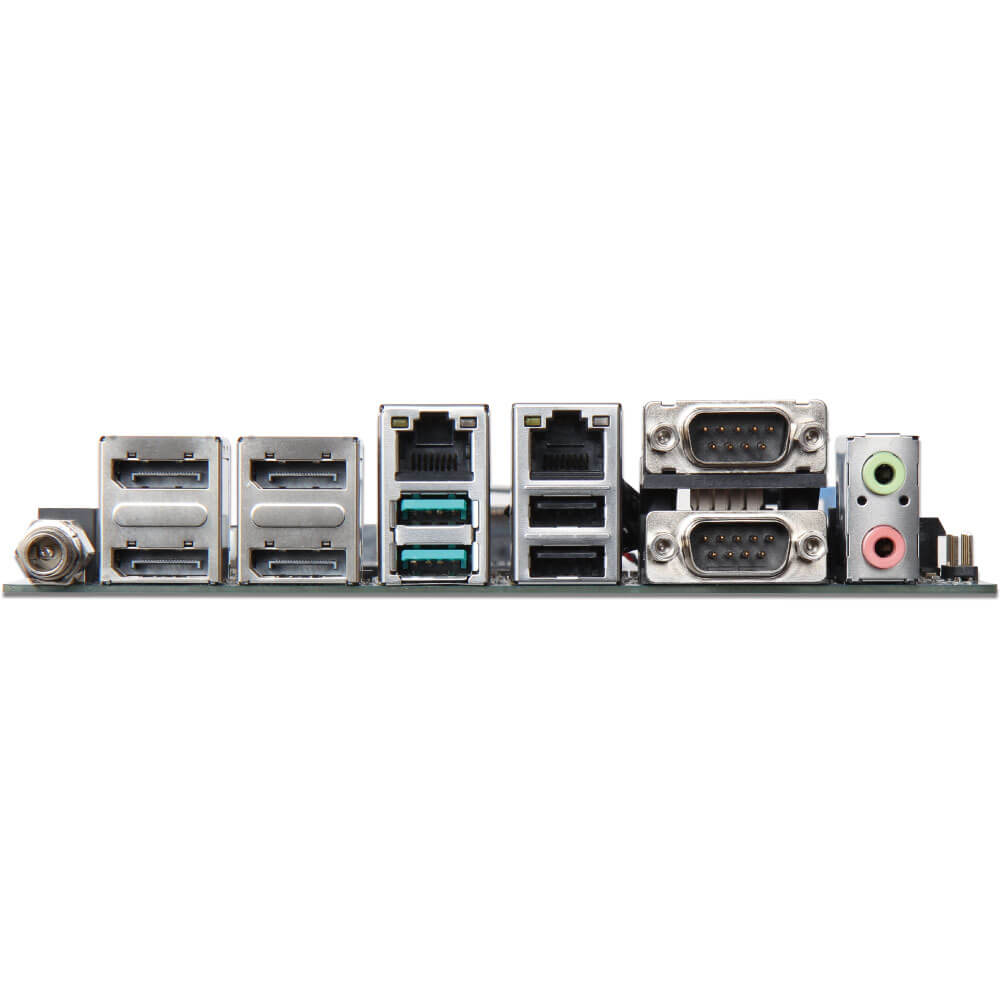

I/O INTERFACE
I/O 界面
音源
  • Intel® High Definition Audio interface Realtek® ALC897 High Definition Audio
  • Audio jack support Line-out/Mic-in
  • 2x 2W Stereo Speaker output
  • 1x 5.1 channel internal pin header
以太网络 2x RJ45 connectors on rear I/O (Realtek® RTL8111H)
串行端口
  • 2x RS232/422/485 port on rear I/O
  • 4x RS232 ports on pin header
USB
  • 2x USB 3.2 Gen2 on rear I/O
  • 2x USB 2.0 on rear I/O
  • 1x USB 3.2 Gen1 Type A vertical connector
  • 2x USB 2.0 on pin header
GPIO 8-bit GPI/GPO



DISPLAY
DISPLAY
图像控制 AMD Radeon Vega 6 Graphics
显示器界面
  • DP1: resolution up to 3840×2160
  • DP2: resolution up to 3840×2160
  • DP3: resolution up to 3840×2160
  • DP4: resolution up to 3840×2160



Mechanical & Environment
Mechanical & Environment
尺寸 170mm(L) x 170mm(W)
电源供应 12~24V DC in (1 x external DC jack; 1 x internal 4 pin power connector
环境
  • Operation Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Relative Humidity: 10% to 95%, non-condensing
MTBF Over 100,000 hours at 40°C

订购指南

AB1-3R27 (R).WADE-7220-R2314.
Mini-ITX ESB.AMD Ryzen Embedded R2314 w/DDR4/DP/dual GbE LAN/SATA



包装清单

Packing List

One WADE-7220-R2314 motherboard with Cooler

One I/O shield
One SATA cable
