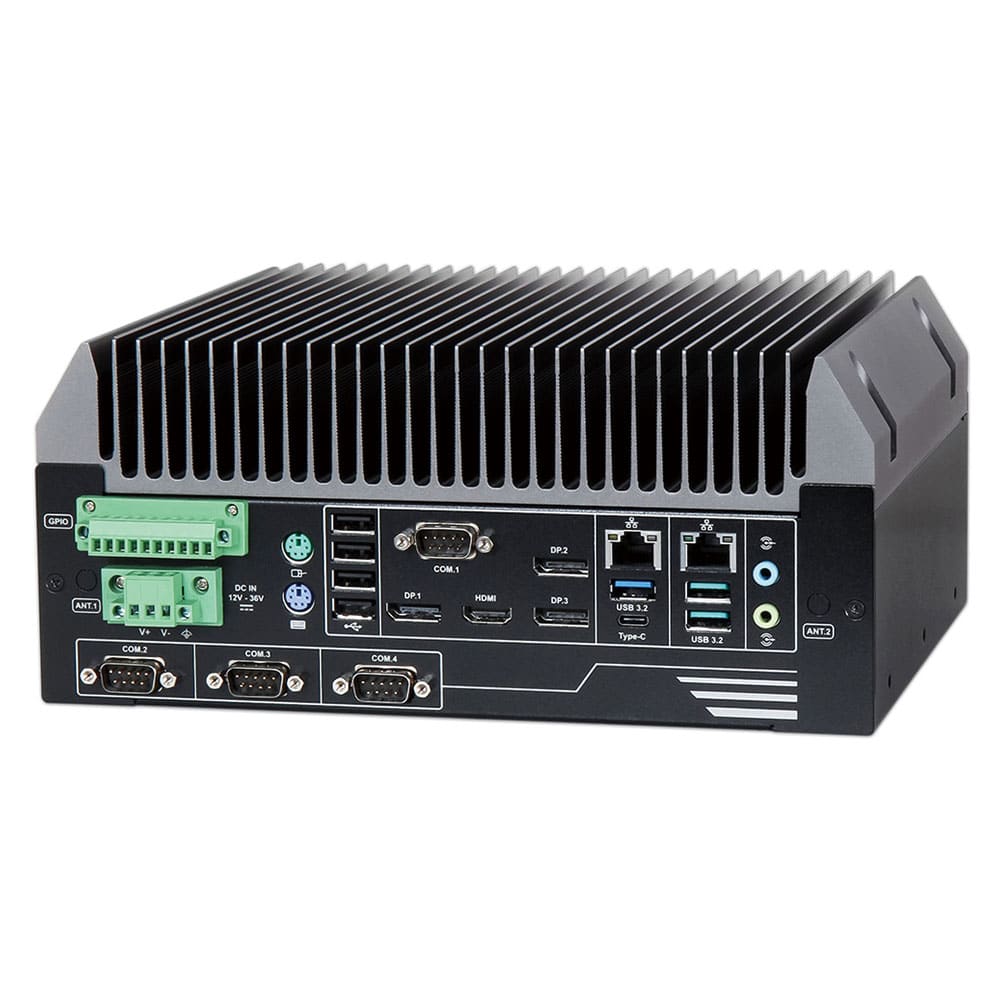

The WEBS-45J1 builds on Intel® desktop Q670E chipset and takes advantages of 12th/13th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support dual DDR5 memory and 2x SATA Ports for storage. Support two Gigabit Ethernet ports , One M.2 E Key, One M.2 M Key socket. The WEBS-45J1 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.
| System | |
| M/B | WADE-8213 |
|---|---|
| CPU | 12th/13th Gen Intel® Core™ Processors CPU in LGA1700 package (35W TDP) |
| BIOS | AMI uEFI BIOS |
| Memory | Up to 64GB DDR5 4800 on two SO-DIMM sockets |
| Storage | 2x SATAIII ports |
| Watchdog Timer | Programmable watchdog timer |
| TPM | TPM 2.0 |
| H/W Status Monitor | System monitor (Voltage and Temperature) |
| Expansion |
|

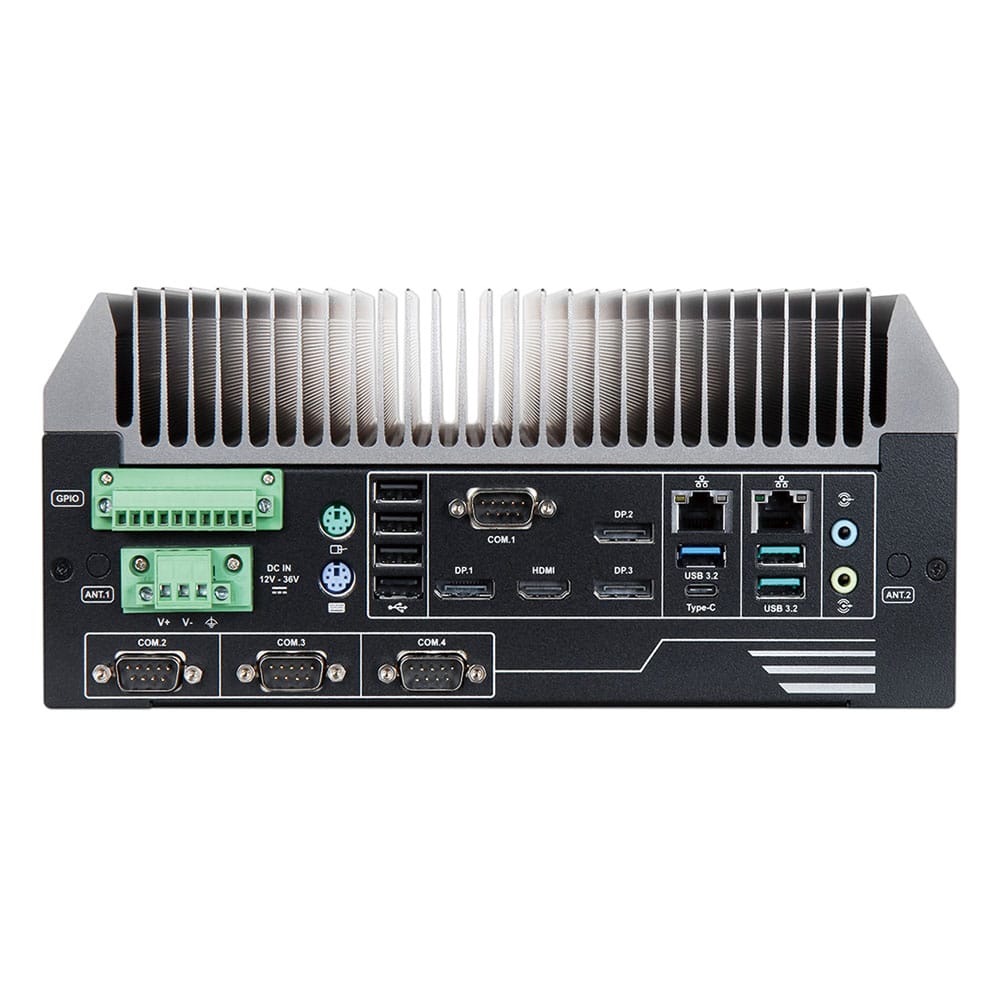

| External I/O | |
| Serial Port | 4 x COM ports ( 1 x RS- 232/422/485) |
|---|---|
| Display |
|
| USB |
|
| Audio | Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller |
| Ethernet |
|
| GPIO | 1x Programmable 8-bit Digital I/O |
| Other |
|
| Power Supply Unit | |
| Power Input | DC 12V ~ 36V with 3-pin Terminal Block Connector |
|---|---|
| Environmental | |
| Operation Temperature | -20°C ~ 60°C |
|---|---|
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 40°C, 95%RH non-condensing |
| Operation Vibration | 1Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Mechanical | |
| Dimension | 253 (W) x 201(D) x 111.8 (H) mm |
|---|---|
| Weight | 4.5 Kg |
| Mounting | Wall mounting |
