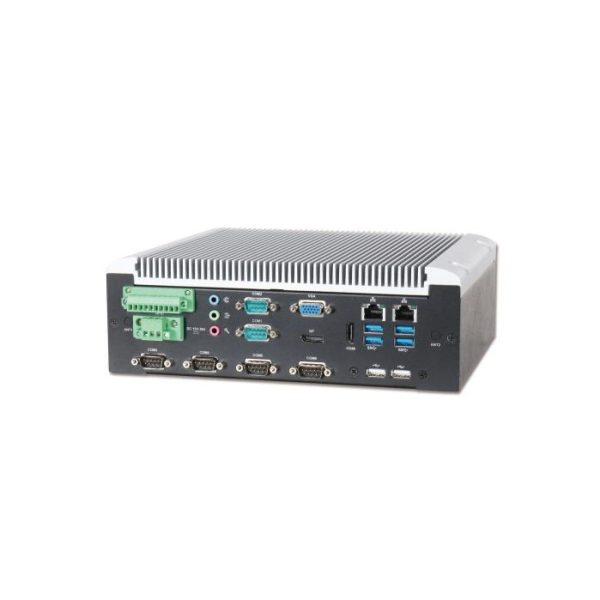

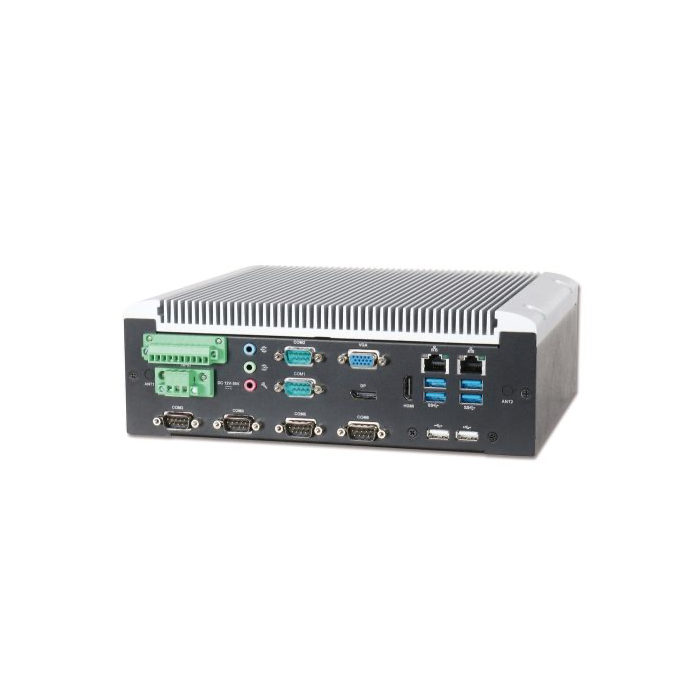

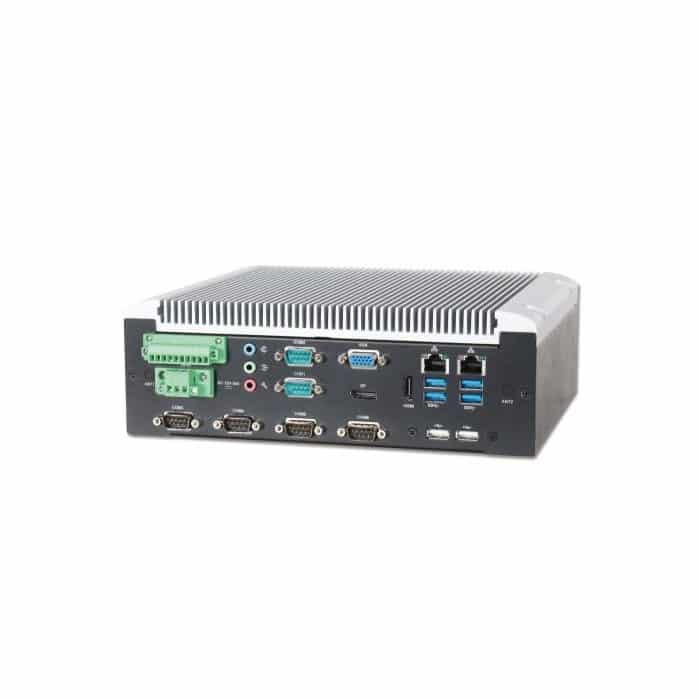

WEBS-35C1

Embedded Rugged Fan-less System with Intel® 6th Skylake-S Core™ i3/i5/i7 based Mini-ITX Board

产品特色

  • Intel® Core™ i High performance Fan-less Embedded Box PC
  • 6th generation Intel® Skylake-S Core™ i3/i5/i7 Desktop processor (Quad-Core CPU supported)
  • Dual UB-DIMM DDR4 up to 32GB
  • 2x 2.5” SATA HDD/SSD, 1x mSATA
  • Rich I/O is good for versatile applications
  • 1x M.2 socket, 1x Full-size Mini-PCIe socket
  • Rugged design is good for using in harsh environment
型录下载
业务服务需求
产品支持服务

产品描述

The WEBS-35C1 builds on Intel® desktop Q170 chipset and takes advantages of Intel® Core™ i3/i5/i7 desktop processor technologies that can support dual DDR4 memory. Support two Gigabit Ethernet ports, one M.2 socket and one Mini-PCIe socket. The WEBS-35C1 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and surveillance security monitoring applications.

规格

Model WEBS-35C1
M/B WADE-8017
Form Factor Mini-ITX
System
CPU Intel® 6th Gerenation Desktop Core™ Processor
Chipset Q170
BIOS AMI UEFI
Memory DDR4/32GB
Graphic Controller Intel® Gen 9 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528 + Fintek F81216
Storage 2x 2.5” SATA HDD/SSD 1x mSATA
External I/O
Serial 4x RS-232 2x RS-232/422/485
USB 2x USB2.0 4x USB3.0
Display VGA, DP, HDMI
Ethernet Intel® I219LM + I210AT
PS/2 N/A
Audio Line-in, Line-out, Mic-in
D I/O 8-bit Digital I/O
Expansion 1x Full-size Mini-PCIe 1x M.2 (Type E)
PWR
System DC 12V ~ 36V
Environment
OP Temp. -20°C ~ 50°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 253 x 201 x 123 mm
Weight 7 Kg

订购指南

Ordering Guide
AS5-3460 (R).ATO.WEBS-35C1.Embedded rugged fan-less system with Intel Skylake-S Core i3/i5/i7 based MINI-ITX system
