WEBS-3581

Embedded Rugged Fan-less System with Intel® Celeron® and Core™ i3/i5/i7 based Mini-ITX Board

产品特色

  • 4th generation Intel® Celeron® & Core™ i3/i5/i7 Desktop processor (Quad-Core CPU supported)
  • Intel® Q87 Chipset
  • Intel® Core™ i High performance fan-less embedded Box PC
  • Dual Long-DIMM DDR3 up to 16GB
  • 2x 2.5” SATA HDD/SSD, 1x SATA DOM
  • 1x Full-size Mini-PCIe socket
  • 2x RS-232/422/485, 4x RS-232, 4x USB3.0, 2x USB2.0, 2x Gigabit Ethernet port
  • Rich I/O is good for versatile applications
  • Triple Display by VGA/HDMI/DP
  • 2x Antenna hole for WiFi or 3G/GPS module to use
  • Rugged design is good for using in harsh environment
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
业务服务需求
产品支持服务

产品描述

The WEBS-3581 builds on Intel® desktop Q87 chipset and takes advantages of Intel® Core™ i3/i5/i7 desktop processor technologies that can support dual channel DDR3 memory. Support two Gigabit Ethernet ports and one Mini-PCIe socket. The WEBS-3581 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and surveillance security monitoring applications.

规格

Model WEBS-3581
M/B WADE-8015
Form Factor Mini-ITX
System
CPU Intel® 4th Generation Desktop Core™ Low Power Processor
Chipset Q87
BIOS Phoenix UEFI
Memory DDR3/16GB
Graphic Controller HD Graphics 4000 Family
Audio Codec ALC886
Super I/O EC ITE IT8728 + Fintek F81216
Storage 2x 2.5” SATA HDD/SSD 1x SATA DOM

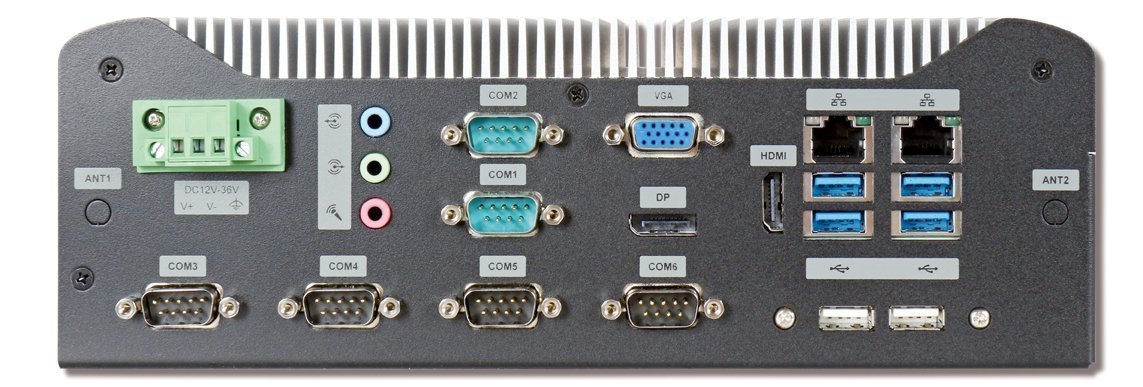

External I/O
Serial 4x RS-232 2x RS-232/422/485
USB 2x USB2.0 4x USB3.0
Display VGA, DP, HDMI
Ethernet Intel® I217LM+I210AT
PS/2 N/A
Audio Line-in, Line-out, Mic-in
D I/O 8-bit Digital I/O
Expansion 1x Full-size Mini-PCIe
PWR
System DC 12V ~ 36V
Environment
OP Temp. -20°C ~ 50°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 253 x 191 x 85 mm
Weight 4.6 Kg

订购指南

Ordering Guide
AS5-3400 (R).ATO.WEBS-3581.Mini-ITX System.
AS5-3437 (R).ATO.WEBS-3581-TBC.WADE-8015. Mini-ITX System.
