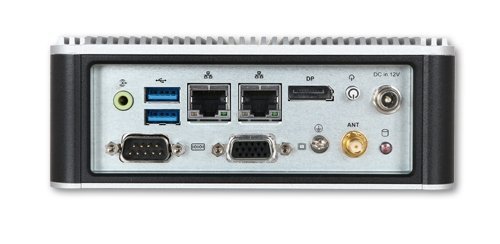

WEBS-21B0

Embedded Compact Fan-less System with Intel® Braswell based NANO-ITX Board

产品特色

  • Fan-less and cable-less & small and exquisite design
  • Single 204-pin SODIMM supports DDR3L up to 8GB
  • Intel® Braswell SoC platform
  • 1x 2.5” SATA HDD/SSD, 1x mSATA, 1x SD card
  • 1x M.2 socket (Type E)
  • 1x Antenna hole for WiFi module to use
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Ratin
业务服务需求
产品支持服务

产品描述

The WEBS-21B0 builds on Intel® Braswell SoC and takes advantages of Intel® Pentium® /Celeron® Dual/Quad Core™ N3000 Series processor technologies, especially its vastly superior Quad-Core™ processing power and capability. The costeffective CPU with high performance is good to use to build up a compact system, the WEBS- 21B0, it supports M.2 socket (Type E) targeting IOT application.

规格

Model WEBS-21B0
M/B NANO-6061
Form Factor NANO-ITX
System
CPU Intel® Pentium®/Celeron® N3000 Series Processor
Chipset Intel® Braswell SoC
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® Gen 8 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528
Storage 1x 2.5” SATA HDD/SSD 1x mSATA, 1x SD
External I/O
Serial 1x RS-232/422/485
USB 2x USB3.0
Display VGA, DP
Ethernet Intel® I211AT x 2
PS/2 N/A
Audio Line-out
D I/O N/A
Expansion 1x M.2 (Type E)
PWR
System DC 12V
Environment
OP Temp. 0°C ~ 55°C
Storage Temp. -20°C ~ 85°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 150 x 150 x 53 mm
Weight 1.8 Kg

订购指南

Ordering Guide
AS5-3451 (R).ATO.WEBS-21B0.NANO-ITX system
