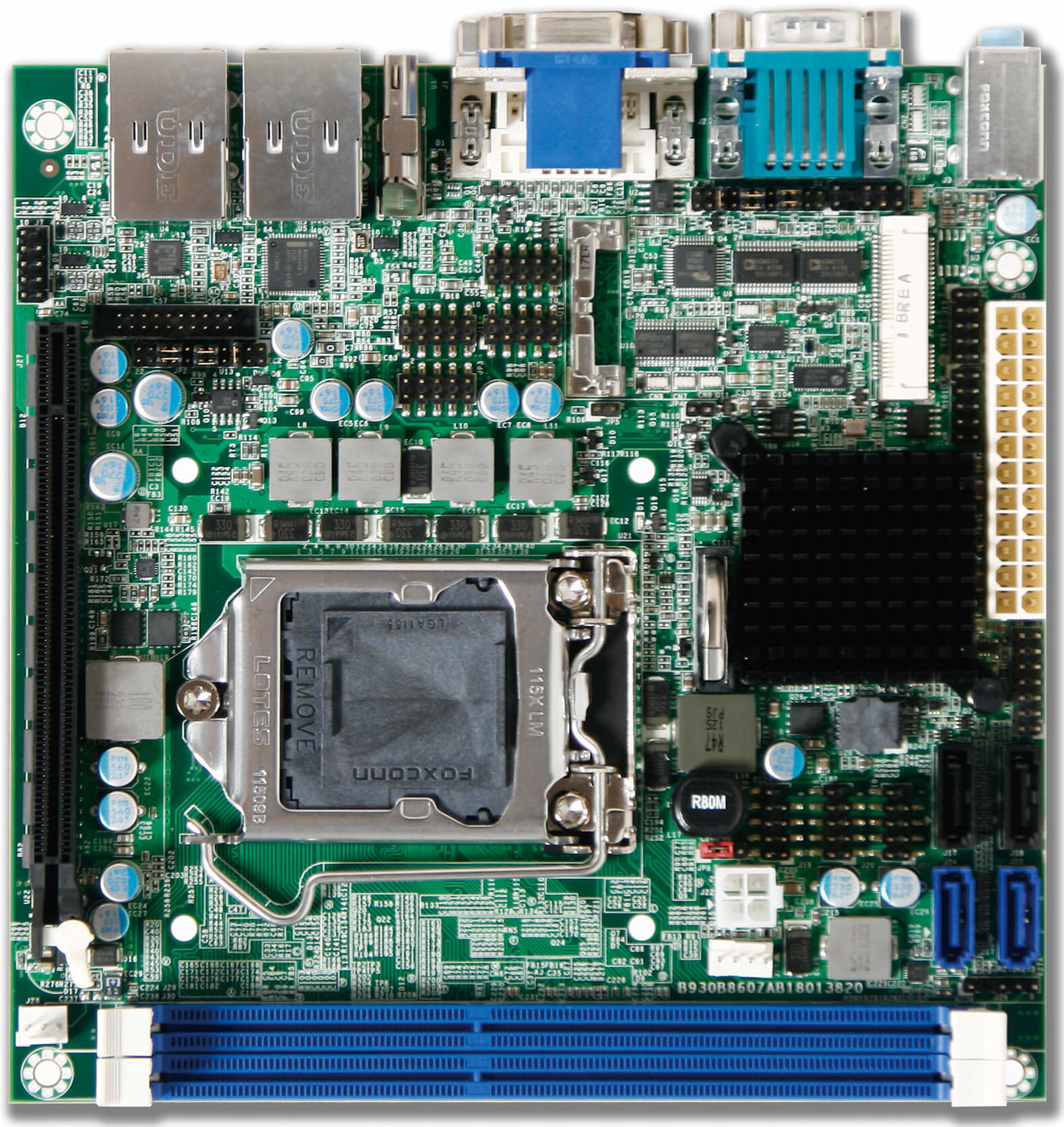

WADE-8013

Intel® Core™ i5/i7 processor based Mini-ITX Board with dual Gigabit Ethernet, 4x SATA Ports, 6x COM Ports, 1x PCIe x16 expansion slot and 1x mini-PCIe slot support mSATA interface

产品特色

  • Intel® next-Gen Dual/Quad processor in LGA1155 package
  • Intel® Q77 Chipset
  • 2x 240-pin Long-DIMM supports DDR3 SDRAM up to 16GB
  • Dual display: VGA/DVI/HDMI
  • 1x PCIe x16 expansion slot
  • 5x SATA ports (2x SATA II, 2x SATA III)
  • 6x COM ports
  • 1x mini-PCIe slot supports mSATA interface
业务服务需求
产品支持服务

产品描述

WADE-8013 supports the latest 3rd generation Intel® Core™ processor platform in an LGA1155 package, integrated with the memory and PCI Express controller supporting two-channel DDR3 memory and PCI Express 3.0 lanes to provide great graphics performance.

规格

Specifications
MODEL WADE-8013
Form Factor Mini-ITX
CPU Intel® Core™ i5/i7 processor in LGA1155 package FSB: 667/800/1066MHz Supports Intel® Hyper-Threading Technology, Intel® Virtualization Technology(VT-x), Intel® Advanced Vector Extensions (AVX)
Chipset Intel® Q77 PCH
BIOS Phoenix BIOS (SPI ROM)
Memory Supports dual channel up to 16GB DDR3 1333/1600 MT/s SDRAM on 2x 240-pin and sockets
Expansion 1x PCIe 3.0 x16 slot (support PCIe x1, x4, x8, x16 mode) 1x mini-PCIe slot
Display VGA/HDMI/DVI-D
Audio Intel® Q77 built-in High Definition Audio up to 96-kHz 24-bit Realtek ALC886-GR, 7.1+2 channel Audio Jack DIP Light Pink/Lime/Light Blue
Serial Port 1x RS-232 port on rear I/O 1x RS-232/422/485 selectable port on rear I/O 3x RS-232 with header 1x RS-232/422/485 with header
USB 4x USB 3.0 ports on rear I/O 6x USB 2.0 ports on board with 2x headers
Storage Device 2x SATA II 2x SATA III
GPIO On board programmable 16-bit Digital I/Os
Dimension 170mm(L) x 170mm(W); 6.69″(L) x 6.69″(W)

订购指南

Ordering Guide
AB1-3790 (R).WADE-8013 Mini-ITX ESB.Q77 w/o ECC PGA1155.w/DDR3 SDRAM /VGA/DVI-D/HDMI/Dual GbE/COM/Audio/USB 3.0

包装清单

One WADE-8013 Mini-ITX Main Board
One Installation CD
One SATA Cableaa
One I/O shield
