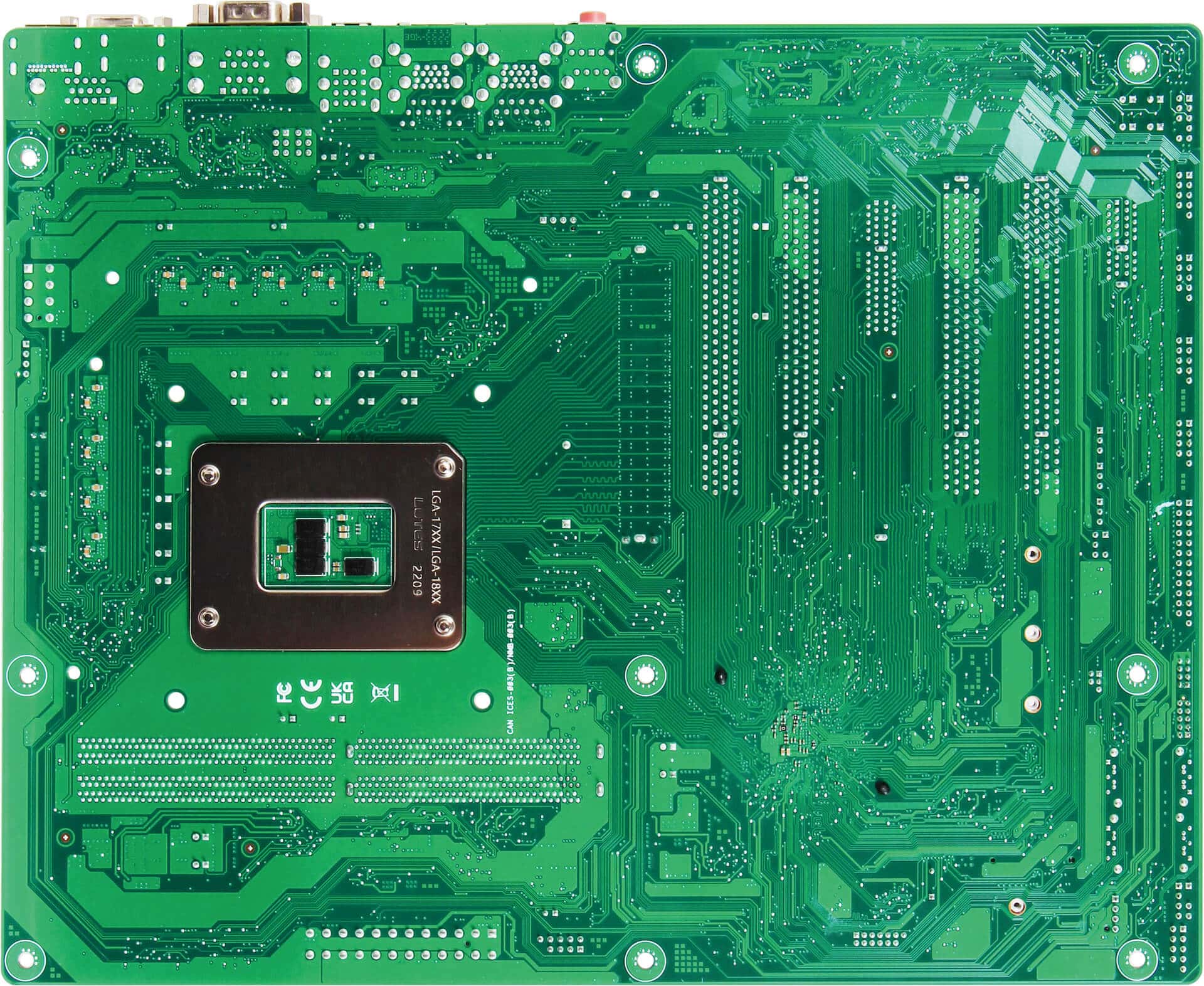

RUBY-D813-H610E

搭载英特尔^® 第 12/13 代 Core™ 处理器 ATX 计算机板搭配最高 64Gb DDR4 LongDIMM 与 VGA、DP、HDMI、双 GbE LAN 六个COM埠

Intel^® 12^th/13^th Gen Core™ Processors support
Two Long-DIMM support DDR4 Non-ECC DRAM up to 64GB
Support dual Ethernet, 6x COM Ports, 4x USB 3.2 Ports , 4x SATA III Ports and Audio
TwoPCIe x16(1x PCIe x4 signal), one PCIex1, four PCI slots, one M.2 (Type M) type 2242/2260/2280

RUBY-D813 基于 Intel^® H610E 芯片组和台式机处理器，包括 Intel^® 12^th/13^th Gen CoreTM i3/i5/i7/i9 Sku。此主板支持 DDR4 、PCIe 和 SATAIII。这些功能可帮助您构建高性能和稳定的系统

Specifications
特点
处理器	Intel^® 12^th/13^th Gen Core™ Processors CPU in LGA1700 package
芯片组	Intell^® H610E
BIOS	AMI uEFI BIOS (SPI ROM)
内存	Support up to 64GB DDR4 Non-ECC on two Long-DIMM socket,up to 3200MHz
储存装置	4x SATAIII ports
看门狗定时器	Programmable by embedded controller
硬件监控	System monitor(Voltage,Fan Speed and Temperature)
扩充接口	– 2x PCIe x16 slots(1x PCIe x4 signal) – 1x PCIe x1 slots , 4x PCI slots – 1x M.2 (Key M) type 2242/2260/2280(SATA/PCIe x1 mode)

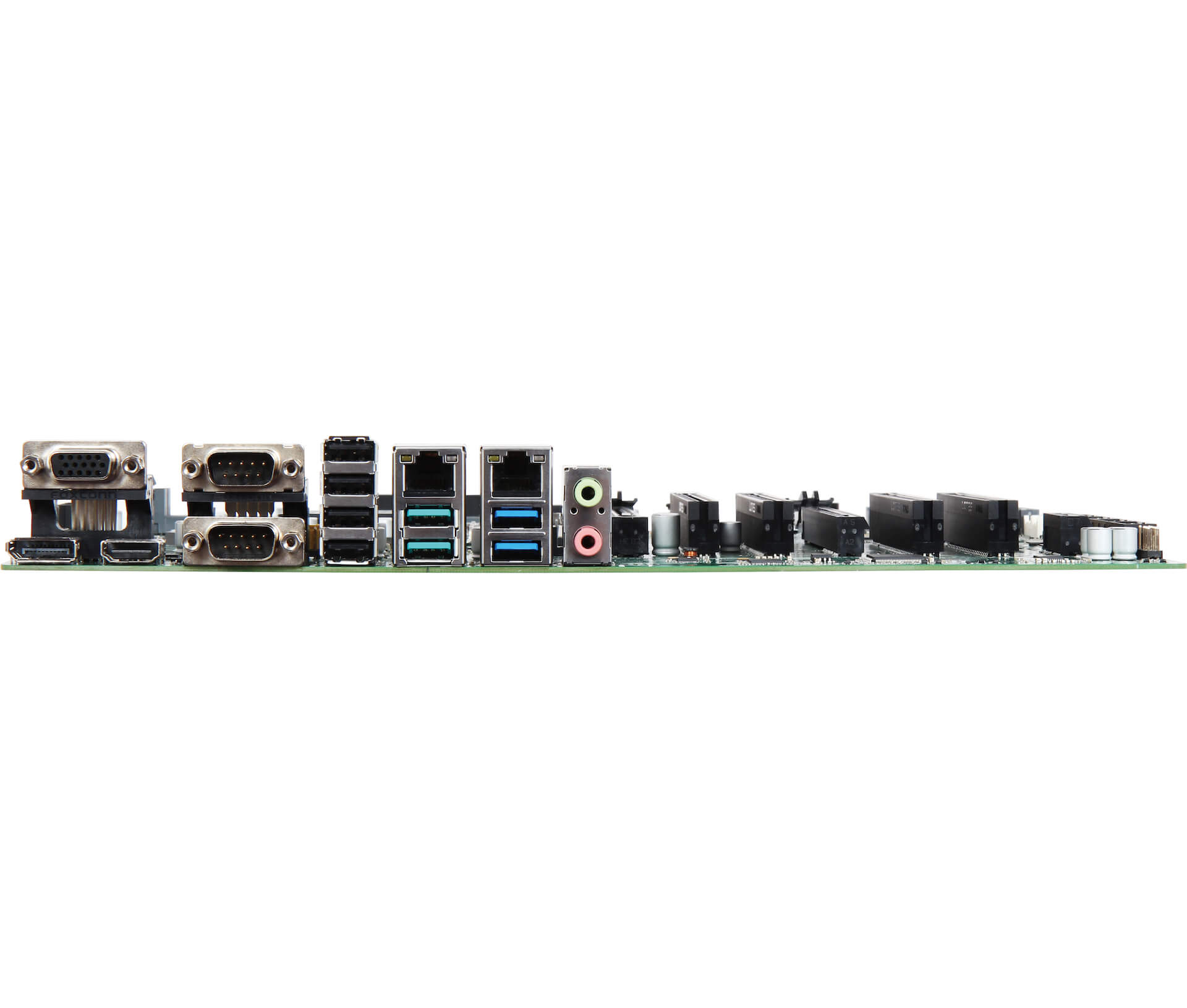

I/O 输入与输出
超级输入与输出	NCT6126D
音源	Audio Jack on rear I/O with Line-out /Mic-in with Realtek ALC897 Audio controller
乙太网络	– Intel^® I219V and Intel^® I210AT Ethernet controller – 2x RJ45 connectors on rear I/O
串行端口	– 2x RS232/422/485 port one on REAR I/O, one on board header – 4x RS232 port on pin header
USB	– 4x USB3.2(Gen2) and 4x USB 2.0 ports on rear I/O – 2x USB2.0 on pin header
GPIO	8-bit configurable controller by embedded controller
显示器
图形处理器	– Intel^® graphic UHD 630 supports DirectX 12, OpenGL 4.5
显示器界面	– DP:DP port on rear I/O, resolution up to 4096×2160 – VGA: One VGA port on rear I/O resolution up to 1920×1200 – HDMI:One HDMI connector on rear I/O, resolution up to 4096×2160
机构与环境
尺寸	304.8mm(L) x 243.8mm(W) x 1.6mm(H)
电源供应	ATX
环境	– Operation temperature:0~60 ̊C – Storage temperature: -20~80 ̊C – Relative humidity:5~95%,non-condensing
MTBF	Over 100,000 hours at 40°C

Ordering Guide
AB1-3P61	RUBY-D813-H610E.ATX IMB.LGA1700 H610E. w/DDR4/VGA/DP/HDMI/Dual GbE / COM/Audio/USB
