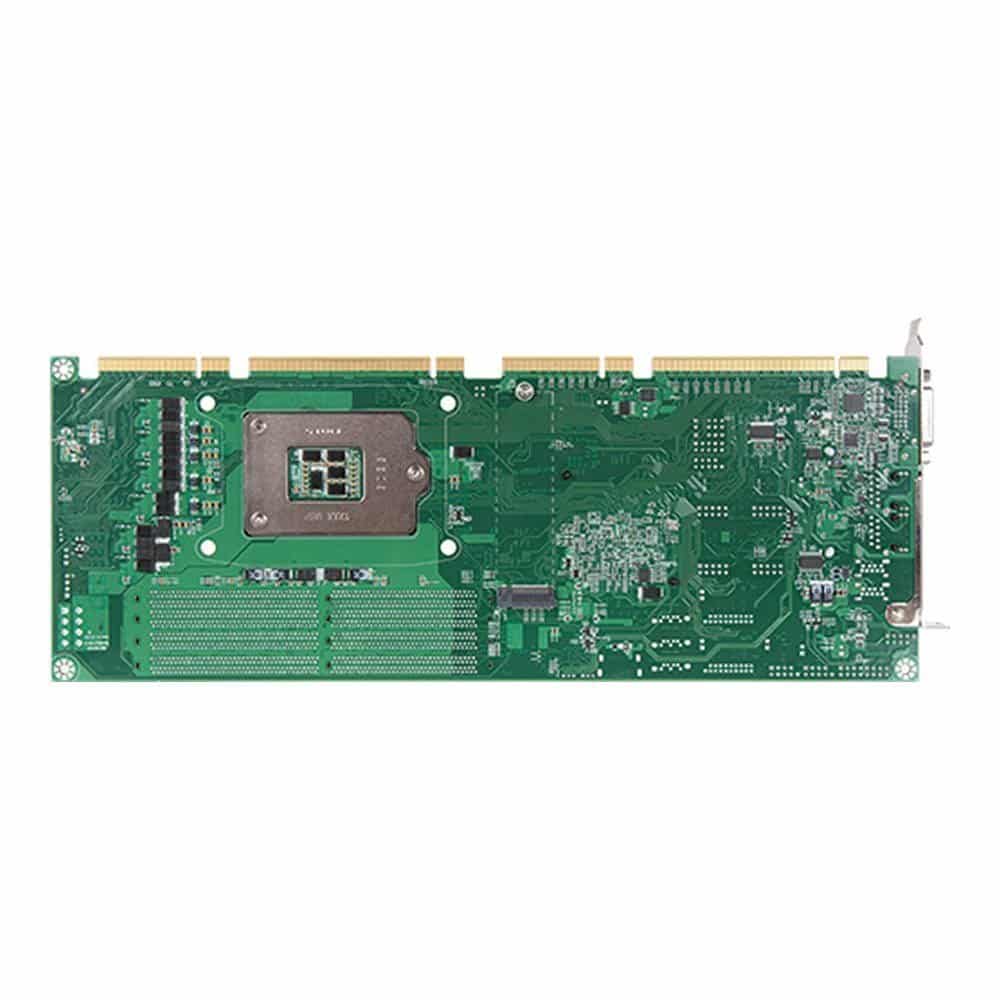

ROBO-8115VG2AR

Intel® Xeon® W/ CoreTM i3/i5/i7/i9 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

产品特色

  • Supports Intel® Xeon® W/Core™ i3/i5/i7/ i9 /Pentium®/Celeron® processors in LGA 1200 package
  • Delivers up to 128GB maximum DDR4 2666 ECC Long-DIMM on four sockets
  • Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Rich I/O connections such as four serials ports, USB3.2(Gen2), SATA III ports
  • Support on board TPM2.0

产品描述

ROBO-8115VG2AR is based on Intel®W480E chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8115VG2AR is suitable for Medical, Industrial automation, and Digital Signage application.

规格

MODEL ROBO-8115VG2AR
Form Factor PICMG1.3
CPU Intel® Xeon® W/ Core™ i3/i5/i7/i9/Pentium®/ Celeron®
Chipset Intel® W480E
BIOS AMI UEFI
Memory 4 x DDR4 ECC DIMM up to 128GB
Expansion 4x PCI slots 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot
Display DVI-I / HDMI
Audio Realtek ALC888S HDA codec
LAN 2x GbE
Serial Port 2x RS-232 ports 2x RS-232/422/485
USB 6x USB3.2 Gen2 8x USB2.0
Storage Devices 5x SATA III 1x M.2 Type M 2280
GPIO 8 bit
Others PS2/KB & MS
Dimension 338.5 x 126.39mm

订购指南

AB1-3K28 (R).ROBO-8115VG2AR.
PICMG 1.3(PCI-E+PCI).LGA1200. W480E PCH. Intel Xeon/Core i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports

包装清单

Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installation Notice
B6903351 (GP).Cable.Video DVI-I to DVID+VGA Y cable L=150mm.0130-069-00-0263. E-CALL
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG
TBD Installation CD
Optional B6903090 USB 3.0 cable with bracket
B6902980 PS/2 Keyboard / Mouse Cable with
bracket
B6902230 USB port cable with bracket
