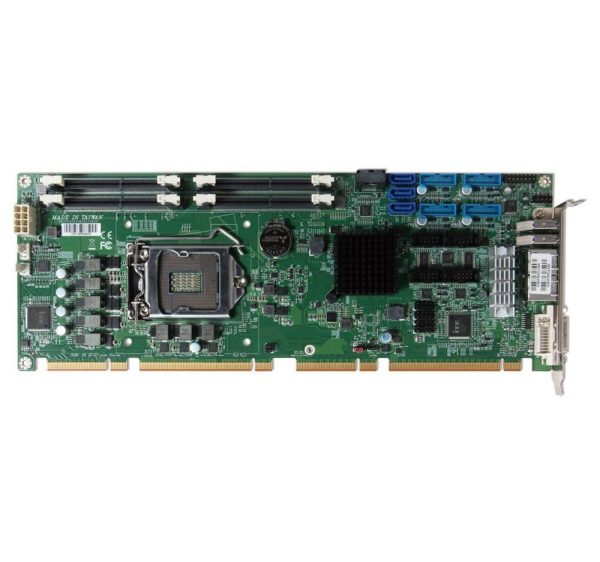

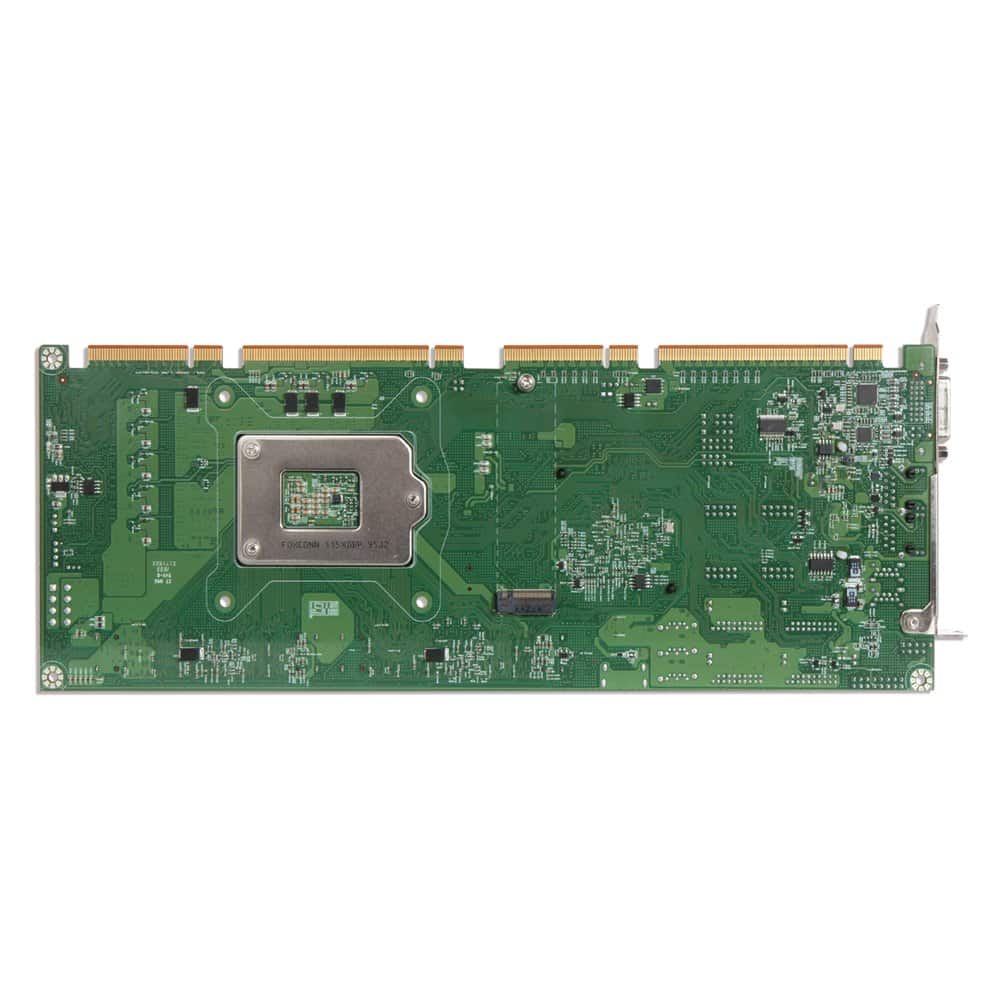

ROBO-8114VG2AR

Intel®Xeon® E/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI, DVI-I, Dual Gigabit Ethernet, Audio and USB

产品特色

  • Supports Intel® Xeon®/Core™ i3/i5/i7/ Pentium®/ Celeron® processors in LGA 1151 package
  • Delivers up to 64GB maximum DDR4 2133 ECC SO-DIMM on four sockets
  • Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI
  • High speed dual Gigabit Ethernet based on PCIe x press x 1, high bandwidth I/O interface
  • Rich I/O connections such as four serials ports,USB 3.0/3.1, SATA III ports
  • Support on board TPM2.0
型录下载
业务服务需求
产品支持服务

产品描述

ROBO-8114VG2AR is based on Intel® C246 chipsetand workstation processors. Built with flexible PCI express expansions, ROBO- 8114VG2AR is suitablefor Medical, Industrial Automation

规格

MODEL ROBO-8114VG2AR
Form Factor PICMG1.3
CPU Intel® Xeon® E3/ Core™ i3/i5/i7/i9/ Pentium®/Celeron®
Chipset Intel® C246
BIOS AMI UEFI
Memory 4 x DDR4 ECC SO-DIMM up to 128GB
Expansion 4x PCI slots 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot

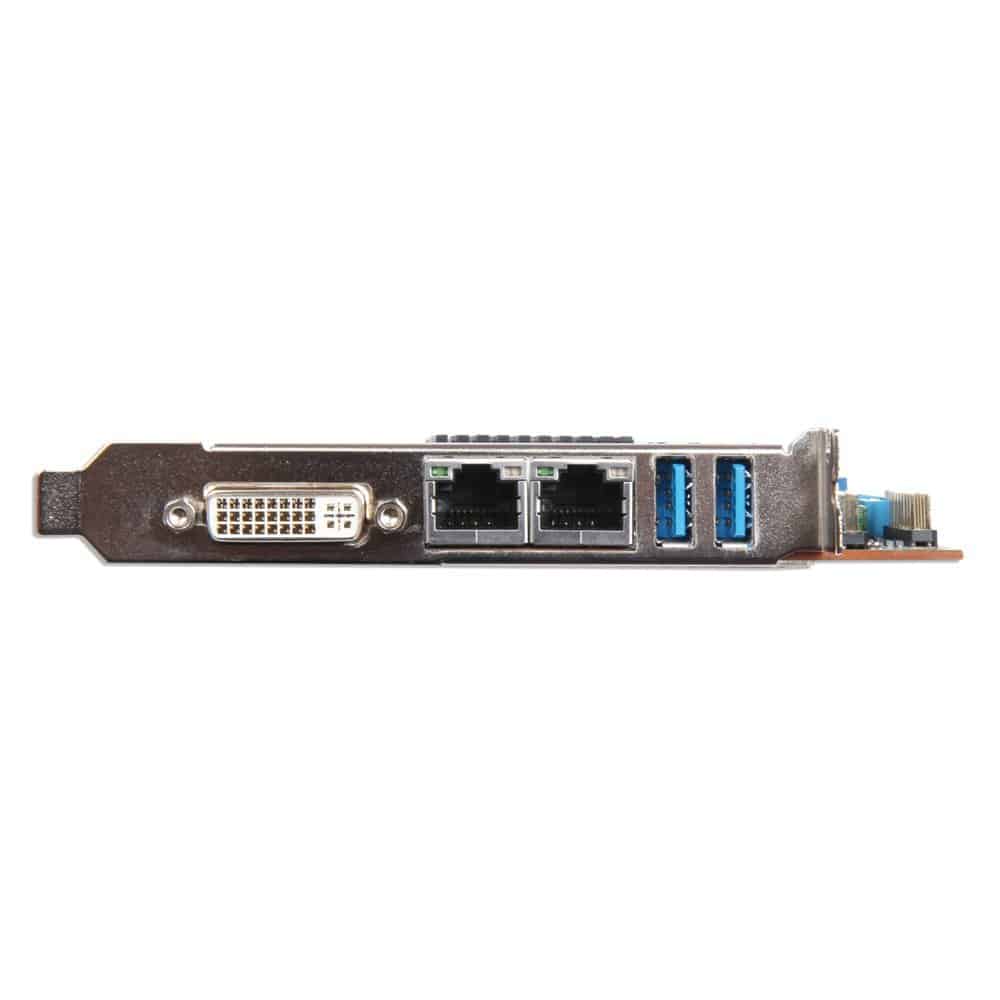

Display DVI-I / HDMI
Audio Realtek ALC886 HDA codec
LAN 2x GbE
Serial Port 2x RS-232 ports 2x RS-232/422/485
USB 8x USB3.2 Gen1 2x USB3.2 Gen2 4x USB2.0
Storage Devices 5x SATA III 1x M.2 Type M 2280
GPIO 8 bit
Others PS2/KB & MS
Dimension 338.5 x 126.39mm

订购指南

Ordering Guide
AB1-3J28 ROBO-8114VG2AR. PICMG 1.3(PCI-E+PCI).LGA1151. C246 PCH. Intel Xeon/Core i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports

包装清单

Packing List
Standard TBD Installation CD
B6902352 dual head COM port cable with bracket
B6903351 DVI-D + VGA cable
B8981980 PICMG SBC Handling and Installation Notice
B6902932 SATA III cable
Optional B6903090 USB 3.0 cable with bracket
B6902980 PS/2 Keyboard / Mouse Cable with bracket
B6902230 USB port cable with bracket
