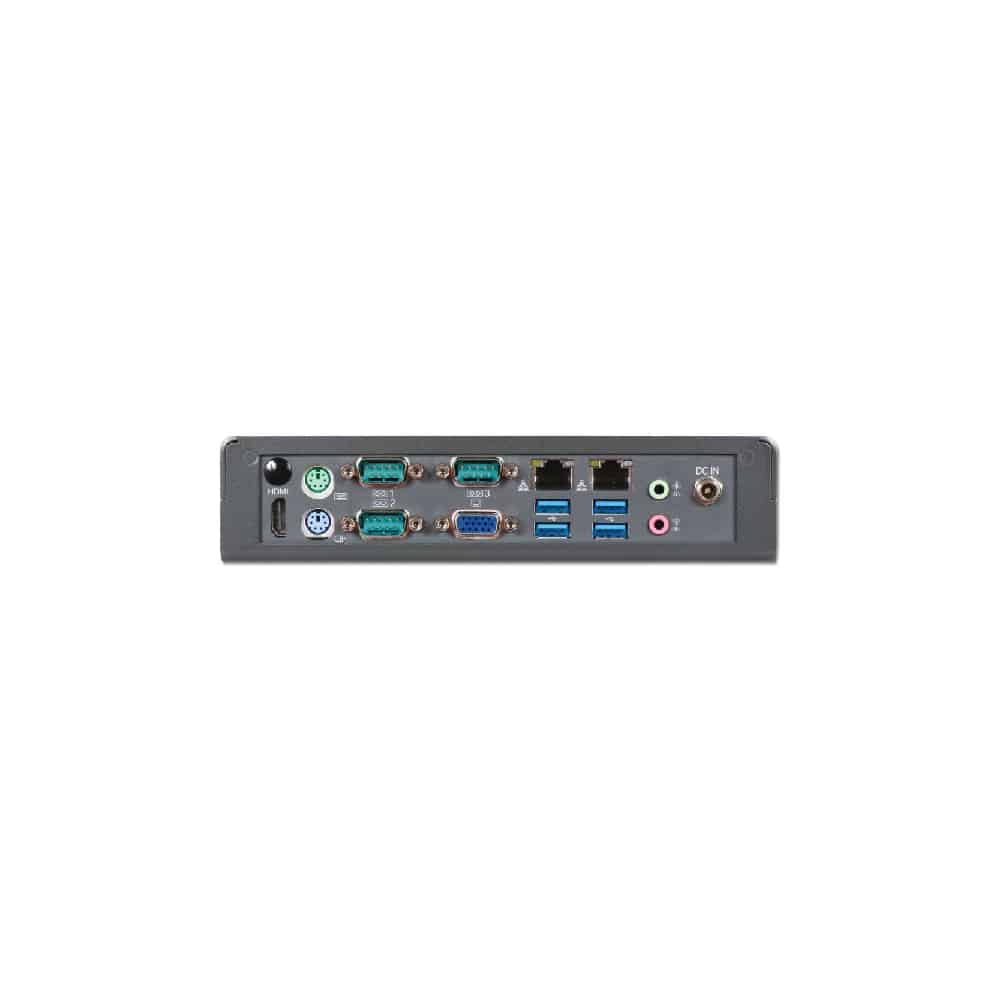

RICH-33B0-8171-S

Embedded Rugged Fan-less System with Intel® Celeron® Processor based Mini-ITX Board

产品特色

  • Fan-less system
  • Intel® Celeron® Processor N3150 support
  • Dual channel SO-DIMM socket up to 8G DDR3L memory
  • 1x mSATA, 1x 2.5” SATA HDD/SSD (Option)
  • 3x RS-232/422/485, 4x USB3.0
  • Dual Gigabit Ethernet Ports
型录下载
业务服务需求
产品支持服务

产品描述

The RICH-33B0-8171-S builds on Intel® Celeron® Processor N3150 , that can support dual channel DDR3L memory, support dual Gigabit Ethernet ports, one mSATA socket and one Mini-PCIe socket. The RICH-33B0-8171-S is ideal platform with rich I/O and high resolution for automation, POS, kiosk and digital signage applications.

规格

Model RICH-33B0-8171-S
M/B WADE-8171
Form Factor Mini-ITX
System
CPU Intel® Celeron® N3000 Series Processor
Chipset Intel® SoC
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® HD Graphics Family
Audio Codec ALC887
Super I/O Nuvoton NCT6106D
Storage 1x 2.5″ SATA HDD/SSD 1x mSATA
External I/O
Serial 3x RS-232/422/485
USB 4x USB3.0
Display VGA, HDMI
Ethernet Realtek RTL8111G x 2
PS/2 K/B x1, Mouse x1
Audio Line-out, Mic-in
D I/O N/A
Expansion 1x Full-size Mini-PCIe
PWR
System DC 12V ~ 24V
Environment
OP Temp. 0°C ~ 50°C
Storage Temp. -20°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 200 x 200 x 45 mm
Weight 2 Kg

订购指南

Ordering Guide
AS5-3445 (R).RICH-33B0-8171 Standard. w/COMx3/USBx4/Dual LAN/PS2/Audio
