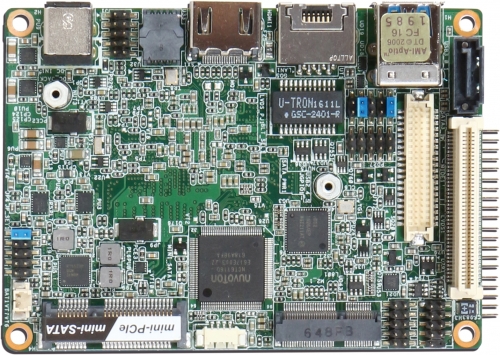

PICO-6260

Intel® Apollo Lake Atom® Processor based PICO-ITX embedded Board with DDR3L SDRAM, Gigabit Ethernet, HDMI, LVDS, mini-PCIe socket and 12V

产品特色

  • Supports Intel® Apollo Lake series processor
  • Supports DDR3L-1866/1600 non-ECC memory on one SO-DIMM slots, up to 8GB
  • Supports HDMI, and Dual channel 24bit LVDS
  • Supports Mini-PCIe / mSATA ( Mini-PCIe slot), and M.2 (E Key) socket
  • Supports 2*COM ports(COM1 supports RS-232/422/485,COM2 supports RS-232)
业务服务需求
产品支持服务

产品描述

The PICO-6260 is a palm-sized fanless pico-ITX motherboard built with the latest 14 nm Intel® Pentium® or Celeron® processor (codename: Apollo Lake SoC). Support for two USB3.0 ports ensures fast data transmission with low-power consumption and support two com port to allow quick and flexible system expansions. Intel® I210IT Gigabit Ethernet controllers provide dual Gigabit Ethernet LAN access via the one RJ45 ports. PICO-6260 can design their own unique systems for Panel PC, Kiosk and Digital Signage applications.

规格

Specifications
MODEL PEB-6260
Form Factor PICO-ITX
CPU Intel® Atom® N3350 Family
Chipset N/A
BIOS AMI UEFI
Memory Support up to 8GB DDR3L 1333/1600/1866 MH/z SDRAM on one 204 pin SO-DIMM socket
Expansion 1x mini-PCIe socket (support mSATA) 1x M.2 Type E slot
Display LVDS/HDMI
Audio Realtek ALC892 HDA codec
LAN 1x GbE
Serial Port 1x RS-232/422/485 1x RS232
USB 2x USB3.0 2x USB2.0
Storage Devices 1x SATA III
GPIO 8 bit
Others N/A
Dimension 100 x 72mm

订购指南

Ordering Guide
AB1-3F84 (R).PICO-6260. Intel Apolloe Lake SoC on Board.EBC. w/DDR3L/HDMI/GbE/COM/Audio/USB

包装清单

Packing List
One PEB-2773 Main board
One Installation CD
One SATA cable
