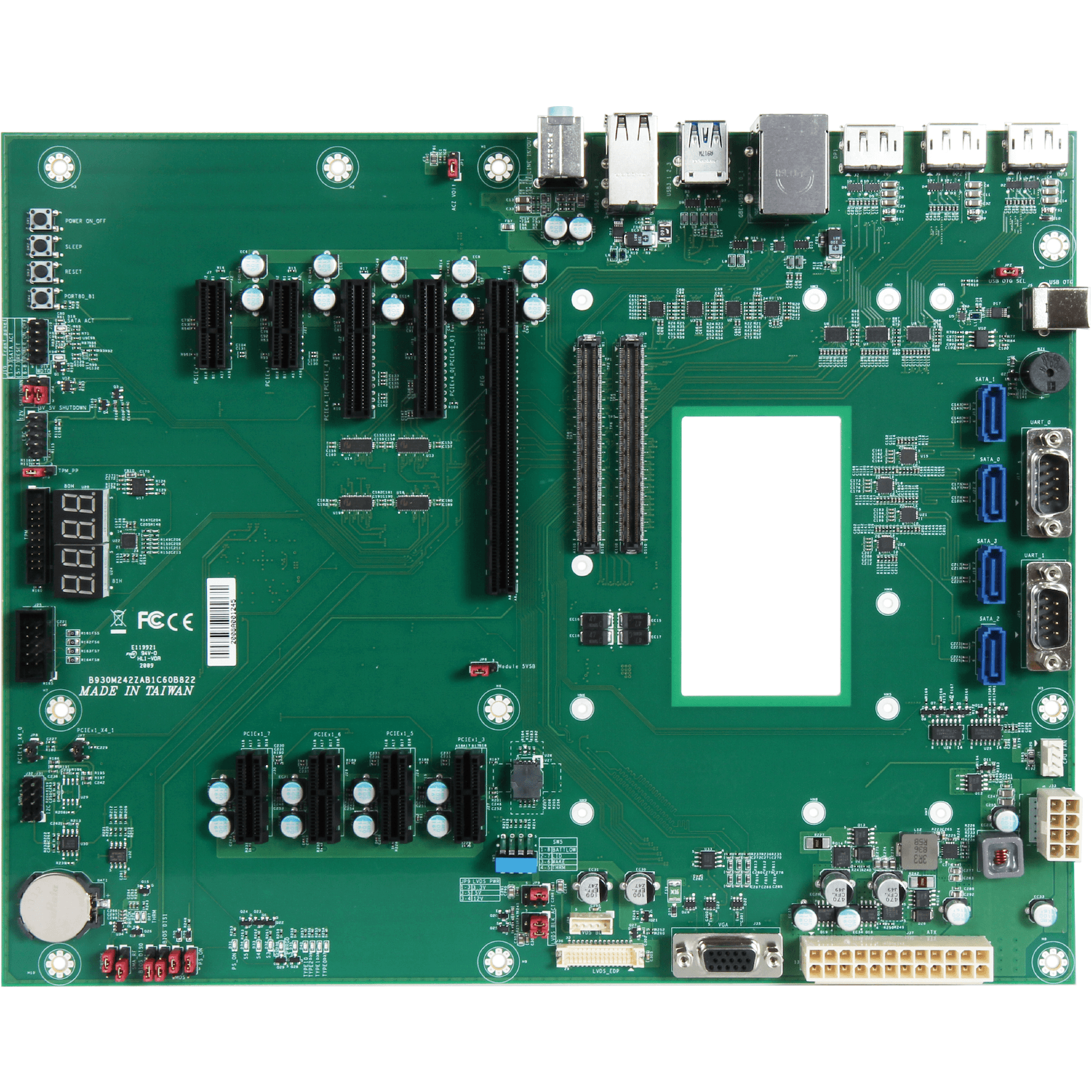

通过瑞传验证，PCOM-C60B可连接大部份Type 6 COM Express 3.0模块计算机。并且支持VGA、eDP/LVDS与DP与多样输入/输出扩充接口， 例如PEG, PCIe, USB3.2, SATAIII与2.5G以太网络。
| Model Name | PCOM-C60B |
| Form Factor (mm) | ATX (305 X 244mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | Depends on Module |
| Chipset | N/A |
| Graphic Controller | N/A |
| Memory | N/A |
| Storage | 4x SATA III |
| USB | 4x USB 3.2 Gen2 8x USB 2.0 |
| PEG | 1x PCIe 4.0 x 16 |
| PCI Express | 2x PCIe 3.0 x 4 6x PCIe 3.0 x 6 |
| Ethernet | 1x GbE |
| UART | 2x Serial Port(Tx/Rx) |
| Displays | VGA LVDS/eDP Display port x 3 |
| Audio | N/A |
| Operating Temperature | -40C° to 80°C |
| Module | COM-Express 2.1 COM-Express 3.0 |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-C60B | AB1-3G22Z | In Development |
| Accessory | Ordering P/N | Status |
|---|---|---|
| LVDS Cable | TBD | In Development |
| eDP Cable | TBD | In Development |
