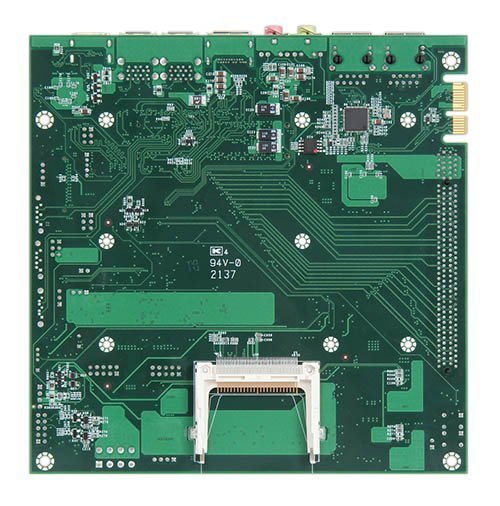

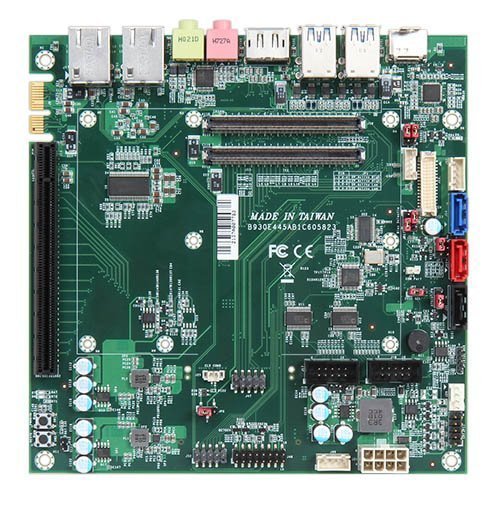

通过瑞传验证，PCOM-C605可连接大部份Type 6 COM Express 2.1模块计算机。并且支持VGA、LVDS、DP、HDMI与多样输入/输出扩充接口，例如PEG, PCIe, USB3.0, SATAIII与CFEX。
| General | |||
| Form Factor | Type 6, Mini-ITX (170 x 170 mm) | ||
| I/O Interface | |||
| SATA | 1 x CFEX 1 x SATA III, 2 x SATA II |
||
| USB | 4 x USB 3.0, 4 x USB2.0 | ||
| Ethernet | 2 x GbE | ||
| Serial I/O | GPIO | 8 bit GPIO | |
| I2C | Based on module desing | ||
| SMBus | Based on module desing | ||
| UART | 2 x Serial Port (SuperI/O, RS232) 1 x Serial Port (Tx/Rx) |
||
| PEG | 1 x PCIe x 16 (Gen3) | ||
| PCI Express | 2 x PCIe x 1 Golden Finger | ||
| Display | Default | Options | Resolution |
| VGA | VGA | ||
| LVDS | 24bit dual channel LVDS | ||
| DDI0 | DP | ||
| DDI1 | HDMI | ||
| Security | Depends on module | ||
| Mechanical & Environment | |||
| Dimension | 170mm x 170mm | ||
| Power DC IN | Support ATX power supply | ||
| Storage Temperature | -40°C to 80°C | ||
| Operation Temperature | -40°C to 80°C | ||
| Certification | Contact us | ||
| MTBF | Over 100,000 hours at 40°C | ||
| Vibration | TBD | ||
| OS | Depends on module | ||
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-C605 | AB1-3998 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| VGA Cable | B7864720 | Available |
| LVDS Cable | TBD | In Development |
