PCOM-B65B

Intel^®PTL-H; 4P+8E+4LPE; 12Xe GPU (120 TOPS), NPU 5 (50 TOPS); 2x DDR5 SO-DIMM to 128GB IBECC; 12 PCIe Gen4 lanes; USB3.2, SATA, DDI, eDP/LVDS; MIPI-CSI

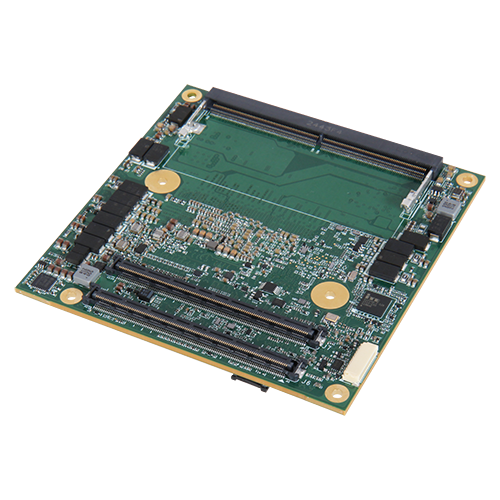

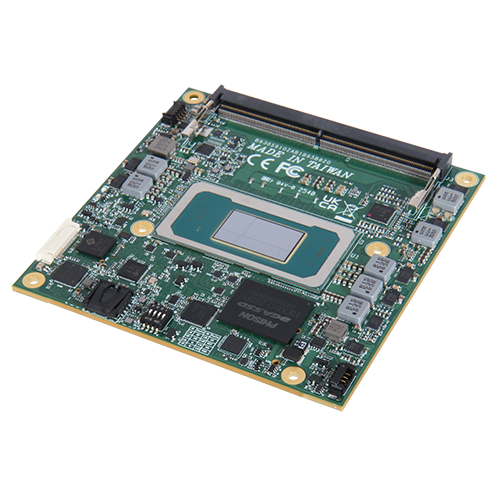

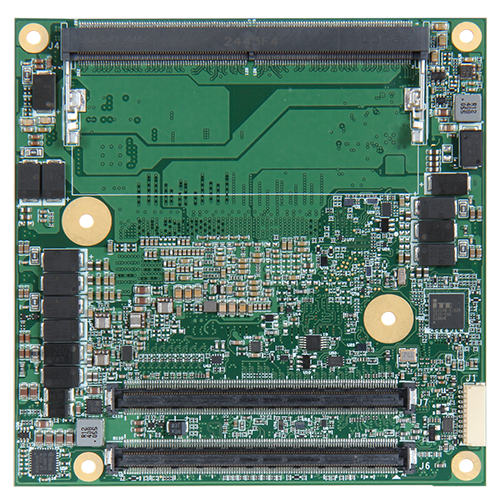

PCOM-B65B

PCOM-B65B - 图片 2

PCOM-B65B - 图片 3

PCOM-B65B - 图片 4

Features

Intel^®New Gen Core ultra processor ( Panther Lake-H ) 15W~65W
Up to 4 P-cores + 8 E-cores + 4 LPE cores
Support up to 12Xe GPU (120Tops) and NPU 5 (50 Tops)
2x DDR5 SO-DIMM support IBECC, up to 128GB/7200 MT/s
Support up to 12 PCIe Gen4 Lane
4x USB3.2 Gen2, 2x SATA, 3x DDI, eDP/LVDS
Options for onboard PCIe NVMe SSD
Support 1x MIPI-CSI connector on module

Model	PCOM-B65B
Form Factor	COM Express Type 6 Compact Size (95 mm x 95 mm)

General
CPU	Intel^®Core Ultra X9 388H	Intel^®Core Ultra X7 368H	Intel^®Core Ultra X7 358H	Intel^®Core Ultra 5 338H	Intel^®Core Ultra 7 365RE	Intel^®Core Ultra 7 365	Intel^®Core Ultra 7 355	Intel^®Core Ultra 5 325
Core/Thread	16	16	16	12	8	8	8	8
Based Frequency	2.1 GHz	2.0 GHz	1.9 GHz	1.9 GHz		2.4 GHz	2.3 GHz	2.1 GHz
Turbo Frequency	5.1 GHz	5.0 GHz	4.8 GHz	4.8 GHz		4.8 GHz	4.7 GHz	4.5 GHz
Cache	18 MB	18 MB	18 MB	18 MB	18 MB	18 MB	12 MB	12 MB
TDP	25 W	25 W	25 W	25 W	25 W	25 W	25 W	25 W
Graphics EU	12Xe	12Xe	12Xe	10Xe	4Xe	4Xe	4Xe	4Xe
Graphics Max Freq.	2.5GHz	2.5GHz	2.5GHz	2.4GHz		2.6GHz	2.5GHz	2.45GHz
Memory Type/Speed	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s	2x DDR5 SO-DIMM up to 128GB 7200MT/s
ECC Memory Support	IBECC	IBECC	IBECC	IBECC	IBECC	IBECC	IBECC	IBECC
Temperature Range	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	-40 ~ 85 °C (-40.0 ~ 185.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)
BIOS	AMI uEFI BIOS
ECC	board
Storage	PCIe(NVMe) up to 256GB
Memory	2 x SO-DIMM DDR5 up to 128GB 7200 MT/s

I/O Interface
SATA	2 x SATA III (Share w/ PCIe)
USB	4 x USB 3.2 Gen2
USB	8 x USB 2.0
Ethernet	1 x 2.5 Gbe LAN (Share w/ PCIe)
PCIe	1 x PCIe Gen4 x4
	1 x PCIe Gen4 x1 (Share w/ SATA)
	1 x PCIe Gen4 x1 (Share w/ LAN)
	6 x PCIe Gen4 x1
Legacy I/O	8 x GPIO
Legacy I/O	2 x UART
Security	TPM 2.0
Display	eDP / LVDS eDP up to HBR3
	eDP / LVDS LVDS (24bit, dual channel)
	DDI 1/2/3 DP up to HBR3

ME/Environment
Dimension	95 mm x 95 mm (3.74” x 3.74”)
Operating Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
OS	Linux, Windows 11
Portwell Special Feature	PET
