Portwell » 产品 » 模组化电脑 » COM Express » PCOM-B636VG

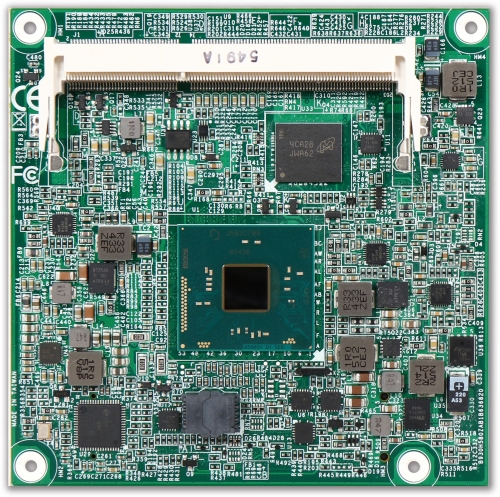

PCOM-B636VG

Intel® AtomTM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.Intel® AtomTM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.

产品特色

  • ntel® Pentium/Celeron Dual/Quad CoreN3000 series processor
  • Support DDR3L-1600/1333 SDRAM on SODIMM slots, up to 8GB
  • Support VGA, LVDS and Display-port interface
  • Support USB 2.0/ 3.0, SATA, 4 PCIE x1 and 1 PCIEx4
  • Support eMMC 4.51 storage
  • Support I2C/Smart Battery function
业务服务需求
产品支持服务

产品描述

Intel® AtomTM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.

Portwell PCOM-B636VG is designed with Intel® Celeron® and Pentium® Processor N3000 Series ultra low power processor with higher memory performance and advance graphic controller which offer better display resolution and efficient power consumption suitable for HMI system.

订购指南

Ordering Guide
AB1-3E73 (R).PCOM-B636VG-N3710.TYPE VI. Atom N3710 Quad Core 1.6GHz.Compact Form Factor.COM Express Module/EC
AB1-3E74 (R).PCOM-B636VG-N3160.TYPE VI. Atom N3160 Quad Core 1.6Hz.Compact Form Factor.COM Express Module/EC/LVDS
AB1-3F40 (R).PCOM-B636VG-N3060.TYPE VI. Atom N3060 DualCore 1.6GHz.Compact Form Factor.COM Express Module/EC/LVDS
AB1-3F41 (R).PCOM-B636VG-N3010.TYPE VI. Atom N3010 DualCore 1.04GHz.Compact Form Factor.COM Express Module/EC/LVDS
