PCOM-B630VG
Menu

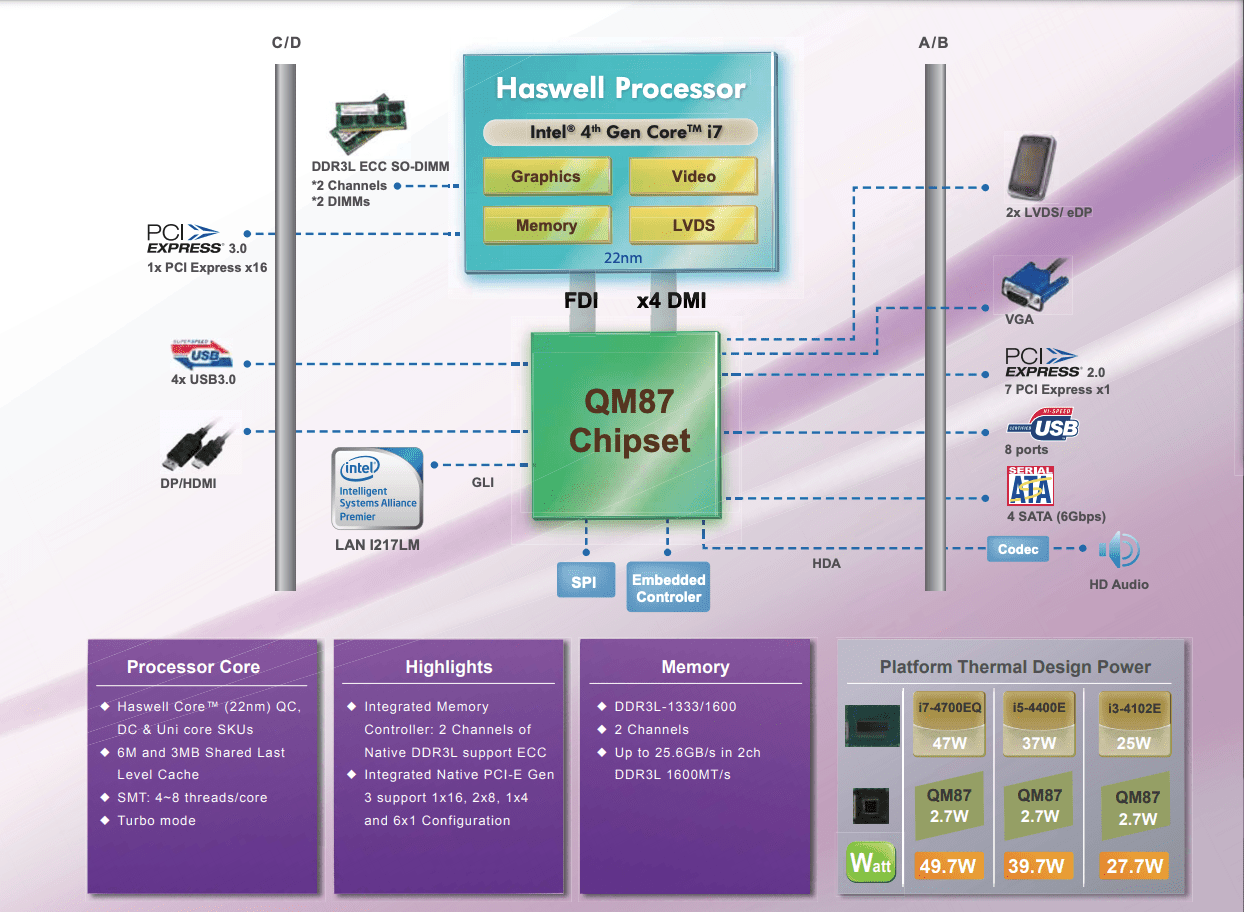

Intel® 4th Generation Core™ i7 Processor based on Type VI COM Express module with DDR3L SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB
PCOM-B630VG can offer high computing power by Quad Core processor brings quad core technology and provides significant performance improvement. 6Gb/s SATA enhances performance ability. We also provide SOL, IDER, Serial over Lan and Remote control functions in PCOM-B630VG by Intel iAMT 9.0 support. Now, Mutil processor, RAID support and remote control functions are all in PCOM-B630VG. Using PCOM-B630VG to develop your high-end server is the best choice.
| Processor | Intel Core i5/i7 processor in BGA package DMI x4 link: 5.0GT/s Support Intel Turbo boost, hyper-treating and configurable cTDP (on 17watts/25watts CPU SKUs) |
| Chipset | Intel QM87 PCH |
| BIOS | Pheonix UEFI BIOS AMI UEFI BIOS |
| Memory | Support up to 16GB DDR 1333/1600 SDRAM on two 204pin SO-DIMM |
| Storage Devices | 6x SATA ports (up to 6Gbps) |
| Watchdog Timer | Programmable by embedded controller |
| Expansion Interface | 1x PCI-Express x16 Gen 3, up to 8GT/s |
| AB1-3920 | Shark Bay QM87, Type 6, ECC Core i7 i7-4700EQ (4C, 2.4GHz, 47Watts) |
| AB1-3A00 | Shark Bay QM87, Type 6, ECC Core i5 i5-4400E (2C, 2.7GHz, 37Watts) |
| AB1-3A01 | Shark Bay QM87, Type 6, ECC Core i5 i5-4402E (2C, 1.6GHz, 25Watts) |
| AB1-3A03 | Shark Bay QM87, Type 6, ECC Core i5 i5-4100E (2C, 2.4GHz, 37Watts) with MOQ |
| AB1-3A03 | Shark Bay QM87, Type 6, ECC Core i3 i3-4102E (2C, 1.4GHz, 25Watts) with MOQ |
