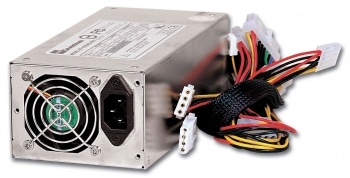

ORION-B3501P

350W 2U ATX power supply with active PFC

产品特色

  • 2U ATX power supply suitable for 2U and larger chassis
  • Active PFC, full-range input
  • Support Intel® Pentium® 4 processor
  • Max. +5V standby output is 2A
  • Max. +12V load output is 25A

规格

Specifications
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current Efficiency
10A@115V, 6A@230V > 67%
Holdup Time 16 ms at full load
Over Voltage Protection +5V: 6.5 ~ 7.0V; +3.3V: 4.5V; +12V: 14.5V
Over Power/ Load Protection Output power over 110% ~ 150%
MTBF 100,000 hrs
EMI & Safety Approval UL, CB, TUV, CE, FCC
Temperature/ Humidity Operating: 0 ~ 40°C, 20 ~ 90%RH Storage: -20 ~ 60°C, 5 ~ 95%RH
Dimension (WxDxH) 200 x 100 x 70 mm; 7.87” x 3.94” x 2.8”

订购指南

Ordering Guide
ORION-B3501P 350W 2U ATX power supply with active PFC
