NANO-6064

NANO-6064 - 图片 2

NANO-6064 - 图片 3

NANO-6064

NANO-ITX 主板搭载 Intel Atom^® x7000E Series SoC 并具备 Triple Display、2.5GbE LAN、USB 3.2 Gen2、 M.2、SATA III

产品特色

Support low-power Intel Atom^® x7000E Series SoC and high-performance Intel^® i3 N-Series SoC
Up to 16GB DDR4 3200MT/s non-ECC SO-DIMM
Support multiple displays via HDMI, DP, LVDS
High-speed I/O with dual 2.5GbE and four USB 3.2 Gen2
Multiple expansions with M.2 E Key and B Key
Support on-board TPM 2.0

产品描述

NANO-6064采用最新Intel Atom^® x7000E/ Intel^® Processor N-Series/Intel^® Core™ i3 N-Series。该处理器带来更高运算与图像处理效能，使NANO-6064适合需高效率的物联网应用，例如医疗、零售、数字广告牌。

规格

Specifications
General
Processor	Intel Atom^® x7000E Series Proeessor (up to 12W) Intel^® Processor N-Series Intel^® Core^TM i3 N-Series Processor (up to 15W)
BIOS	AMI UEFI BIOS
Memory	1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB Supports In-Band ECC
Storage Devices	1x SATA III 1x M.2 B Key 2280(SATA III) Micro SD socket
Watchdog Timer	Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs
Hardware Monitoring	System monitor(Voltage,Fan Speed and Temperature)
Expansion Interface	1x M.2 E Key 2230 1x M.2 B Key 3052+2280 (share with M.2 2280 SATAIII socket)

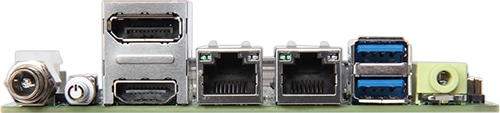

I/O INTERFACE
Audio	HDA controller intergated in Intel^® SoC Realtek ALC897 HDA codec Audio jack on rear I/O (line-out) On board pin header (line-in, line-out, mic-in)
Ethernet	2x Intel^® 2.5GbE Controller (I225-LM) 2x RJ45 connectors on rear I/O
Serial port	1x RS-232/422/485 port (selectable via BIOS)
USB	2x USB 3.2 Gen2 on rear I/O 2x USB 3.2 Gen2 on board pin header (1x USB 3.2 Gen2 share with M.2 B key socket)
Other	TPM 2.0 on board 8x GPIO Support Real-time Performance – Intel^® TCC & TSN(only selected skus)

DISPLAY
Graphic Controller	Intel^® UHD Graphics Gen12 with up to 32 EUs
Display Interface	LVDS: 1x LVDS on board connector (Dual channel, 24bit, 1920×1200 @60Hz) HDMI: 1x HDMI port on rear I/O (HDMI 2.0b, 4096×2160 @ 60Hz) DP: 1x DP port on rear I/O (DP 1.4, 4096×2304 @ 60Hz)

Mechanical & Environment
Dimension	120mm(L) x 120mm(W), 4.72″(L) x 4.72″(W)
Power Supply	DC 12V inpurt
Environment	Operating temperature: 0°C~60°C Storage Temperature: -40°C~85°C Relative Humidity: 5~95%, non-condensing
MTBF	TBD

订购指南

AB1-3R12Z	(R).NANO-6064 Nano-ITX ESB. Intel Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI/DP/dual 2.5 GbE LAN/ micro SD
