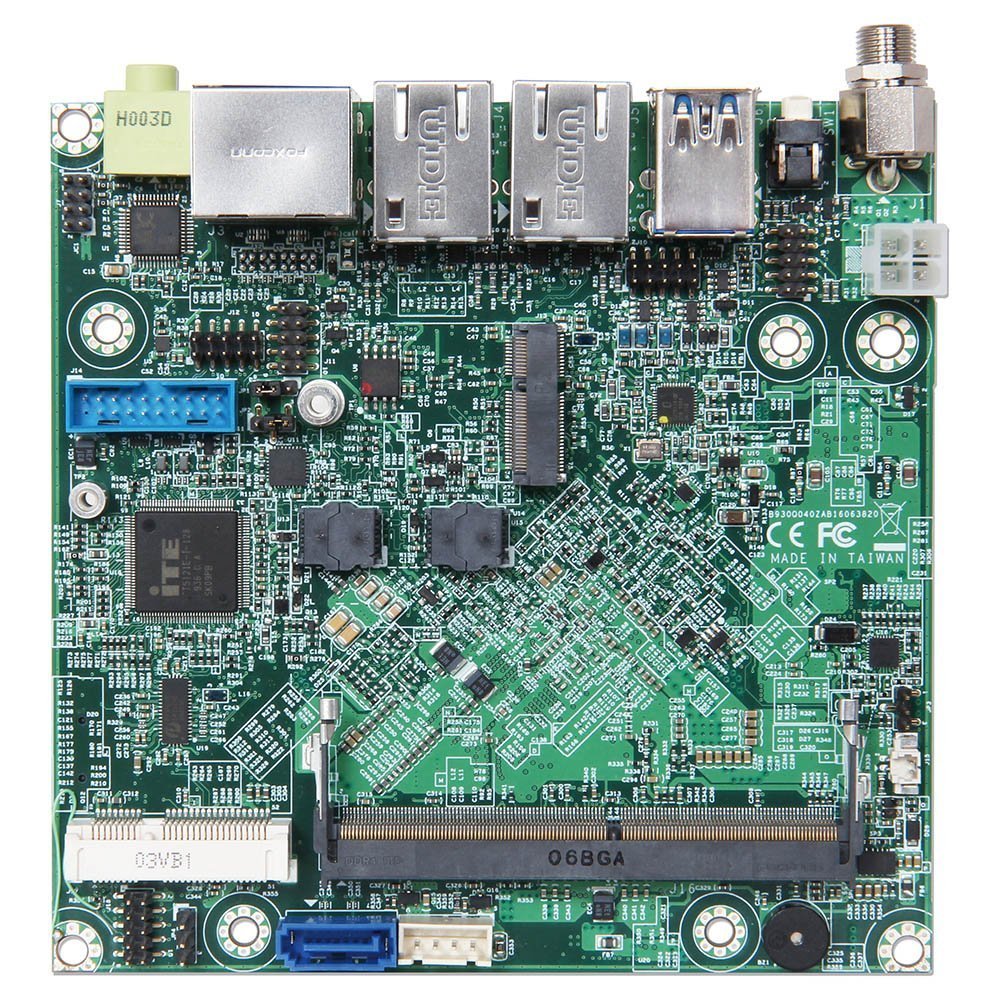

NANO-6063搭载英特尔凌动 x6000E 系列处理器。处理器支持工业温度40°C to85°C以及12瓦低功耗。与前一代 NANO-6062相比，它的系统扩充弹性适合用于医疗、触控计算机与交互式信息服务站应用。 双GbE局域网络(GPY-215与英特尔 I210IT)设计适合工业自动化与数字广告牌应用。
| General | |

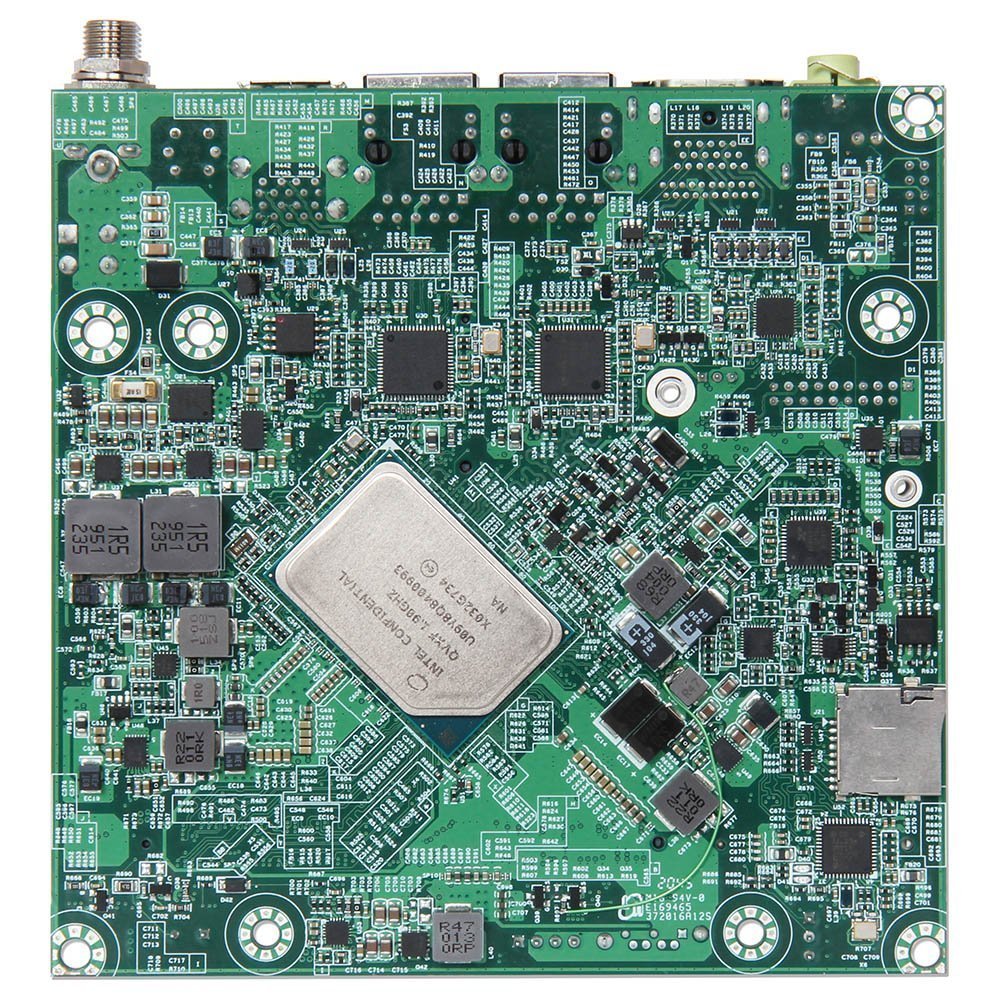

| Processor | – Intel Atom® Dual/Quad x6000E series processor (up to 12W) – Supports Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU sku) |
| BIOS | AMI UEFI BIOS |
| Memory | – 1x DDR4 3200MT/s non-ECC SO-DIMM up to 32GB – Supports In-Band ECC(only selected skus) |
| Storage Devices | – 1x SATA III – 1x mini-PCIe socket (select mSATA/mini-PCIe by BIOS) – Micro SD socket |
| Watchdog Timer | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs |
| Hardware Monitoring | System monitor(Voltage,Fan Speed and Temperature) |
| Expansion Interface | – 1x M.2 (E key) – 1x full size mini-PCIe socket (select mSATA/mini-PCIe by BIOS) |
| I/O INTERFACE | |
| Audio | – HDA controller intergated in Intel® SoC – Realtek ALC888S HDA codec – Audio jack on rear I/O (Line out) – On board pin header (Line in, Line out, Mic in) |

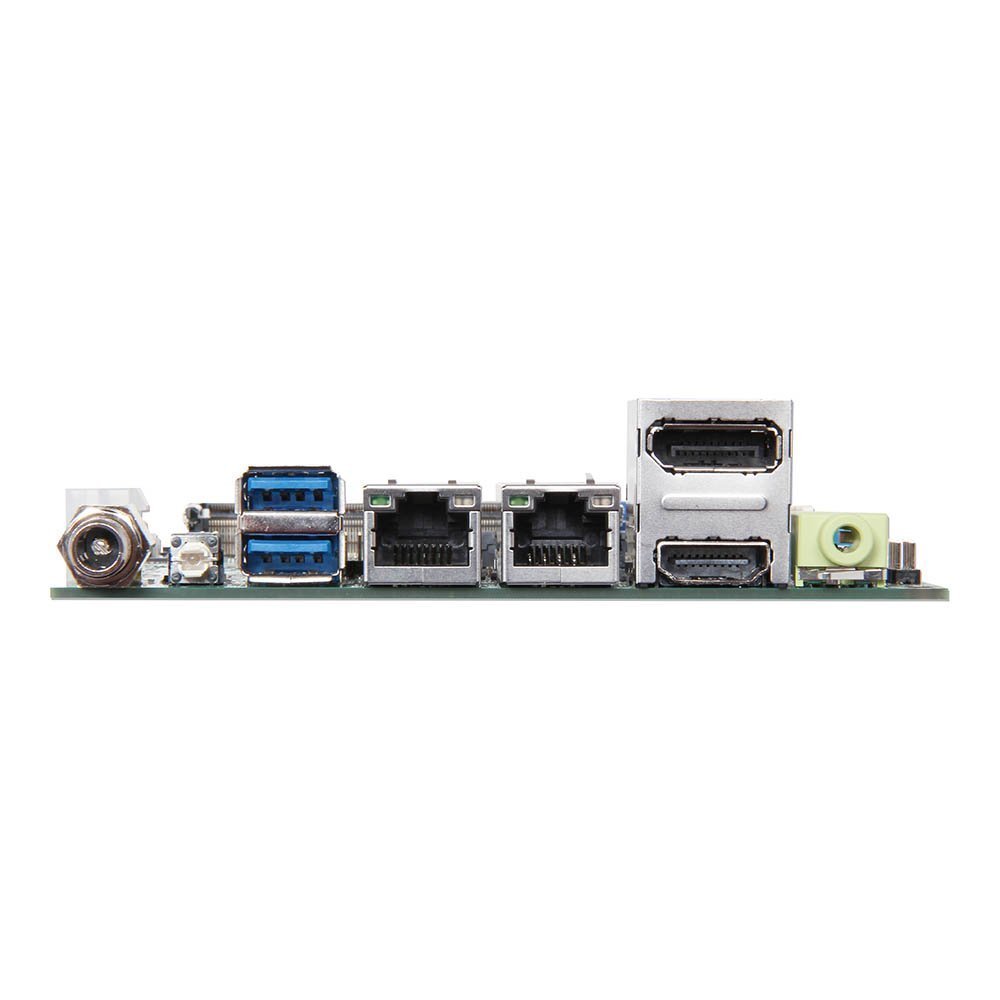

| Ethernet | – 1x Intel® GbE controller – 1x GPY-215 controller – 2x RJ45 connectors on rear I/O |
| Serial port | – 1x RS-232/422/485 ports selectable |
| USB | – 2x USB 3.2 Gen2 ports on rear I/O – 2x USB 3.2 Gen2 ports on board with header |
| Other | – TPM 2.0 on board – Supports Real-time Performance – Intel® TCC & TSN |
| DISPLAY | |
| Graphic Controller | Intel® Gen 11 graphics suports DirectX 12, OpenGL 4.5, Open GL ES 3.2, Vulkan |
| Display Interface | – HDMI: 1x HDMI port on reat I/O (HDMI 2.0b, 4096×2160 @ 60Hz) – DP: 1x DP port on rear I/O (DP 1.4 : 4096×2160 @ 60Hz) – VGA: 1x on board pin header, up to 1920×1200 |
| Mechanical & Environment | |
| Dimension | 120mm(L) x 120mm(W),4.72″(L) x 4.72″(W) |
| Power Supply | DC 12V inpurt |
| Environment | – Operating temperature:-40°C~85°C – Storage Temperature: -40°C~85°C – Relative Humidity: 5~95%, non-condensing |
| MTBF | Over 90,000hrs at 40°C |
| AB1-3K29 | (R).NANO-6063-x6425E (R).Nano-ITX ESB. Intel Elkhart Lake SoC. x6425E/DDR4 SO-DIMM/VGA/HDMI/DP/Dual GbE LAN/micro SD |
