NANO-6062搭载英特尔凌动E3900系列处理器。不仅有针对无风扇应用的12瓦以下热设计功耗，也支持工业温度-40°C to 85°C与12-14伏宽电压输入。支持四个USB3.0端口确保快速数据 传输与低耗能。双SATA III接口最高 6Gb/秒赋予系统扩充快速与弹性。双英 特尔千兆位以太网络控制器，透过双 RJ45端口提供两个千兆位以太网络局域 网络路径。
NANO-6062也可做成系统品以满足医疗、网通、触控计算机、交互式信息服务站与数字广告牌应用。
| General | |
| Processor | – Intel Atom® Dual/Quad Core E3900 series Processor (up to 12W) – 2MB Cache |
| BIOS | AMI UEFI BIOS |
| Memory | 1x DDR3L 1866/1600 MT/s non-ECC SO-DIMM up to 8GB |
| Storage Devices | – 1x SATA III port – 1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS) – 1x Micro-SD socket |
| Watchdog Timer | Programmable by embedded controller |
| Hardware Monitoring | – Temperature (CPU & System) – Voltage (CPU Vcore,12V, 5V, 3.3V, 1.35V) |
| Expansion Interface | – 1x M.2 socket (E key) – 1x full size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS) |
| I/O INTERFACE | |
| Audio | – High Definition Audio integrated in Intel® SoC – Realtek ALC892 HDA codec – Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line out, and Mic-in |
| Ethernet | – 2x Intel® I210IT GbE controller – 2x Dual RJ45 connectors on rear I/O |
| Serial port | – 1x RS-232/422/485 on board connector (selected by bios) |
| USB | – 2x USB 3.0 ports on rear I/O – 2x USB 3.0 ports on board with header |
| GPIO | 8bit configurable controlled by embedded controller |
| Other | TPM 2.0 on board |
| DISPLAY | |
| Graphic Controller | – Intel® Gen 9 Graphics supports DirectX 12, OpenGL® 4.2 / OpenCL® 2.0 – Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 |
| Display Interface | – LVDS: Dual channel 24bit LVDS on board connector, up to 1920×1200 – VGA: 1x DB-15 on board connector, up to 2560×1600 – DP: 1x DP port on rear I/O, up to 4096×2160 |
| Mechanical & Environment | |
| Dimension | 120mm(L) x 120mm(W) ; 4.72″(L) x 4.72″(W) |
| Power Supply | DC 12-24V input |
| Environment | – Operation Temperature: -40°C~85°C – Storage Temperature: -40°C~85°C – Relative Humidity: 5%~95%, non-condensing |
| Certification | CE, FCC Class B |
| MTBF | Over 100,000 hours at 40°C |
| AB1-3E89 | (R).NANO-6062-E3950 Nano-ITX ESB. Intel Atom® Quad Core 1.6GHz (12W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III |
| AB1-3G40 | (R).NANO-6062-E3940 Nano-ITX ESB. Intel Atom® Quad Core 1.6GHz (9W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III |
| AB1-3G41 | (R).NANO-6062-E3930 Nano-ITX ESB. Intel Atom® Dual Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III |

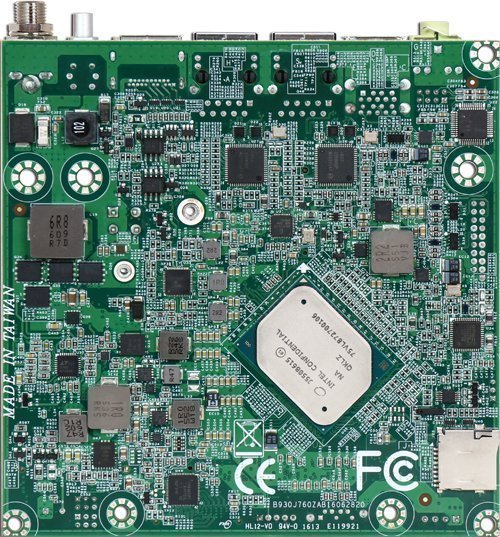

| One NANO-6062 NANO-ITX Main Board |
| One Passive Heat Spreader |
| One Installatuon CD |
