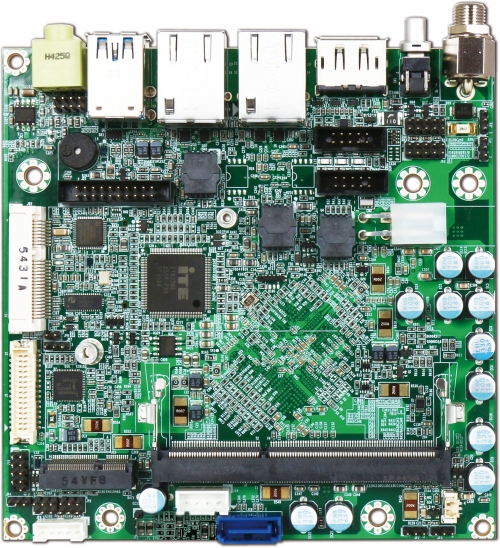

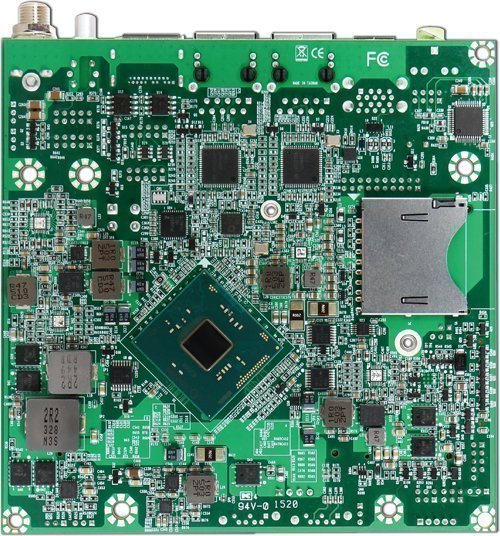

NANO-6061

Intel® Braswell Pentium®/Celeron® Dual/Quad Core N3000 series SoC based on NANO-ITX. Board with Triple Displays, GbE LAN, USB 3.0, M.2, SD,SATA III, and mSATA

产品特色

  • Intel® Pentium®/Celeron® Dual/Quad Core N3000 series SoC based platform
  • Supports one DDR3L 1600/1333 SODIMM up to 8GB
  • Supports Triple display by VGA, DP, and dual channel 24 bit LVDS
  • Supports One M.2 socket, SATA III port, and mSATA socket
  • Supports One SD socket
  • Supports DC 12V input
型录下载
业务服务需求
产品支持服务

产品描述

NANO-6061 build with Intel® Celeron® and Pentium® processor N3000 series that not only is it suitable for under 6W fan-less application but also powerful graphic display demand. With its superior up to Quad core processing power and high capability, the new architecture integrates more powerful 3D graphics engine and memory controller making it suitable for critical environments.

规格

Specifications
MODEL NANO-6061
Form Factor NANO-ITX
CPU Intel® Pentium®/Celeron® N3000 Family Intel
Chipset N/A
BIOS Phoenix UEFI
Memory 1x DDR3L SO-DIMM up to 8GB
Expansion 1x M.2 socket (E key)
Display VGA/LVDS/DP
Audio Realtek ALC892 HDA codec
LAN 2x GbE
Serial Port 1x RS-232/422/485
USB 1x USB 2.0 2x USB 3.0
Storage Devices 1x SATA III 1x mSATA 1x SD socket
GPIO 8 bit
Dimension 120x 120mm

订购指南

Ordering Guide
AB1-3D89 (R).NANO-6061-N3710. Nano-ITX ESB. Intel® Pentium® Quad Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ GbE LAN/ M.2/ SATA III
AB1-3D88 (R).NANO-6061-N3160. Nano-ITX ESB. Intel® Celeron® Quad Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ GbE LAN/ M.2/ SATA III
AB1-3D88 (R).NANO-6061-N3060. Nano-ITX ESB. Intel® Celeron® Dual Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ GbE LAN/ M.2/ SATA

包装清单

Packing List
One NANO-6061 NANO-ITX Main Board
One Passive Heat Spreader
One Installation CD
