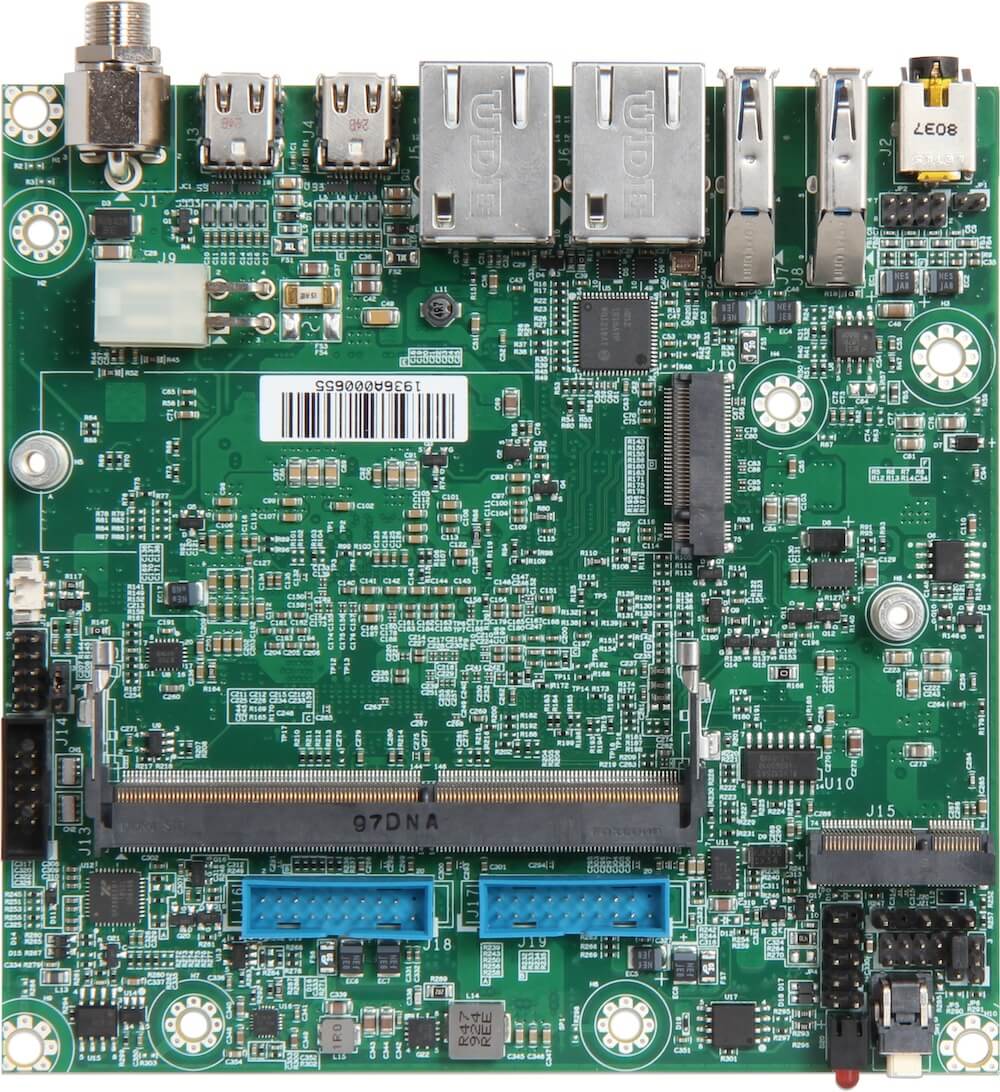

NANO-6051

Intel® 8th Generation Core™ i5/i3 Processors based on NANO-ITX Board with mini DP, GbE LAN, USB 3.2, M.2 and Combo Audio jack

产品特色

  • Intel® 8th Gen Core™ i7, i5 and i3 processor
  • Supports one DDR4 2400 non-ECC SODIMM up to 32GB
  • Supports Dual mini DP ports
  • Supports one M.2 Type M, one M.2 Type E, two USB 3.1 and four USB 3.0 ports
  • Supports DC 12V input
  • Supports TPM 2.0 (On board)
型录下载
业务服务需求
产品支持服务

产品描述

NANO-6051 build with Intel® 8th Generation Core™ i7/i5/i3 Processors and takes advantages of Intel® Core™ mobile processor technologies such as Hyper-Threading, high performance, and low power consumption. Portwell NANO-6051-based systems are ideal for passively cooled and hermetically sealed systems that can be used in various environments. NANO-6051 is an ideal platform with HD graphic output for POS, kiosk, digital signage and transportation applications.

规格

Specifications
General
Processor – Intel® th Gen Core™ i5/i3 processor – With 4MB Cache – Support Intel® Hyper – Threading Technology, Virtualization Technology (VT-x), Small Business Advantage
BIOS AMI uEFI BIOS
Memory 1x DDR4 2400 non-ECC SO-DIMM up to 32GB
Storage Devices N/A
Watchdog Timer Programmable by embedded controller
Hardware Monitoring – Temperature (CPU & System) – Voltage (CPU Vcore, 12V, 5V, 3.3V, RAM)
Expansion Interface – 1x M.2 Type M 2280 socket – 1x M.2 Type E 2230 socket

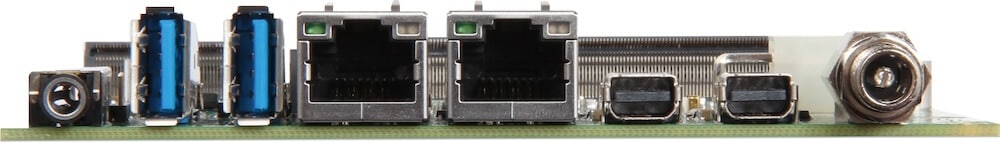

I/O INTERFACE
Audio – HDA controller integrated in Intel® SoC – Realtek ALC888S HDA codec – Audio Combo Jack on rear I/O with Line-out/Mic in and on board pin header with Line-in, Line-out, Mic-in
Ethernet – Intel® I210AT and Intel® I219LM ethernet controller – 2x RJ45 connector on rear I/O
Serial port 1x RS-232/422/485 on board connector (selected by bios)
USB – 2x USB 3.2(Gen2) ports on rear I/O – 4x USB 3.2(Gen1) ports on board
GPIO 8-bit configurable controlled by embedded controller
Other N/A
DISPLAY
Graphic Controller – Intel® HD Graphics 5500/6000 supports DirectX11.2, OpenGL 4.3 / OpenCL 2.0 – Video decode HW acceleration support for H.264/AVC, VC-1, MPEG2, VP8
Display Interface 2x Mini DP on Rear I/O, up to 3840×2160
Mechanical & Environment
Dimension 120(L) x 120(W) mm; 4.72″(L) x 4.72″(W)
Power Supply DC 12V input
Environment – Operation Temperature: 0°C to 60°C – Storage Temperature: – 20°C to 85°C -Relative Humidity: 5% to 95%, non-condensing
Certification CE,FCC Class A
MTBF Over 100,000 hours at 40°C

订购指南

Ordering Guide
AB1-3J58 (R).NANO-6051-8145UE Nano-ITX ESB. Intel Core i3-8145UE 2.2GHz Dual Core.w/DDR4 SO-DIMM/two mini DP/dual GbE LAN/USB/M.2
AB1-3J57 (R).NANO-6051-8365UE Nano-ITX ESB. Intel Core i5-8365UE 1.6GHz Quad Core.w/DDR4 SO-DIMM/two mini DP/dual GbE LAN/USB/M.2
AB1-3J56 (R).NANO-6051-8665UE Nano-ITX ESB. Intel Core i7-8665UE 1.7GHz Quad Core.w/DDR4 SO-DIMM/two mini DP/dual GbE LAN/USB/M.2

包装清单

Packing List
One NANO-6051 NANO-ITX Main board
One Passive Hear Spreader
One Installation CD
