| Model | MEDS-5210 | ||||
|---|---|---|---|---|---|
| Sys Form Factor | Proprietary | ||||
| General | ||||||
|---|---|---|---|---|---|---|
| Processor | NVIDIA® Jetson AGX Orin™ 32G (8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3) | NVIDIA® Jetson AGX Orin™ 64G (12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3) | ||||
| Memory | Support up to 64GB 256-bit LPDDR5 on board | |||||
| Storage | 1 x M.2 Key-M NVMe PCIe x4 2280 | |||||
| 1 x eMMC 64G on board | ||||||
| Graphic Controller | NVIDIA® Ampere® GPU 1792 NVIDIA CUDA cores and 56 Tensor ensorcores Ray-Tracing cores, NVIDIA® Ampere® GPU 2048 NVIDIA CUDA cores and 64 Tensorcores Ray-Tracing cores | |||||

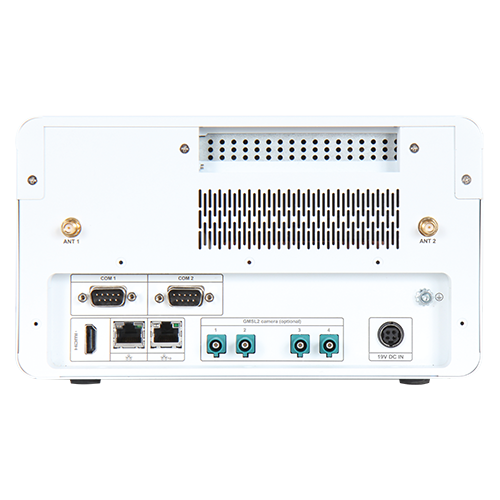

| System I/O | ||||||
|---|---|---|---|---|---|---|
| Audio | 1 x Audio Jack Line-out on Front | |||||
| 1 x Audio Jack Mic-in on Front | ||||||
| Ethernet | 1 x GbE | |||||
| 1 x 10 GbE | ||||||
| Serial Port | 2 x Isolated DB9 COM Ports Support RS-232/422/485 | |||||
| USB | 6 x USB 3.2 Gen1 Type A on Front | |||||
| 2 x USB 3.2 Gen1 Type C on Front | ||||||
| GPIO | 1 x 8-bit Digital I/Os on Board Pin Header | |||||
| Display | 1 x HDMI® 2.1 4096 x 2160@60Hz | |||||
| Other | Power Button with LED Indicater on Front, Reset Button on Front, Recovery Button on Board, JTAG Header on Board, RTC battery on Board, Grounding Stud | |||||
| Antenna | 2 x SMA Antenna holes for Wi-Fi / BT | |||||
| Video Input | 4 x Fakra-Z GMSL2 Camera (Optional) | |||||
| Expansion I/O | ||||||
|---|---|---|---|---|---|---|
| PCIe | 1 x slot with PCIe x8 PCIe x4 | |||||
| Ethernet | 1 x 1 GbE Lan | |||||
| 1 x 1 x10 GbE Lan | ||||||
| Power Supply | 4Pin-DIN Jack 19V | |||||
| M.2 | 1 x E Key w/ 2230 PCIe x1 and USB 2.0 for WiFi/BT module | |||||
| ME/Environment | ||||||
|---|---|---|---|---|---|---|
| Dimension (WxDxH) | 235 x 188 x 120 mm (9.25″ x 7.40″ x 4.72″ ) | |||||
| Weight | 3.5 kg | |||||
| Power Supply | DC Jack 19V with 150W Medical-grade power adapter | |||||
| Mounting | Desktop | |||||
| Operating Temperature | 0 ~ 40 °C (32.0 ~ 104.0 °F) | |||||
| Storage Temperature | -40 ~ 80 °C (-40.0 ~ 176.0 °F) | |||||
| Cooling | CPU 1 x Cooler | |||||
| System 1 x Fan | ||||||
| BSP | 6.2 | |||||
| OS | Linux (NVIDIA JetPack OS) | |||||
