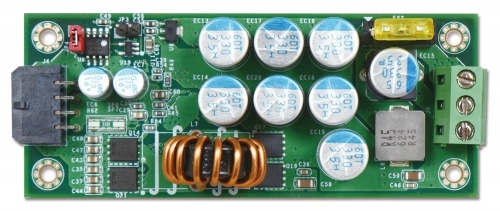

GADIWA-R9142

140W DC/DC 9~32V input/ 24V output Board type Regulator

产品特色

  • 9~32V/Wide-input, 24V/output Regulator with ATX connector with board output
  • Compact and user-friendly design for installation and maintenance
  • Fan-less design for mission-critical application
  • -40°C to 75°C wide temperature support

产品描述

GADIWA-R9142 is a DC to DC 9V~32V input to 24V output board type Regulator. It normally support continuous 140 Watts and peak 160 Watts. GADIWA-R9142 can save more space, less than 1U width, and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance. production line; therefore, it can provide high quality and performance.

规格

Specifications
Input Voltage 9V~32V
Output 24V 140Watts / 160 Watts Peak
Efficiency 95% @24V, 5.833A output, 25°C
MTBF 420,000hrs @ 55°C
EMI & Safety Approval CE, FCC
Input Connector 9V~32V 3 pin TBC
Output Connector Mini-Fit 8 pin
Dimension (WxDxH) 93.4 x 38 x 20 mm
Operation Temperature -40°C ~ 75°C

订购指南

Ordering Guide
GADIWA-R9142 140W 9V~32V input to 24V output DC to DC Power module.Wide Temperature
