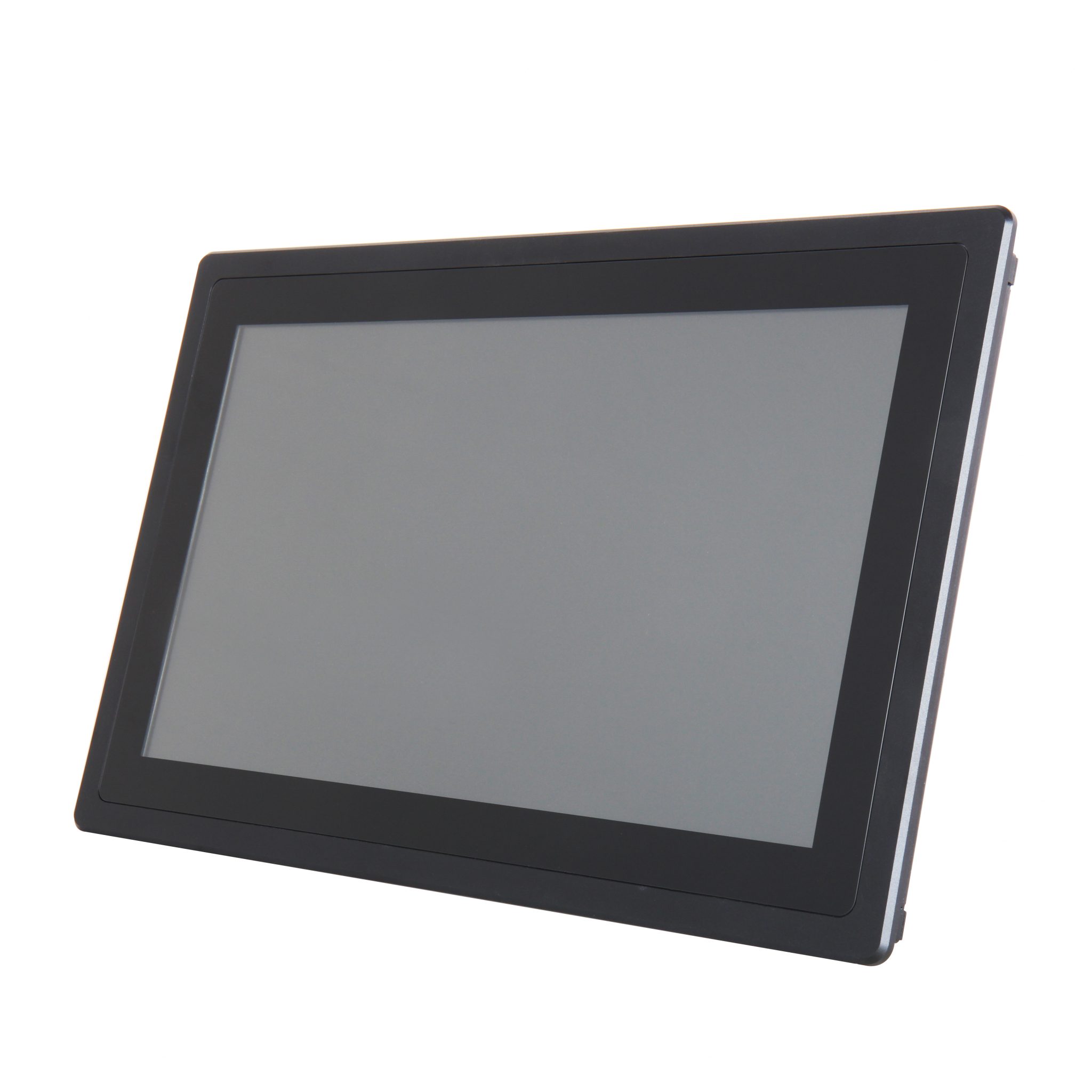

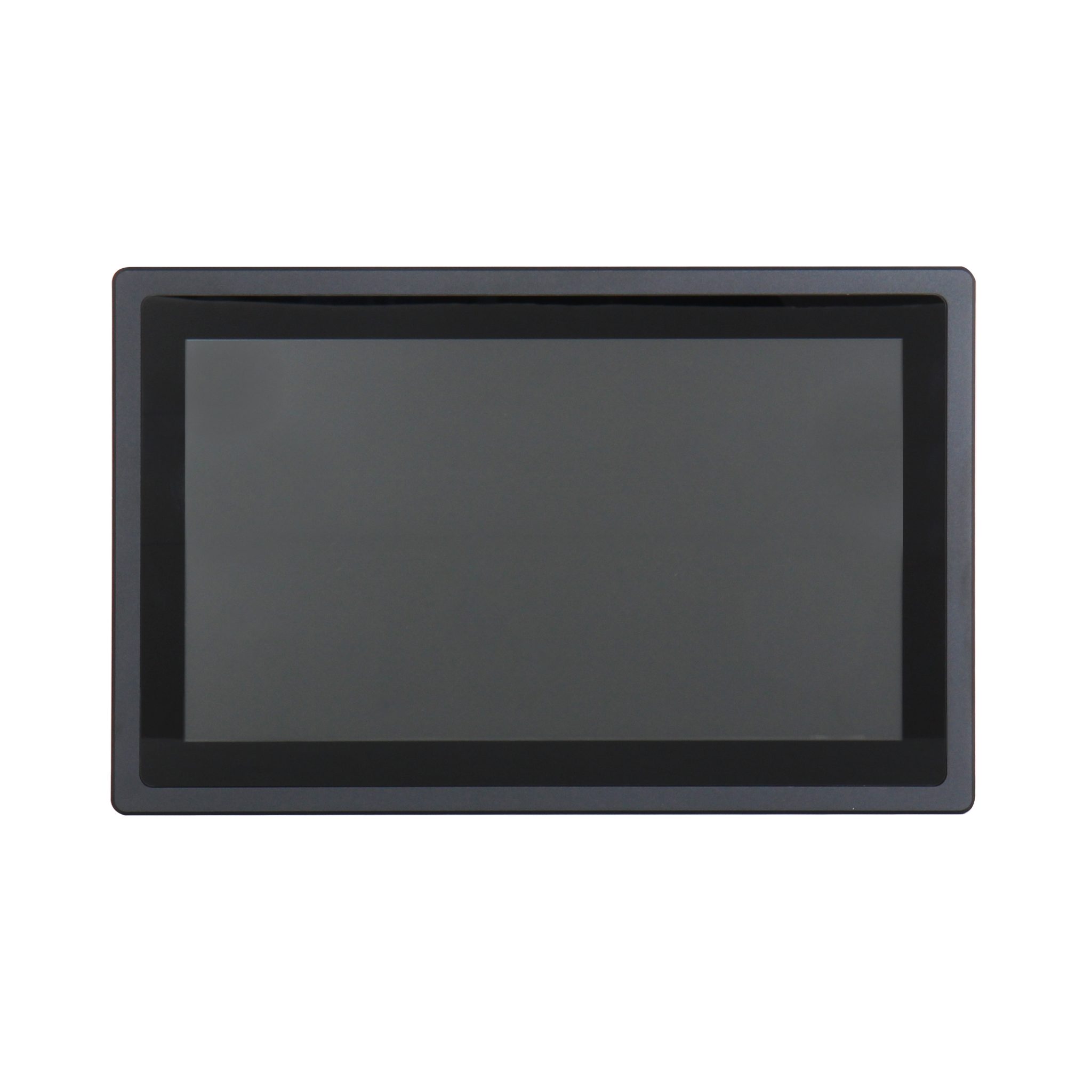

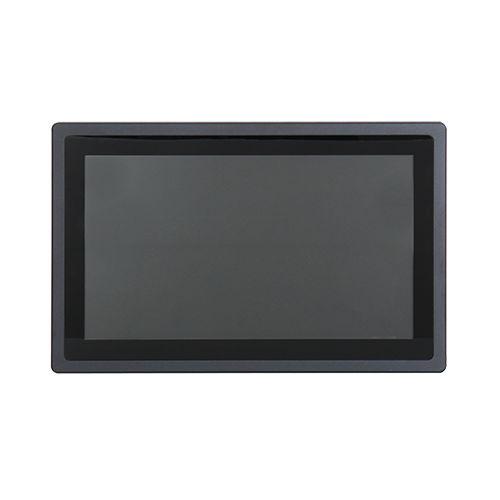

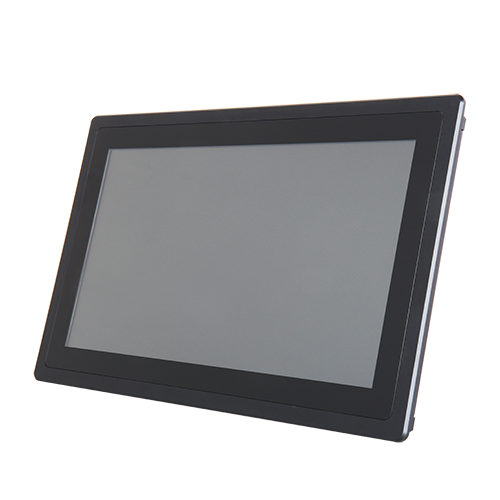

The FUDA4-S1623 is a durable 15.6-inch industrial touch panel PC featuring a WXGA display, Intel Atom® processors, up to 32GB DDR5 RAM, extensive I/O ports, and IP65/IP20 protection. Ideal for automation, smart factories, and harsh industrial environments.
| Model Name | FUDA4-S1623 |
|---|---|
| LCD Size | 15.6″ |
| Resolution | WXGA 1366x 768 |
| Brightness | 400 |
| Contrast Ratio | 800:1 |
| Backlight | LED type |
| Touch Screen | Projected Capacitive Multi-Touch (10 points) |
| System | |
| SoC | Intel Atom® X7213RE processor (6M Cache, up to 3.40 GHz) (TDP: 9 watt) Intel Atom® X7433RE processor (6M Cache, up to 3.40 GHz) (TDP: 9 watt) |
| Memory | UP to 32GB DDR5 4800 SDRAM on one 262 pin SO-DIMM socket |
| BIOS | AMI |
| Graphics | Intel® UHD Graphics |
| LVDS | LVDS |
| LAN Chipset | Intel I226IT |
| TPM | On board TPM 2.0 Chip |
| Watchdog Timer | Programmable 1–255 sec |
| Storage Device | – eMMC 5.1 Flash (Default: 128GB) BOM option – M.2 2242/2260/2280 M key socket |
| OS | Windows 10/11, Linux® |

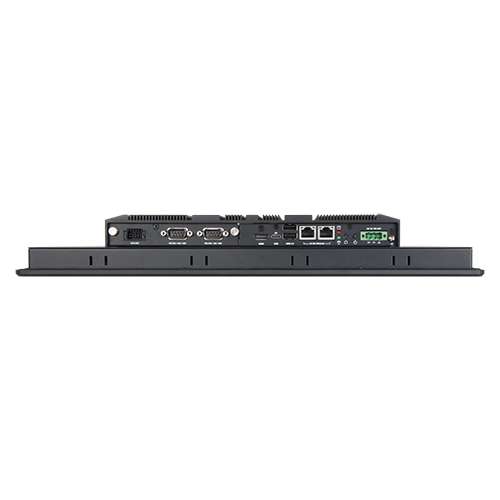

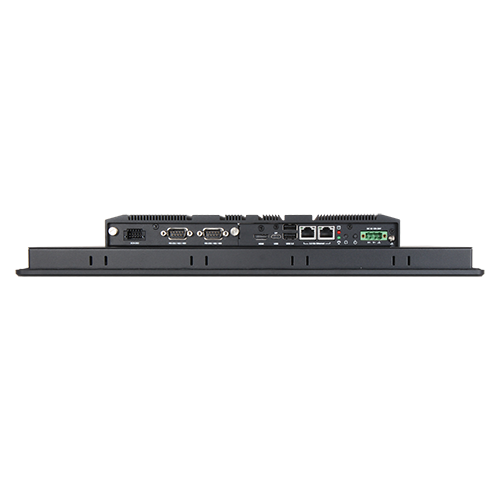

| I/O Interface | |
| Series Port | Extension I/O board selection – 2x RS-232/RS-422/RS-485 + 2x USB 2.0 – 2x RS-232/RS-422/RS-485 + 1x RS-232 – 2x RS-232/RS-422/RS-485 + 1x 2ch DIDO |
| Display | 1x HDMI® 2.0b 1x USB Type C with DP ALT mode |
| USB | 2x USB 3.2 Gen 1×1 ports 1x USB type C Gen 2×1 |
| Ethernet | 2x 2.5 Gigabit Ethernet ports |
| Others | 1x 3 pin Terminal Block Connector 1x Power Button, Reset Button 1x Power LED, 1x Storage LED 1x Extension I/O board selection |
| Expansion |
|
| Mechanical | |
| Dimension (mm) | 415 (L) x 265 (W) x 56.6 (D) mm |
| Mounting (mm) | VESA Mount 75 x 75, 100 x 100; Panel Mount |
| Weight (Kg)(N) | 4.8KG |
| Weight (Kg)(G) | 7.1 Kg |
| Power Supply | DC12V ~ 24V DC input |
| Consumption (Max) | 48.8W (12V); 48.1W (24V) |
| Consumption (Min) | 17.2W (12V); 18.1W (24V) |
| Environmental | |
| OP/Storage Temp | -25~ 65 ℃ degree |
| Vibration | 1.0G Random Operation, 10~500Hz (eMMC, SSD) Packaged vibration test 2.16G, 10~500Hz |
| Shock | 15G peak acceleration (11m sec. duration) / operation |
| Drop | Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard |
| IP Protection | Front Bezel: IP65 Whole enclosure: IP20 (IEC 60529 Edition 2.1 Standard) |
| Certificate | FCC/CE/UKCA Class A/Heavy Industry 61000-6-2, 61000-6-4, CE LVD Safety (EN 62368-1) |
