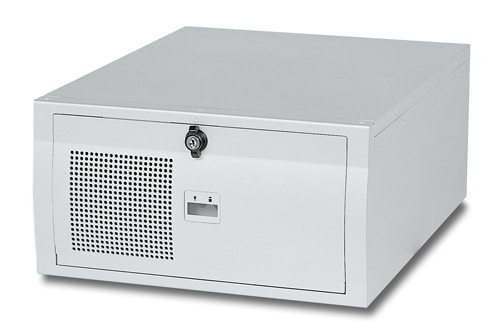

AREMO-8164

8-slot full-size industrial node chassis (Shoe-box)

产品特色

Two 5.25” and two internal 3.5” HDD drive bays for CD-ROM or mobile rack, easy to install software and mirror disk (RAID1)
Two USB ports on the front panel
Can be vertically or horizontally mounted, easy to fit into space limited environment
One 12cm ball-bearing cooling fan for better ventilation
One replaceable air filter for easy cleaning
Two adjustable positions for hold-down card retainers provide better protection from vibration
Wall-mounting bracket equipped
Both 8-slot PICMG 1.0 or 1.3 backplane applicable; easy to change different backplanes
Field replaceable power supply bracket for both normal PS/2 and PS/2 redundant power supply, easy for changing defected power supply

产品描述

AREMO-8164 is designed for PICMG 1.0/1.3 with 8-slot backplane that is 4U full size industrial node chassis built with two 5.25” HDD driver space for CD/DVD-ROM, two internal 3.5” HDD driver bays and replaceable air filter for easy maintenance. AREMO-8164 equips two USB interface on front panel, and also high wattage PS/2 form factor PSU. The compact size feature of AREMO-8164 is suitable for Industrial and Engineering applications.

规格

TYPE	Node
MODEL	AREMO-8164
SLOT	8
ORDERING GUIDE	AREMO-8164 AREMO-8164/B
BACKPLANE
BP MODEL	PBPE-08P41	PBPE-08A7	PBPE-07P4	PBP-08P4	PBP-08P3	PBP-08I
PICMG	1.3	1.3	1.3	1.0	1.0	1.0
PCIe	3		2
PCI/PCI-X	4/0	7/0	4/0	4/0	3/0

订购指南

Ordering Guide
AREMO-8164 8-slot full-size industrial node chassis
AREMO-8164/B 8-slot full-size industrial black node chassis
