AREMO-4197

19" 4U industrial rack-mount chassis

产品特色

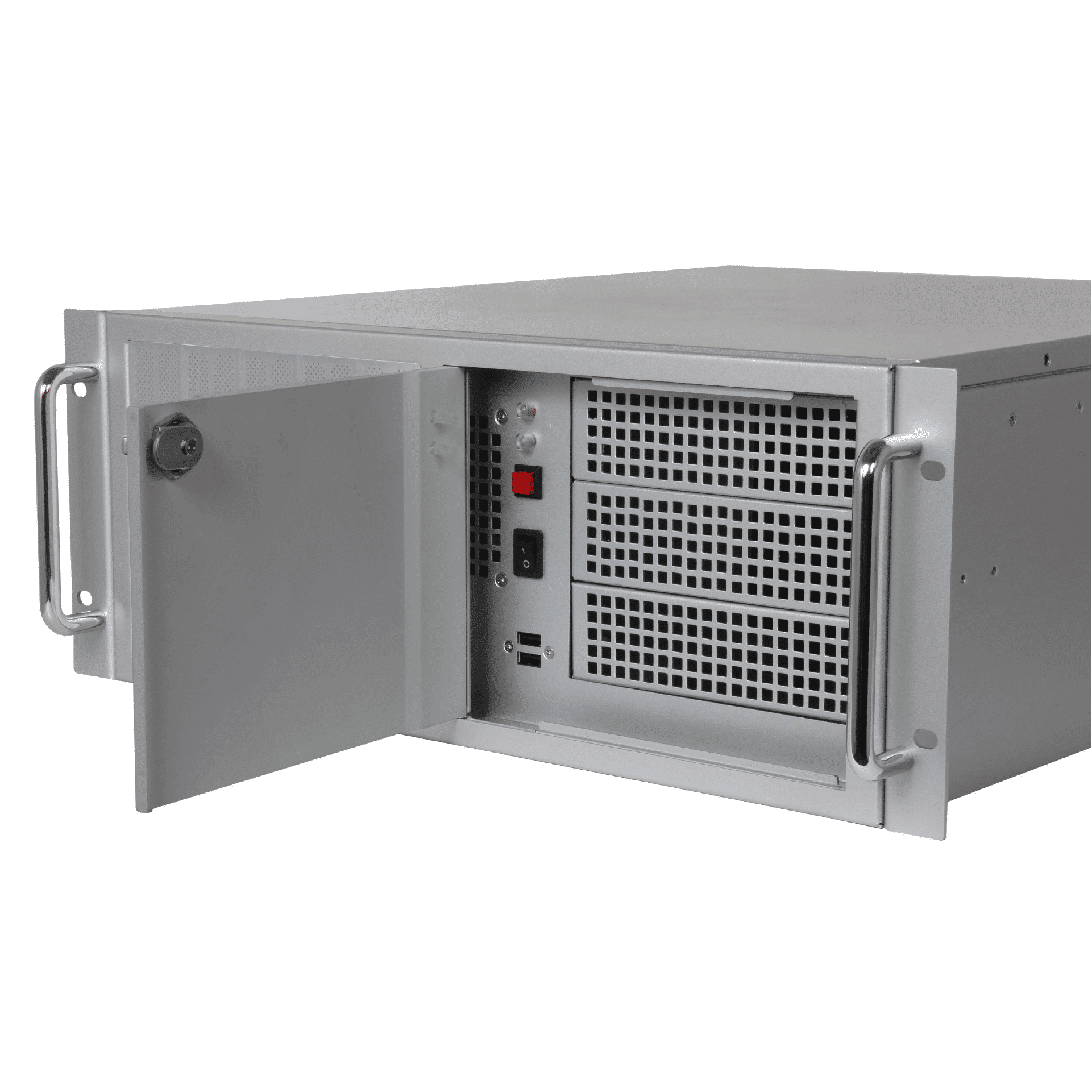

  • Two USB ports on the front panel
  • 5.25” x3 + 3.5” x1 drive bays for RAID 0, 1, 5 & CD-ROM
  • Traditional rack-mount handles
  • PS/2 or Mini-reduncant power supply installable

产品描述

The AREMO-4197 and AREMO-4197-MX is 19”4U Rack-mount chassis and designed for PICMG SBC/SHB and ATX form factor with stylish front panel design, up to 14-slot expansion for PICMG backplane. AREMO- 4197 series can support PS/2 PSU, two USB interface on front panel and build with replaceable air filter. AREMO-4197 series is suitable in several vertical markets, like Factory and Server applications.

规格

TYPE 4U
MODEL AREMO-4197 AREMO-4197-MX
SLOT 14 ATX
ORDERING GUIDE AREMO-4197 AREMO-4197/B AREMO-4197-MX AREMO-4197-MX/B
BACKPLANE
BP MODEL PBPE-14AD64 PBPE-13A8 PBPE-13A4 PBPE-12AA64 PBPE-12A9 PBPE-12P4 PBPE-11A3
PICMG 1.3 1.3 1.3 1.3 1.3 1.3 1.3
PCIe 2 4 8 1 2 8 8
PCI/PCI-X 3/8 8/0 4/0 2/8 9/0 4/0 3/0

订购指南

Ordering Guide
AREMO-4197 19” 4U rack-mount chassis for PICMG backplane
AREMO-4197/B 19” 4U black rack-mount chassis for PICMG backplane
AREMO-4197-MX 19” 4U rack-mount chassis for ATX M/B
AREMO-4197-MX/B 19” 4U black rack-mount chassis for ATX M/B
