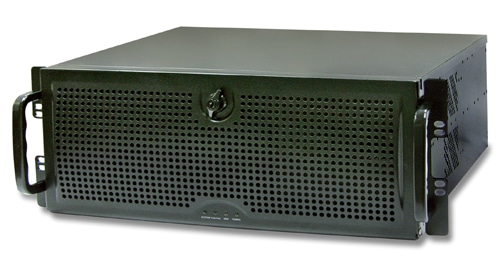

AREMO-4196

The Best Cost-Performance 19” 4U Height Intel® Desktop Mother Board Based Rack-mount Computer

产品特色

  • Three 5.25” and one external 3.5” HDD drive bays for RAID 0, 1, 5 & CD-ROM
  • Two USB ports on the front panel
  • Dual 12cm ball-bearing cooling fans for better ventilation
  • Two card retainer positions
  • PS/2 or redundant power supply installable
  • ATX M/B applicable (AREMO-4196-MX)
  • Easily detached and washable air filter
  • Equipped with fan control card to detect fan failure
型录下载
业务服务需求
产品支持服务

产品描述

AREMO-4196 and AREMO-4196-MX is 19” 4U Rack-mount chassis and designed for PICMG SBC/SHB and ATX form factor with stylish front panel design, up to 14-slot expansion for PICMG backplane. AREMO-4196 series can support PS/2 PSU, two USB interface on front panel and build with replaceable air filter. AREMO-4196 series is suitable in several vertical markets, like Factory and Server applications.

规格

Specifications
Construction Heavy-duty steel with aluminum front panel
Drive Bay Internal: 5.25” x3, 3.5” HDD x1 Internal: 3.5” x2
Card Retainer Three locations for one card retainer
Air Filter Two replaceable air filter
Cooling Fan Two 12cm ball-bearing cooling fans
Indicator Power on/off x1, HDD x1
Switch Power on/off x1, System reset x1
Speaker One 8Ω speaker
Connector Two USB ports on the front panel
Standard Color Silver, Black
Dimension 482(W) x 481(D) x 177(H) mm; 19”(W) x 18.1”(D) x 7”(H)
Weight Net: 13.5 kg (29.8 lb); Gross: 14.5 kg (32 lb)
Backplane PBPE-13A8:14-slot [PCIe (4), PCI (8), PCI-X (0)] active PICMG1.3 backplane PBPE-13A4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] active PICMG1.3 backplane PBPE-12A9: 14-slot [PCIe (2), PCI (9), PCI-X (0)] active PICMG1.3 backplane PBPE-12P4: 14-slot [PCIe (8), PCI (4), PCI-X (0)] PICMG 1.3 backplane PBPE-11A3: 14-slot [PCIe (8), PCI (3), PCI-X (0)] active PICMG1.3 backplane

订购指南

Ordering Guide
AREMO-4196 19” 4U rack-mount chassis for PICMG Version
AREMO-4196/B 19” 4U black rack-mount chassis for PICMG Version
AREMO-4196-MX 19” 4U rack-mount chassis for M/B Version
AREMO-4196-MX/B B19” 4U black rack-mount chassis for M/B Version
