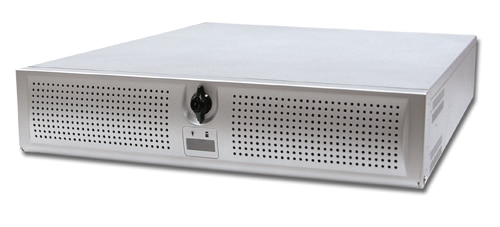

AREMO-2173MX

19” 2U industrial rack-mount chassis for Micro-ATX or mini-ITX mother board

产品特色

  • One slim CD-ROM and two hot-swap 3.5” HDD (SATA) Drive bays
  • Two USB ports on the front panel
  • Two 7cm ball-bearing cooling fans for better ventilation
  • One power On/Off switch with protection cap and one touch free reset for secure access
型录下载
业务服务需求
产品支持服务

产品描述

AREMO-2173MX, 19” 2U Rack-mount, designed for Micro-ATX and Mini-ITX can support up to 4 low profile add-on cards that also builds two hot-swap 3.5” SATA HDD driver bays and two USB interface on front panel. AREMO-2173MX can equip high wattage PS/2 form factor PSU. The build-in replaceable air filters are for easy maintenance. AREMO-2173MX is suitable for Factory and Server applications.

规格

Specifications
Construction Heavy-duty steel
Drive Bay External: 1x Slim type CD-ROM, 2x Hot-swap 3.5” HDD
Air Filter One external replaceable air filter
Cooling Fan Two 7cm ball-bearing fans
Indicator 1x HDD+ 1x Power On/Off
Switch 1x Power On/Off (with a protection cap), 1x System reset
Speaker One 8Ω speaker
Connector 2x USB ports equipped on the front panel
Standard Color Silver, Black
Dimension 482(W) x 429.2(D) x 88.6(H) mm; 19”(W) x 16.9”(D) x 3.5”(H)
Weight Net: 11.0 kg (23.1 lb); Gross: 12.0 kg (25.3 lb)

订购指南

Ordering Guide
AREMO-2173MX 19” 2U rack-mount chassis for micro-ATX or mini-TX M/B
AREMO-2173MX/B 19” 2U black rack-mount chassis for micro-ATX or mini-TX M/B
