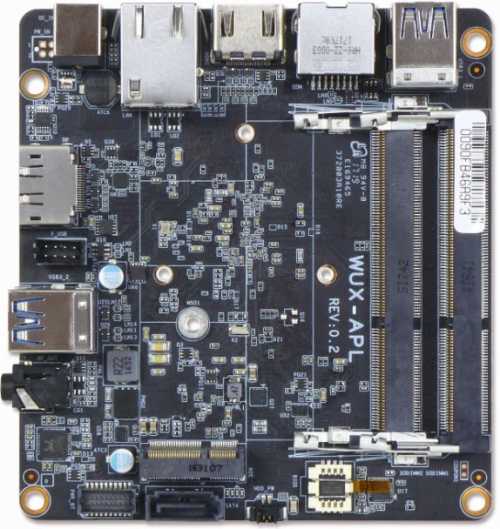

WUX-4200

Intel® Pentium® Processor N4200 based 4x4-inch mini PC Board with DDR3L SDRAM, Gigabit Ethernet, M.2(E+A key)socket, one COM ports and 12~19V DC input

产品特色

  • Supports Intel® Pentium® Processor N4200
  • Supports DD3L-1866/1600 non-ECC SDRAM on one SO-DIMM slot, up to 8GB
  • Supports Dual displays including DP and HDMI up to UHD resolution
  • Supports one M.2 (E+A Key)slot, one SATA III Port and one MicroSD3.0 socket
  • Supports wide voltage of DC power input from 12V ~19V
型录下载
业务服务需求
产品支持服务

产品描述

WUX-4200 builds on Intel® Pentium® Processor N4200 supports Dual/Quad Core (up to 10W) that can support dual channel DDR3L memory. Support one Gigabit Ethernet port and one M.2 socket and wide voltage of power input from 12V to 19V.

订购指南

Ordering Guide
AB4-A001 (R).WUX-3455. Intel J3455.USB. HDMI. LAN. Audio & 32G eMMC.
ABC-3005 (R).WUX-3350. Intel N3350.USB. HDMI. LAN. Audio & 32G eMMC.
ABC-3004 (R).WUX-4200. Intel N4200. USB. HDMI. LAN. Audio & 32G eMMC.
ABC-3008 (R).WUX-3455-WS. Intel J3455.USB. HDMI. LAN. Audio & 32G eMMC. Bulk Package.
ABC-3007 (R).WUX-3350-WS. Intel N3350.USB. HDMI. LAN. Audio & 32G eMMC. Bulk Package.
ABC-3006 (R).WUX-4200-WS. Intel N4200.USB. HDMI. LAN. Audio & 32G eMMC. Bulk Package.
