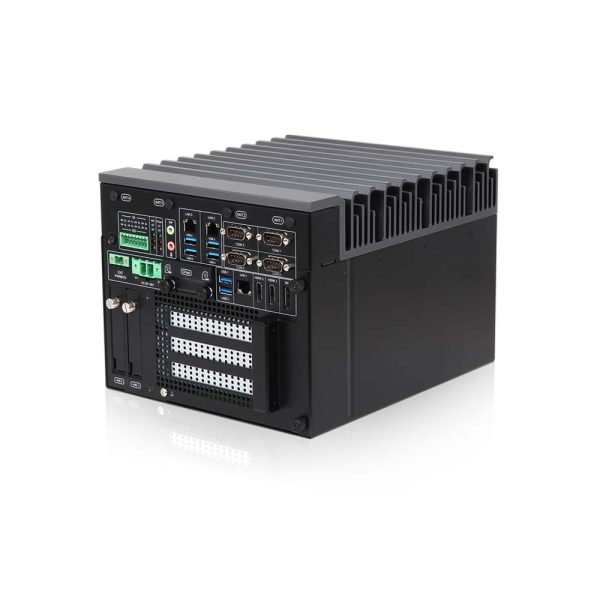

WEBS-85H2 搭载英特尔桌上 W480E 芯片组并且具备英特尔第十代酷睿 i3/i5/i7/i9 处理器支持双 DDR4 内存。支持三高速以太网络端口、一个 M.2 M Key 槽、一个 M.2 E Key 槽与一个迷你 PCIe 槽与 3xPCIe 扩充孔选项。 WEBS-85H2 有丰富的输入 / 输出接口与支持高解析，适合作为销售时点情报系统、交互式信息服务站、数字广告牌、自动化、安全 监控等应用的解决方案。
| System | |
| M/B | Proprietary |
| CPU | 10th Generation Intel® Xeon® / Core™ i3/i5/i7/i9 Processors |
| BIOS | AMI UEFI BIOS |
| Memory | 2x SO-DIMM, Support DDR4 2666/2933 MHz SO-DIMM. up 64 GB ( ECC / Non- ECC) |
| Storage | – 1x Type II CFast slot – 2x 2.5” SSD slots |
| Watchdog Timer | HW WDT Enable (WDT_EN) |
| TPM | TPM 2.0 |
| Expansion | – 3x PCIe Expansion Slot option: – (1x PCIe x16 + 1x PCIe x4 or 2x PCIe x8 + 1x PCIe x4 (auto-detect)) – 1x Mini PCIe socket (supports mSATA or cellular module) – 1x M.2 2242/60/80 M key socket (PCIe x4 & SATA mode) – 1x M.2 2230 E key socket (supports CNVi, Wi-Fi/BT module) |

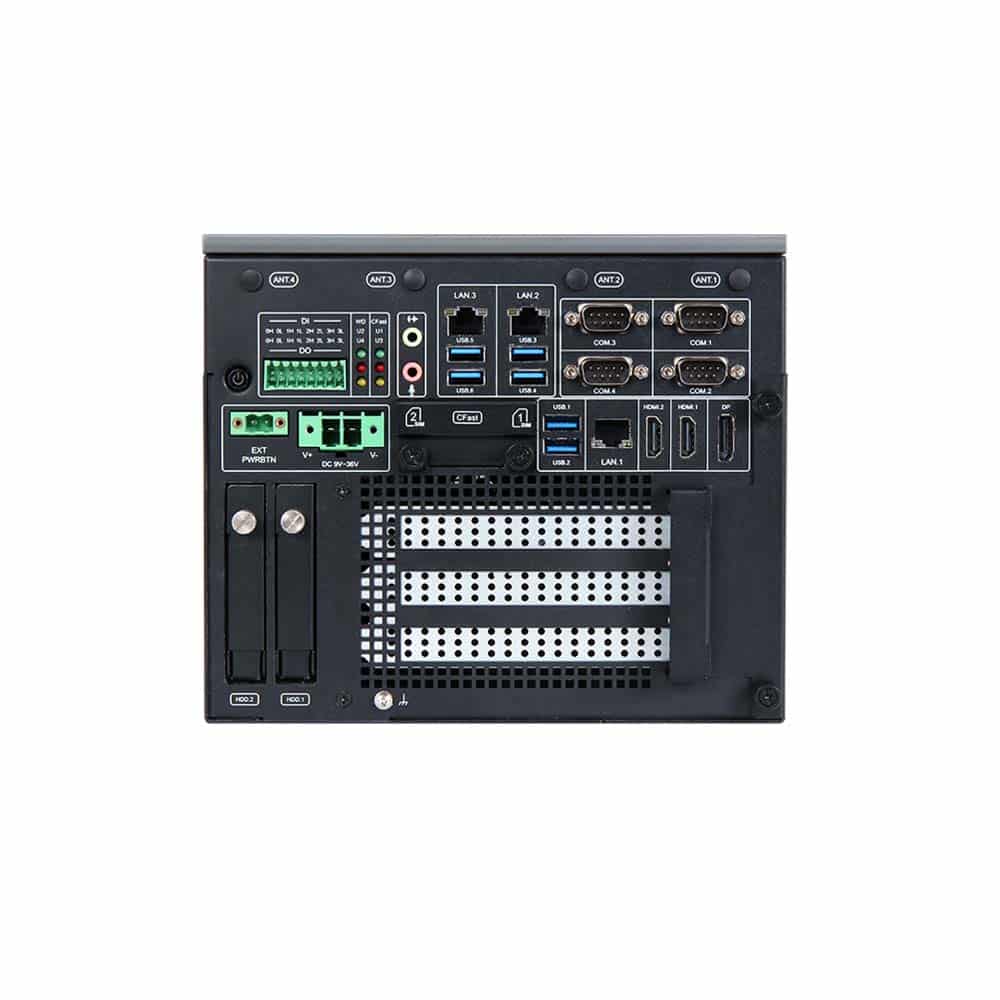

| External I/O | |
| Serial Port | 4x COM port (1x RS-232/422/485, CANbus (2.0A/B) selected by on board jumper) |
| Display | – 1x HDMI 2.0, supports up to 4096 x 2160 @ 60 Hz – 1x HDMI 1.4, supports up to 4096 x 2160 @ 30 Hz – 1x DP 1.2, supports up to 4096 x 2304 @ 60 Hz |
| USB | – 2x USB 3.2 Gen 2 – 4x USB 3.2 Gen 1 |
| Audio | Mic-in / Line-Out |
| Ethernet | 3x Gigabit Ethernet (Intel® I210-IT ) |
| DIO | 4x DI, 4 x DO |
| SIM | 2x nano SIM card slot |
| Power Supply Unit | |
| Power Input | 9 to 36 VDC, 2-pin terminal block connector |
| Environmental | |
| Operation Temperature | -20°C ~ 60°C |
| Storage Temperature | -40°C ~ 80°C |
| Relative Humidity | 60°C, 95%RH non-condensing |
| Operation Vibration | Desk mount: 0.5 Grms (10 Hz to 500Hz) System: 1Grms (10 Hz to 500Hz) |
| Operation Shock | Desk mount: 15G, 11 msec System: 50G, 11 msec |
| Mechanical | |
| Dimension | 210(W) x 250(D) x 176.2(H) mm |
| Weight | 7 Kg |
| Mounting | Desk mount |
