WEBS-5491

Embedded Rugged Fan-less System with Intel® Atom® E3845 Specific Form Factor Board

产品特色

  • Latest Intel® Atom® embedded processor with low power and quad-core technology
  • Fan-less and cable-less design with wide temperature support (-30°C ~ 70°C)
  • Single SO-DIMM socket up to 8GB DDR3L Memory
  • 1x 2.5” SATA HDD/SSD, 1x CF & 1x SD card
  • 2x Gigabit Ethernet, 1x USB3.0, 3x USB2.0, 2x RS-232/422/485 (selectable by BIOS)
  • 1x DVI-I (DVI-D & VGA signal included)
  • 1x Antenna hole for WiFi or 3G module
  • Expandable I/O combinations for diverse applications
  • Support wide DC 12V ~ 24V input
  • Wall, DIN rail mounting are supported
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating

产品描述

The WEBS-5491 is powered by Intel® Atom® quad-core processor. Despite its fanless and cable-less design, the system can support wide temperature ranging from -30 to 70 degrees. Expandable I/O combination design makes it more flexible for various environments. By utilizing the low power technology, WEBS-5491 is an ideal platform for factory automation and transportation applications.

规格

Model WEBS-5491
M/B PEB-99A4-E3845
Form Factor Specific Form Factor 227 x 150 mm
System
CPU Atom® E3845 1.91GHz
Chipset Intel® SoC
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® Gen 7 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528 + Fintek F81216
Storage 1x 2.5” SATA HDD/SSD 1x CF, 1x SD card

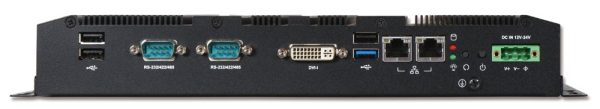

External I/O
Serial 2x RS-232/422/485
USB 3x USB2.0 1x USB3.0
Display DVI-I
Ethernet Intel® I210IT x 2
PS/2 N/A
Audio Line-out
D I/O N/A
Expansion 1x Half-size Mini-PCIe
PWR
System DC 12V ~ 24V
Environment
OP Temp. -30°C ~ 70°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 279 x 164 x 42 mm
Weight 2.8 Kg

订购指南

Ordering Guide
AS5-3435 (R).ATO.WEBS-5491.Intel Baytrail E3845.Fanless System
