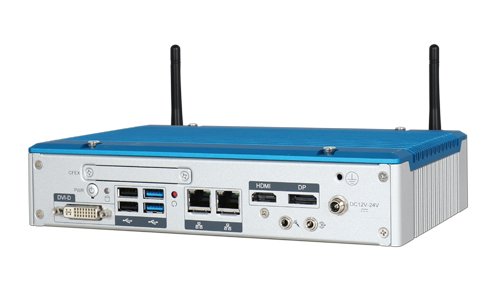

WEBS-5481-S

Embedded Rugged Fan-less System with Intel® Celeron® and Core™ i5/i7 based Specific Form Factor Board

产品特色

  • 4th generation Intel® Celeron® & Core™ i5/i7 ULT SoC
  • Intel® Haswell ULT SoC low power &high performance embedded fan-less system
  • Dual channel SO-DIMM sockets up to 16 GB DDR3L Memory
  • 1x 2.5” SATA HDD/SSD, 1x CFEX, 1x mSATA
  • 2x Mini-PCIe socket can be used in a diversity of applications
  • 1x RS-232/422/485, 1x RS-232, 2x USB3.0, 2x USB2.0, 2x Gigabit Ethernet Port
  • Triple Display by DVI-D/HDMI/DP
  • 2x Antenna hole + 1x on board SIM card holder for WiFi or 3G/GPS module to use
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating

产品描述

The WEBS-5481-S, a downward/slim version of WEBS-5400 series design concept, builds on Intel® Haswell ULT Low Power SoC and takes advantages of Intel® Core™ mobile processor technologies that can support dualchannel DDR3L memory. Support two Gigabit Ethernet ports and two Mini-PCIe sockets. The WEBS-5481-S is an ideal platform with HD graphic output for POS, kiosk, digital signage and transportation applications.

规格

Model WEBS-5481-S
M/B PEB-5731-W
Form Factor Specific Form Factor 170 x 135 mm
System
CPU Intel® 4th Generation ULT Core™ i Processor
Chipset Intel® SoC
BIOS AMI UEFI
Memory DDR3L/16GB
Graphic Controller HD Graphics 4000 Family
Audio Codec ALC892
Super I/O EC ITE IT8528 + Fintek F81216
Storage 1x CFEX, 1x 2.5” SATA HDD/SSD 1x mSATA
External I/O
Serial 1x RS-232 1x RS-232/422/485
USB 2x USB2.0 2x USB3.0
Display DVI-D, DP, HDMI
Ethernet Intel® I218LM+I210AT
PS/2 N/A
Audio Line-out, Mic-in
D I/O 8-bit Digital I/O
Expansion 1x Full-size Mini-PCIe 1x Half-size Mini-PCIe
PWR
System DC 12V ~ 24V
Environment
OP Temp. -20°C ~ 55°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 235 x 160 x 50 mm
Weight 1.8 Kg

订购指南

Ordering Guide
AS5-3407 (R).ATO.WEBS-5481-S.Mini-ITX Haswell ULT. Fanless System.
