WEBS-45J3

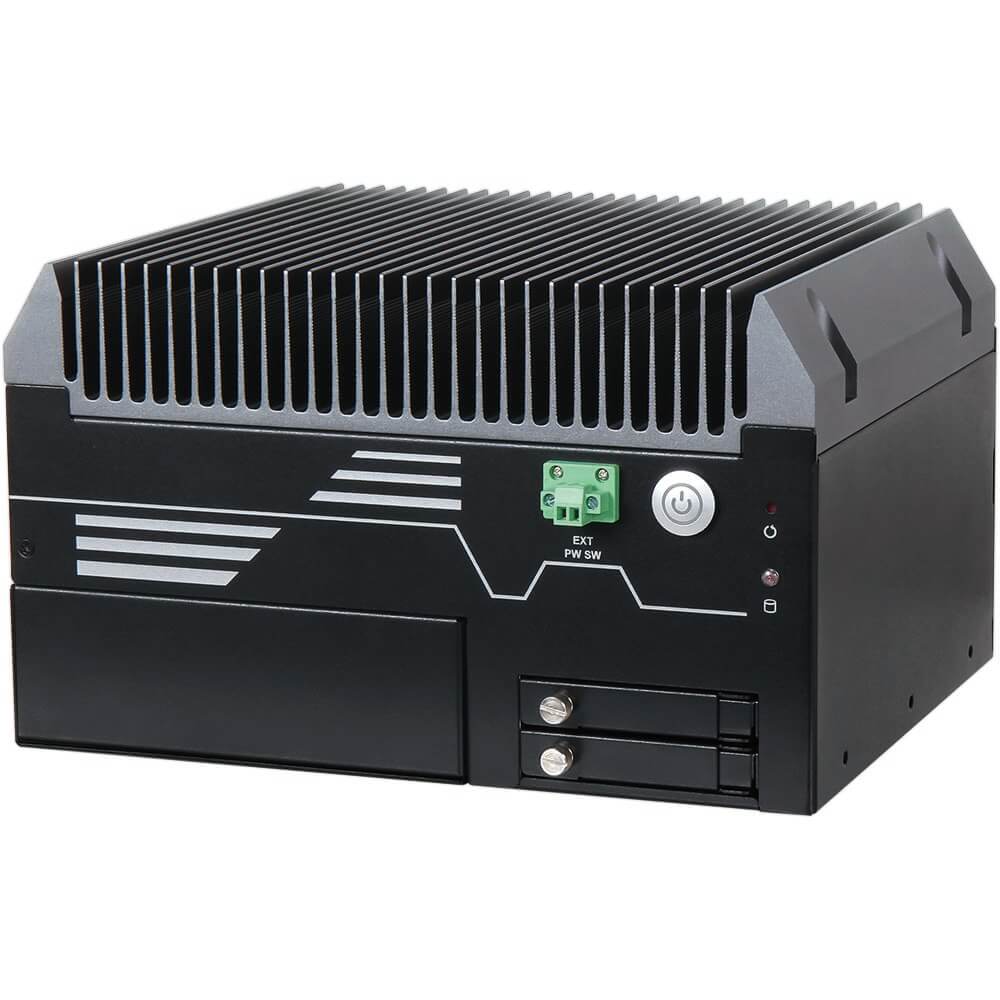

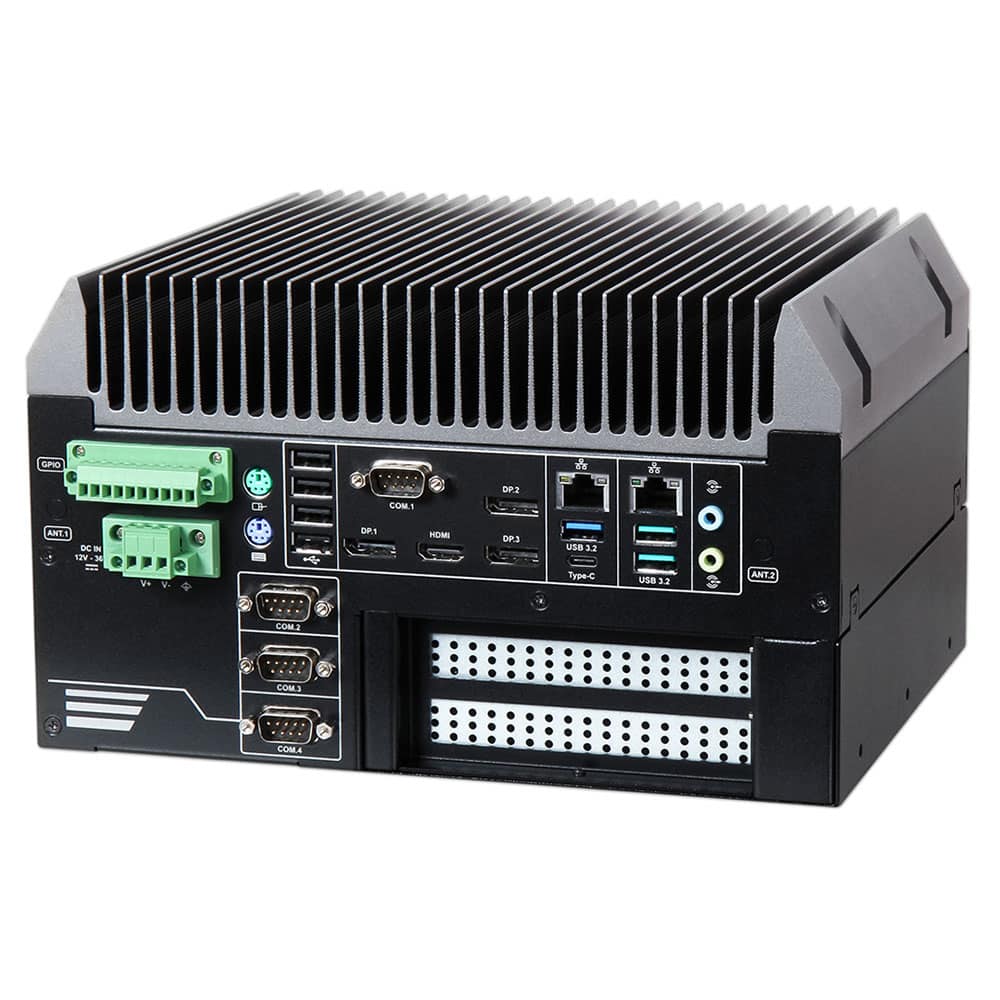

Embedded Rugged Fan-less System with 12th/13th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board

产品特色

  • Support 12th/13th Generation Intel® Core™ i3/i5/i7/i9 processors „
  • Support 64GB DDR5 4800 SO-DIMM „
  • Support triple DP and one HDMI displays „
  • Support One M.2 E Key, One M.2 M Key „
  • Support 4 x COM ports (1x RS-232/422/485) „
  • 2x Antenna hole for WiFi module to use „
  • 2x PCIe x16 slot (PCIe x8 Signal)

产品描述

The WEBS-45J3 builds on Intel® desktop Q670E chipset and takes advantages of 12th/13th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support dual DDR5 memory and 2x SATA Ports for storage. Support two Gigabit Ethernet ports , One M.2 E Key, One M.2 M Key socket. The WEBS-45J3 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications

规格

Specifications
System
M/B WADE-8213
CPU 12th/13th Gen Intel® Core™ Processors CPU in LGA1700 package (35W TDP)
BIOS AMI uEFI BIOS
Memory Up to 64GB DDR5 4800 on two SO-DIMM sockets
Storage Storage 2x SATAIII ports
Watchdog Timer Programmable watchdog timer
TPM TPM 2.0
H/W Status Monitor System monitor (Voltage and Temperature)
Expansion
  • 2xPCIe Expansion slot option (Gen 3):
  • (2x PCIe x16 slot (PCIe x8 Signal)
  • 1x M.2 E Key 2230 with PCIe x1, CNVI for Wireless
  • 1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD

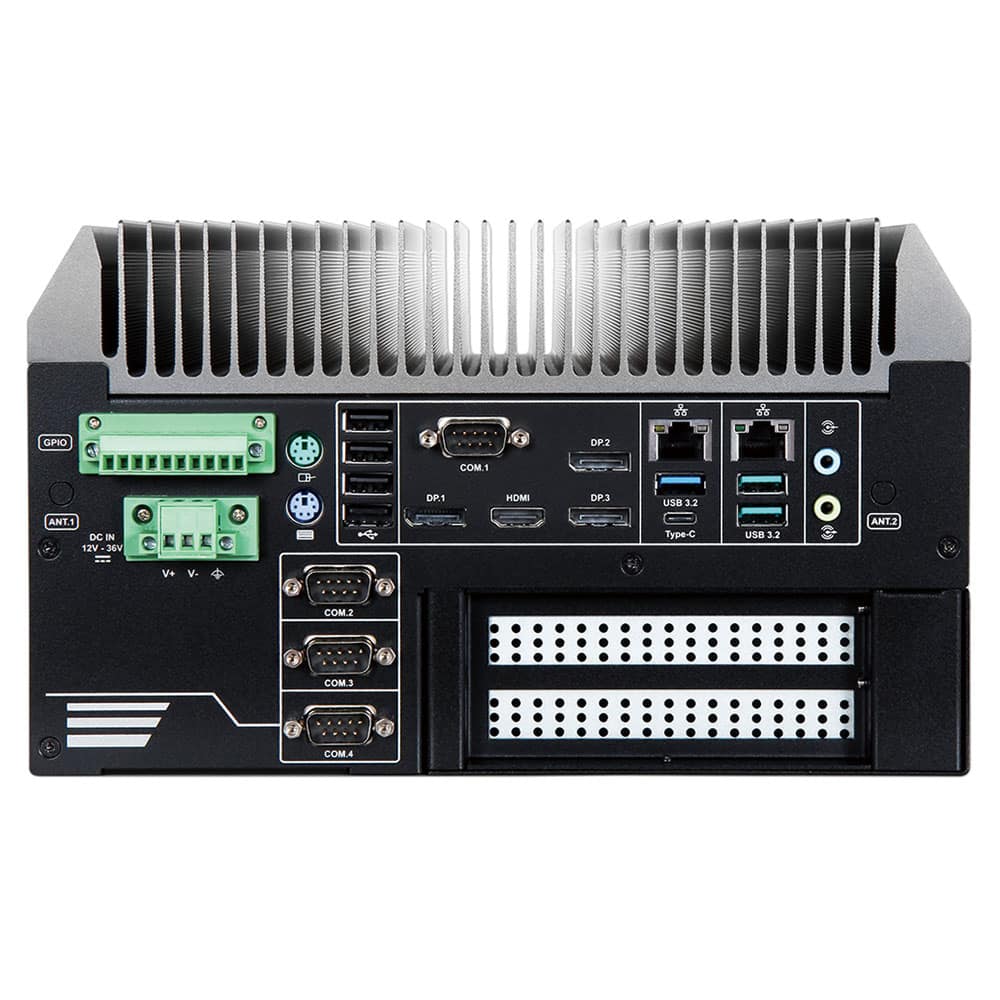

External I/O
External I/O
Serial Port 4 x COM ports ( 1 x RS- 232/422/485)
Display
  • 3x DP, resolution up to 8K
  • 1x HDMI
USB
  • 3x USB 3.2 Gen 2 (2x Type A+ 1x Type C)
  • 3x USB 3.2 Gen 1
  • 6x USB 2.0
Audio Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller
Ethernet
  • Intel® I210AT(1GbE) and Intel® I225LM(2.5GbE) Ethernet controller
  • 2x RJ45 connectors
GPIO 1x Programmable 8-bit Digital I/O
Other

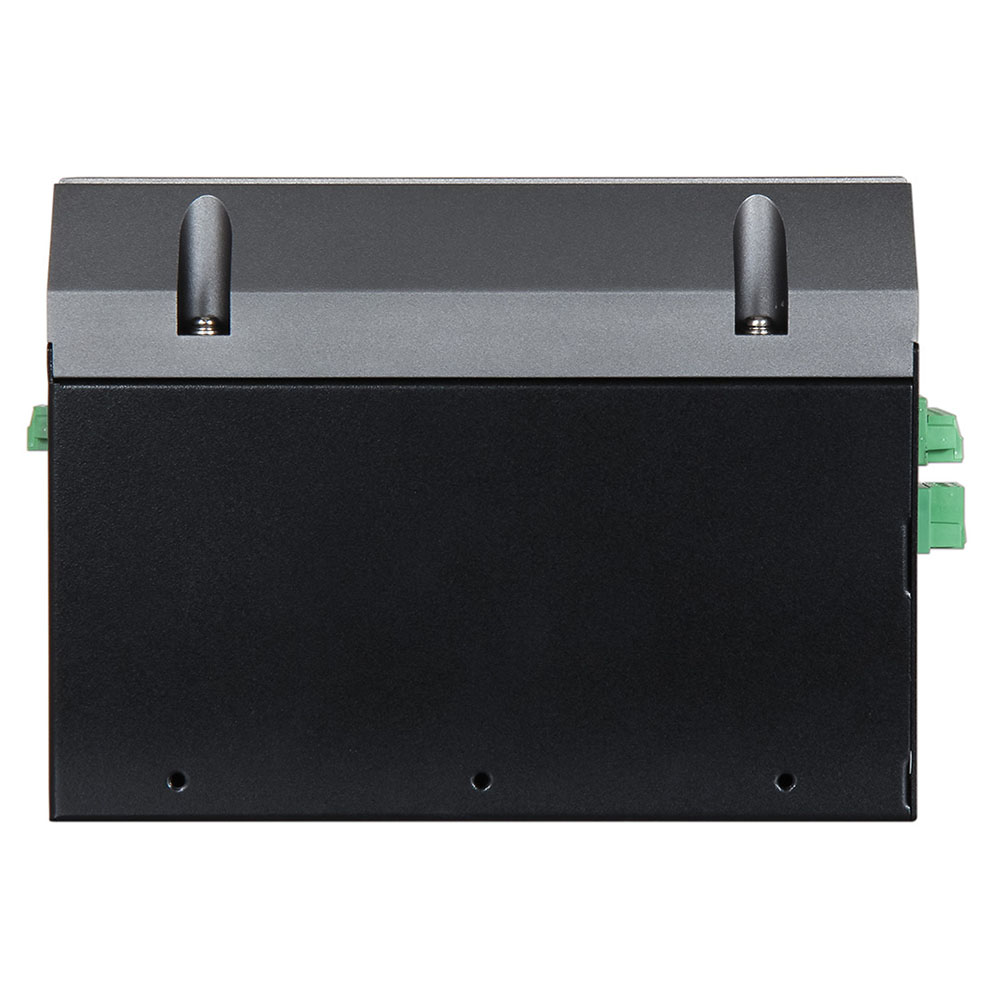

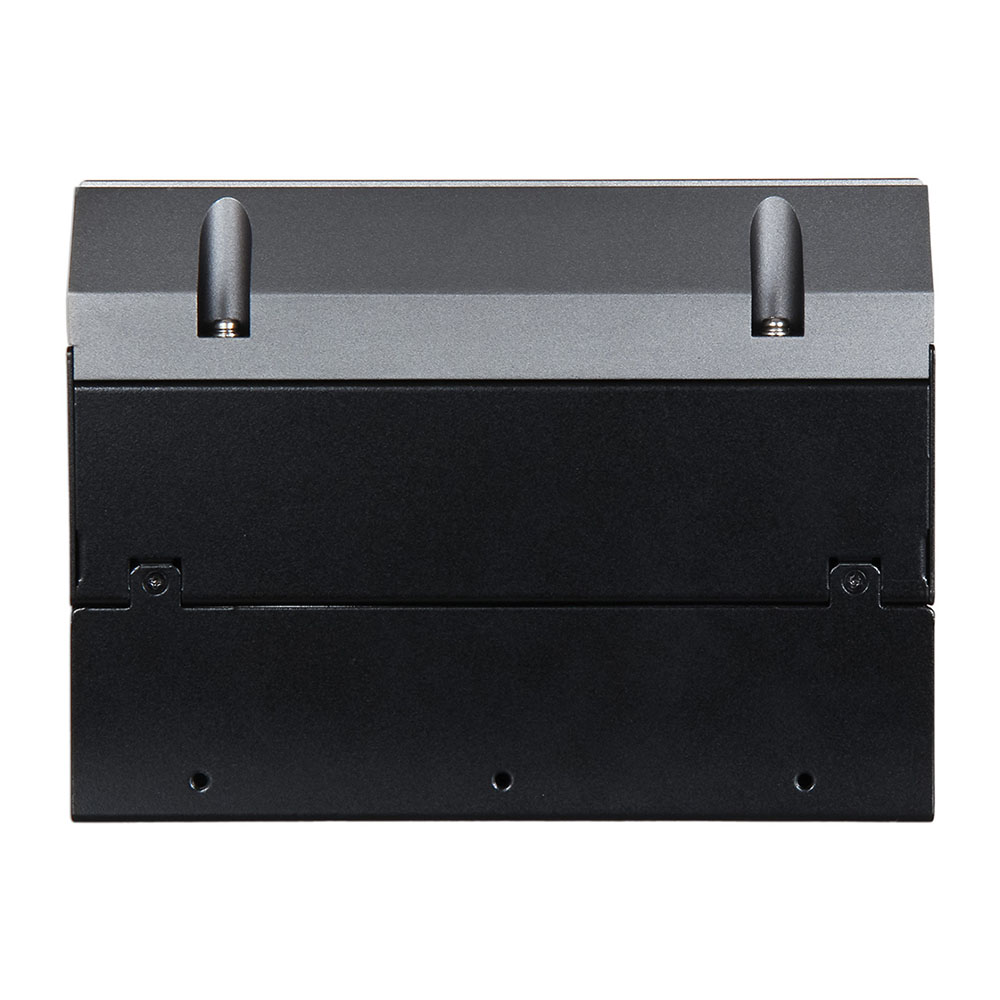

  • 2x Antenna hole for WiFi module

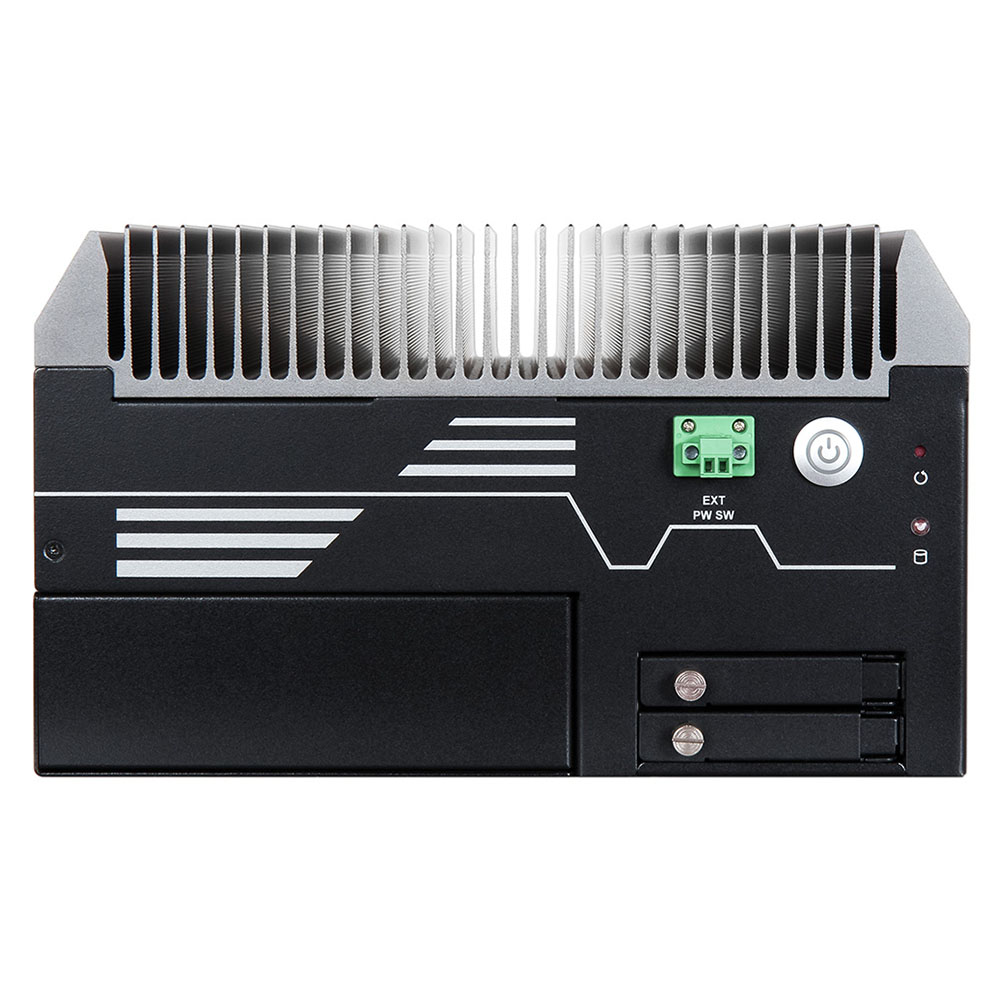

  • 1x EXT Power Switch



Power Supply Unit
Power Supply Unit
Power Input DC 12V ~ 36V with 3-pin Terminal Block Connector



Environmental
Environmental
Operation Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 80°C
Relative Humidity 40°C, 95%RH non-condensing
Operation Vibration 1Grms/10-500Hz, IEC 60068-2-6
Operation Shock 50G, 11 msec, IEC 60068-2-27



Mechanical
Mechanical
Dimension 253 (W) x 201(D) x 150 (H) mm
Weight 7 Kg
Mounting Wall mounting
