The WEBS-21J0 takes advantage of Intel Atom® X7000E / Intel® processors N-Series / Intel® Core™ i3 N-Series Processor technologies that can support one DDR4 memory and one SATA Ports for storage. Support two Gigabit Ethernet ports , One M.2 E Key, One M.2 B Key socket. The WEBS-21J0 is an ideal platform for IoT applications,such as retail, digital signage.
| System | |
| M/B | NANO-6064 |
|---|---|
| CPU |
|
| BIOS | AMI uEFI BIOS |
| Memory |
|
| Storage |
|
| Watchdog Timer | Programmable watchdog timer |
| TPM | TPM 2.0 |
| H/W Status Monitor | System monitor (Voltage and Temperature) |
| Expansion |
|

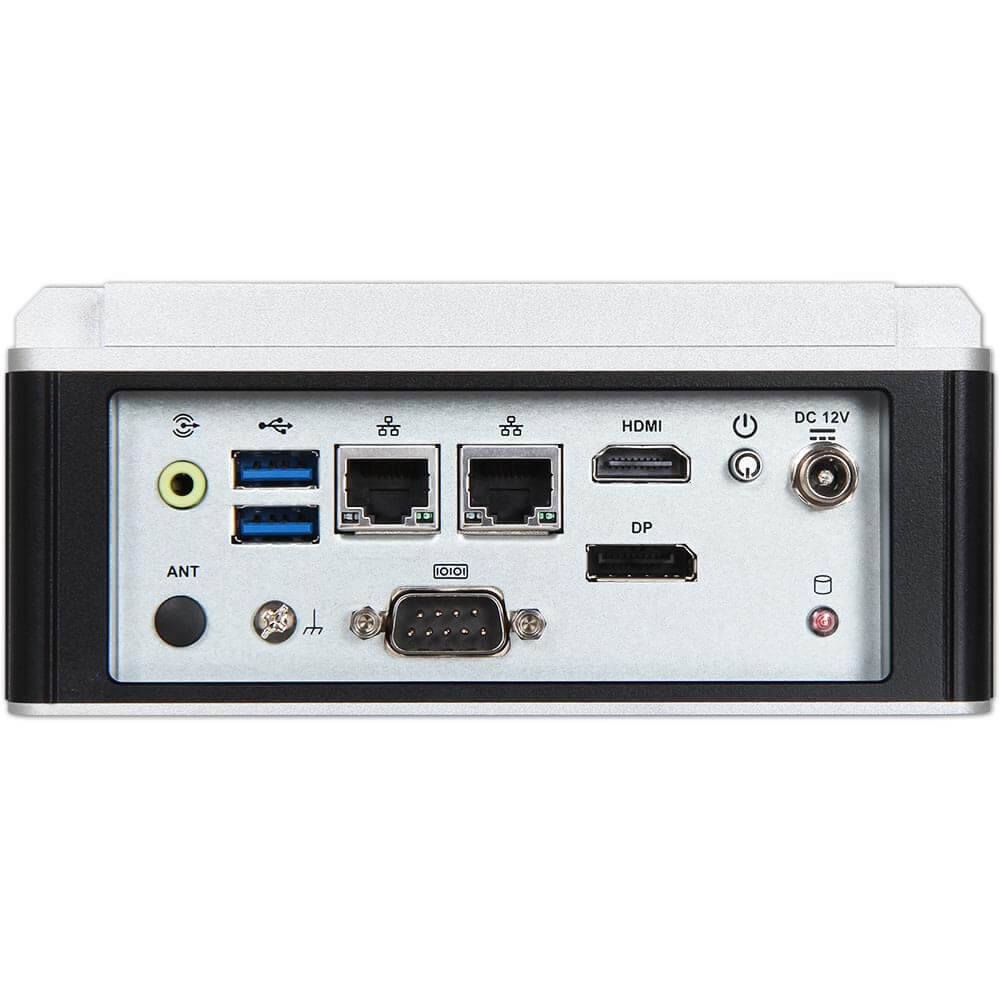

| External I/O | |
| Serial Port | 1x RS- 232/422/485 port (selectable via BIOS) |
|---|---|
| Display |
|
| USB | 2x USB 3.2 Gen2 |
| Audio | Audio Jack with Line-out with Realtek ALC897 Audio controller |
| Ethernet |
|
| Other | TPM 2.0 on board |
| Power Supply Unit | |
| Power Input | DC 12V input |
|---|---|
| Environmental | |
| Operation Temperature | 0°C ~ 50°C |
|---|---|
| Storage Temperature | -40°C ~ 85°C |
| Relative Humidity | 40°C, 95%RH non-condensing |
| Operation Vibration | 3Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Mechanical | |
| Dimension | 150 (W) x 150(D) x 66 (H) mm |
|---|---|
| Weight | 1.4 Kg |
| Mounting | Wall, DIN-rail mounting |
