WEBS-21I0 具备英特尔凌动 x6000E 系列的优点，特别是双 / 四核心处理作业能力。高效能、低耗能，高成本效率的处理器打造出的小型无风扇嵌入式系统支持 -20° C~60° C 宽温，适合自动 化、医疗、网通、数字广告牌与交互式信息服务站这类应用
| 系统 | |
| Model | WEBS-21I0 |
| 主板 | NANO-6063 |
| Form Factor | NANO-ITX |
| 中央处理器 | Intel Atom® Dual/Quad-core x6000E family SoC (up to 12W) |
| BIOS | AMI UEFI BIOS |
| 内存 | DDR4 3200 MT/s Non-ECC SO-DIMM up to 32GB |
| 储存装置 | 1x SATA III port 1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS) 1x Micro-SD socket |

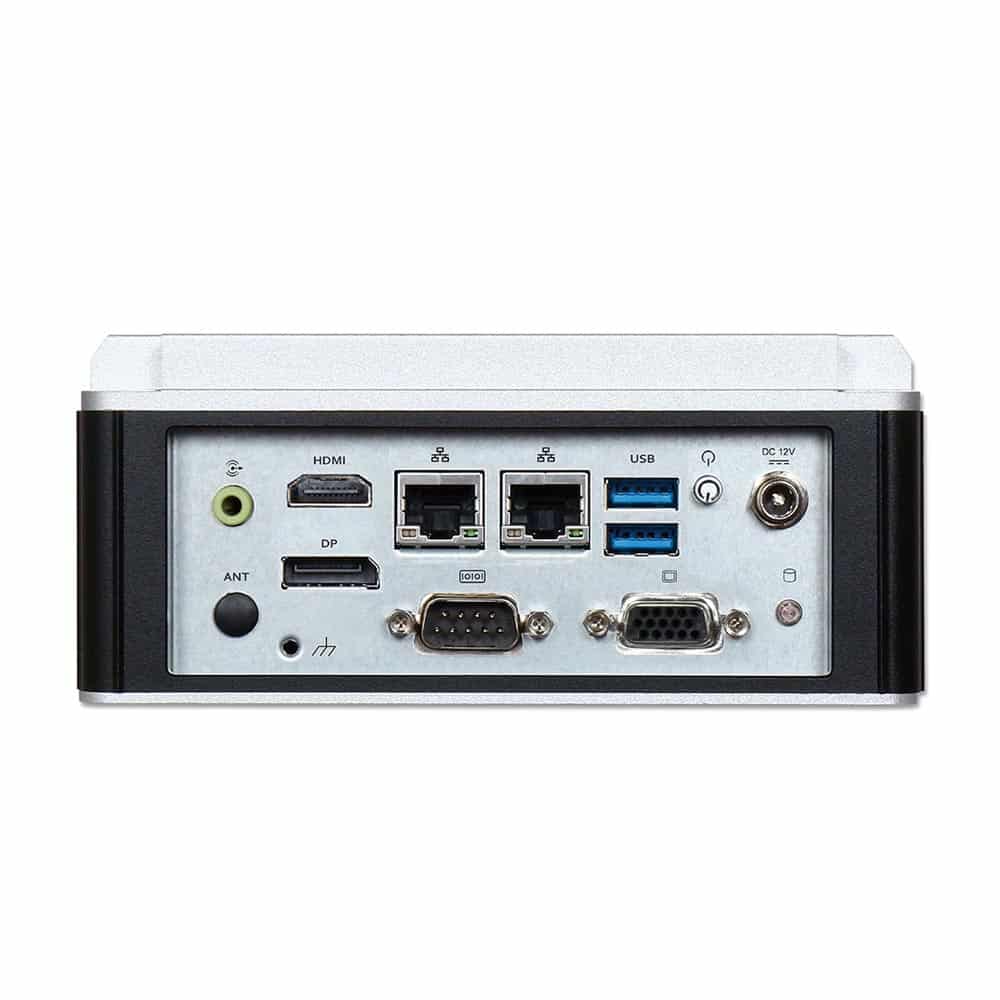

| 外部输入/输出 | |
| 串行端口 | 1x RS-232/422/485 on board connector (selected by BIOS) |
| USB | 2x USB 3.2 Gen 2 ports (10Gbps) |
| 显示器 | 1x VGA, 1x DP,1x HDMI |
| 以太网络 | Intel® I210 GbE controller and MaxLinear GPY215 GbE PHY Dual RJ45 connectors on rear I/O with two LED indicators |
| 音源 | Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in |
| 扩充 | 1x M.2 Type E socket 1x full size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS) 2x USB 3.2 Gen 2 ports on board with header (10Gbps) |
| 电源供应 | |
| 电源输入 | DC 12V |
| 环境条件 | |
| 运作温度 | -20°C~60°C |
| 储存温度 | -40°C~85°C |
| 相对湿度 | 40°C, 95%RH, non-condensing |
| 运作振动 | 5Grms/10~500Hz, IEC 60068-2-6 |
| 运作震动 | 50G, 11msec, IEC 60068-2-27 |
| 机构 | |
| 尺寸 | 150 x 150 x 66mm |
| 重量 | 1.4 Kg |

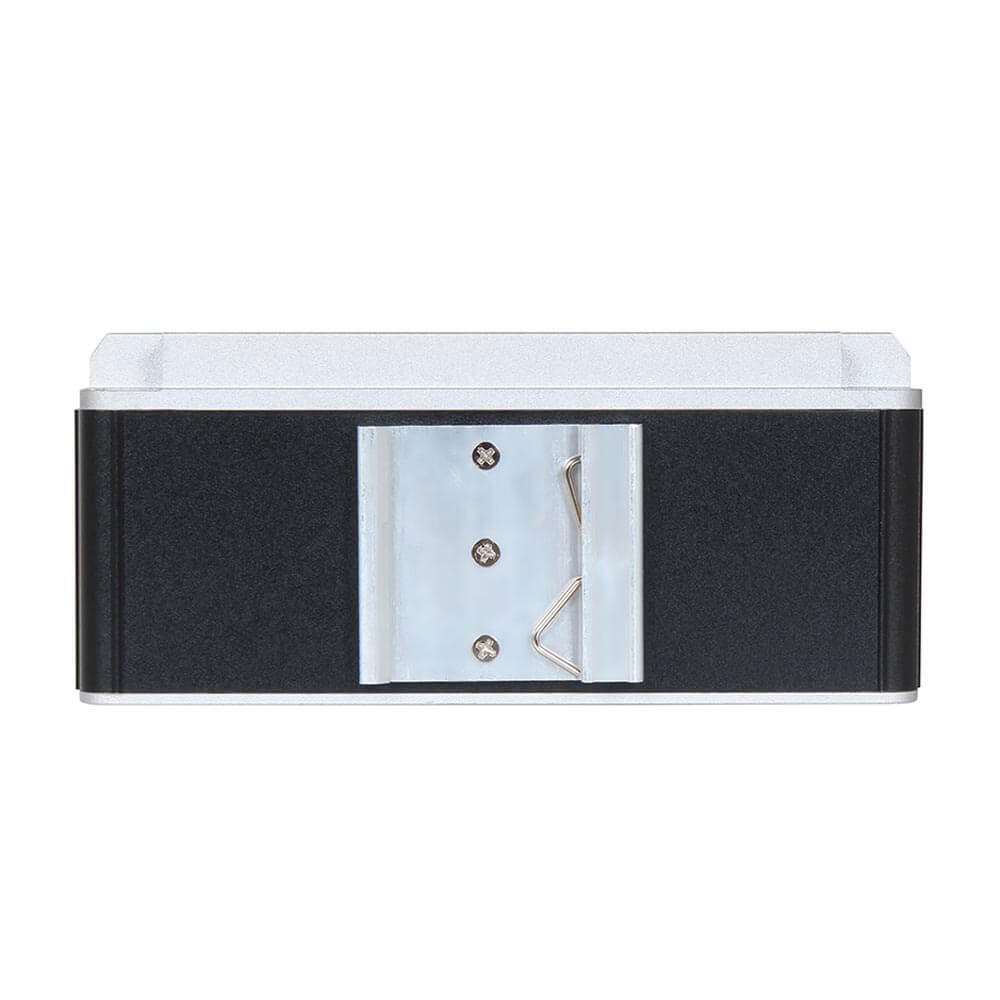

| 架设方式 | Wall, DIN-rail mounting |
