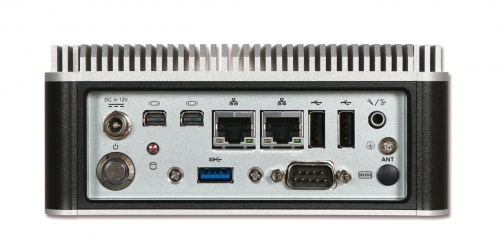

WEBS-21A0

Embedded Compact Fan-less System with Intel® 5th Gerenation ULT Core™ i Processor based NANO-ITX Board

产品特色

  • Fan-less and cable-less & small and exquisite design
  • Single 204-pin SODIMM supports DDR3L up to 8GB
  • Intel® 5th Gerenation ULT Core™ i Processor based platform
  • 1x 2.5” SATA HDD/SSD, 1x mSATA
  • 1x Half-size Mini-PCIe socket (USB+PCIe x1 signal)
  • 1x Antenna hole for WiFi, 3G or GPS module to use
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating
业务服务需求
产品支持服务

产品描述

The WEBS-21A0 builds on Intel® 5th Gerenation ULT Core™ i Processor and takes advantages of Intel® Core™ mobile technologies. that can support superior Dual-Core processing power and capability. Support two Gigabit Ethernet ports and one Half-Size Mini PCIe. The WEBS-21A0 is an ideal platform which with high performance for fan-less applications in harsh environment, such as POS, kiosk, d i g i tal signage, transportation and automation.

规格

Model WEBS-21A0
M/B NANO-6050
Form Factor NANO-ITX
System
CPU Intel® 5th Gerenation ULT Core™ i Processor
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® Gen 8 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528
Storage 1x 2.5” SATA HDD/SSD 1x mSATA
External I/O
Serial 1x RS-232/422/485
USB 2x USB2.0 1x USB3.0
Display 2x mini DP
Ethernet Intel® I218AT x 2
PS/2 N/A
Audio Combo Jack Line-out, Mic-in
D I/O N/A
Expansion 1x Half-size Mini-PCIe
PWR
System DC 12V
Environment
OP Temp. 0°C ~ 50°C
Storage Temp. -20°C ~ 85°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 150 x 150 x 62.6 mm
Weight 2 Kg

订购指南

AS5-3442 (R).WEBS-21A0.NANO-ITX system.
