WEBS-2190

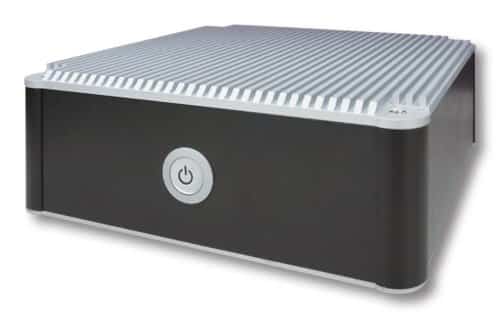

Embedded Compact Fan-less System with Intel® Atom® E3800 Series based NANO-ITX Board

产品特色

  • Fan-less and cable-less & small and exquisite design
  • Fan-less solution with Quad/Dual-Core CPU
  • Intel® Baytrail SoC base platform
  • 1x Half-size Mini-PCIe socket (USB + PCIe x1 signal)
  • 1x Antenna hole for WiFi or 3G/GPS module to use
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating
型录下载
业务服务需求
产品支持服务

产品描述

The WEBS-2190 builds on Intel® Baytrail SoC and takes advantages of Intel® Atom® E3800 Series processor technologies, especially its vastly superior Quad-Core processing power and capability. The cost-effective CPU with high performance is of great use to build up a compact system, the WEBS-2190, it supports a wide temperature from -25°C to 60°C for fanless applications in harsh environment, such as POS, kiosk, digital signage, transportation and automation.

规格

Model WEBS-2190
M/B NANO-6060
Form Factor NANO-ITX
System
CPU Atom® E2827 1.75GHz Atom® E3845 1.91GHz
Chipset Intel® SoC
BIOS Phoenix UEFI
Memory DDR3L/4GB
Graphic Controller Intel® Gen 7 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528
Storage 1x 2.5” SATA HDD/SSD 1x Micro-SD

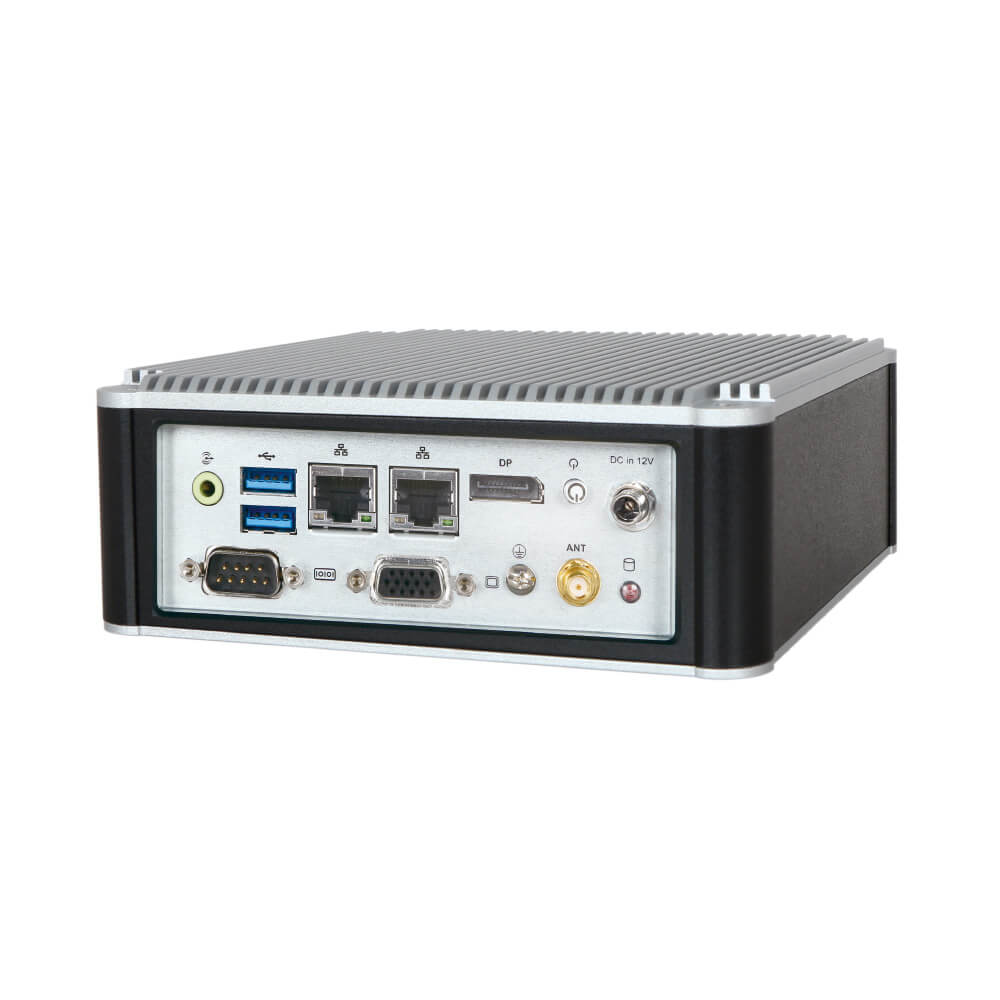

External I/O
Serial 1x RS-232/422/485
USB 2x USB3.0
Display VGA, DP
Ethernet Intel® I210IT x 2
PS/2 N/A
Audio Line-out
D I/O N/A
Expansion 1x Half-size Mini-PCIe
PWR
System DC 12V
Environment
OP Temp. -25°C ~ 60°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 150 x 150 x 53 mm
Weight 1.3 Kg

订购指南

AS5-3367 (R).ATO.WEBS-2190.NANO-ITX System
