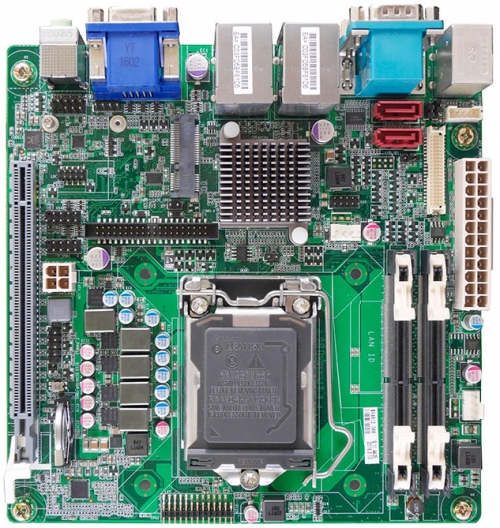

WADE-8210-H110

Leading Desktop Intel® 7th and 6th Gen Core™ Processors (former Kaby Lake/Skylake) Mini- ITX with DDR4 SDRAM, Triple Displays, Two GbE LAN ports, Six COM Ports

产品特色

  • Intel® 7th and 6th Gen Core™ Processors support
  • Supports two SO-DIMMs support DDR4 Non-ECC SDRAM up to 32GB
  • Supports dual Ethernet, six COM Ports, eight USB Ports, two SATA III Ports and Audio
  • Supports one PCIe x16 slot, and one mini-PIe socket(mSATA)
业务服务需求
产品支持服务

产品描述

WADE-8210-H110 is based on Intel® H110 chipset and Desktop processors including Intel® 7th and 6th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III. Those features help you to build high performance and stable system.

规格

MODEL WADE-8210-H110
Form Factor Mini-ITX
CPU Intel® 7th and 6th Gen Core™ Processors CPU in LGA1151 package
Chipset Intel® H110
BIOS AMI UEFI
Memory up to 32GB DDR4 2133 Non-ECC SDRAM on two 260 pin SO-DIMM socket
Expansion 1x PCIe x16 1x mini-PCIe socket
Display LVDS/HDMI/VGA
Audio Realtek ALC269HDA codec
LAN 2x GbE
Serial Port 2x RS-232 4x RS-232
USB 4x USB3.0 4x USB2.0
Storage Device 2x SATA III
GPIO 8 bit
Others N/A
Dimension 170 x 170 mm

订购指南

AB1-3G39 (R).WADE-8210-H110 Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SO-DIMM /VGA/HDMI/Dual GbE/COM/Audio/USB

包装清单

One CPU Cooler bracket
One SATA cable
One Installation CD
One I/O shield
One WADE-8210-H110 Main board
