WADE-8173-J6412

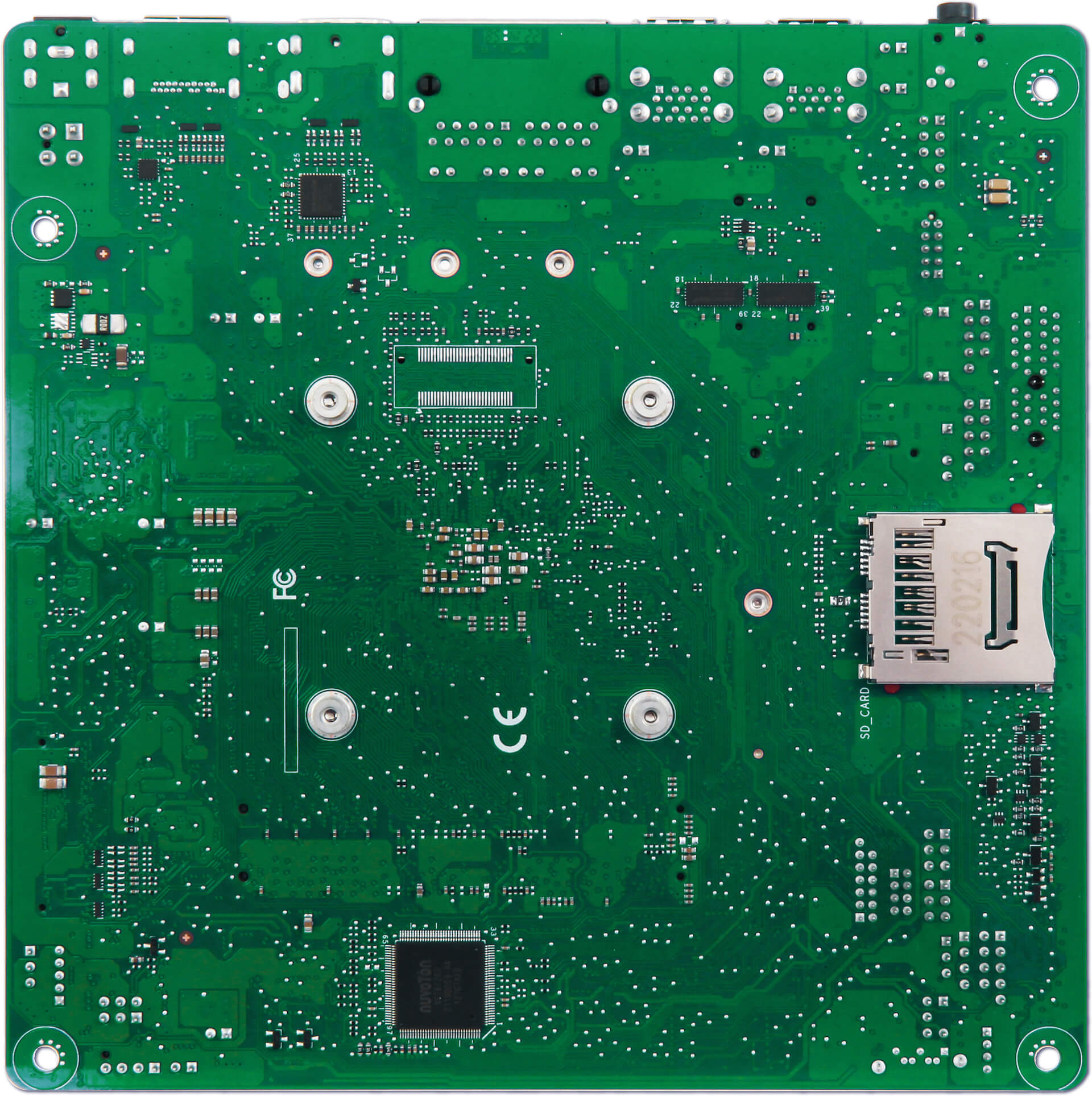

WADE-8173-J6412 - 图片 2

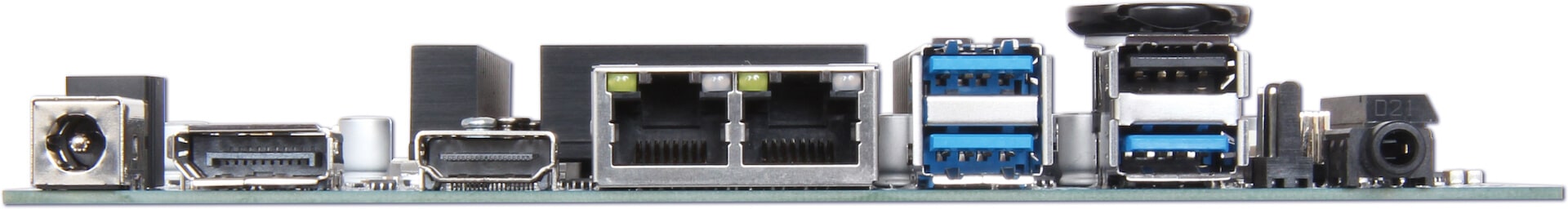

WADE-8173-J6412 - 图片 3

WADE-8173-J6412

搭载英特尔^®Celeron^®处理器 J6412 Mini-ITX 主板帶 HDMI, DP, LVDS/eDP, 双 GbE, USB 3.2 Gen 2, SATA III, Mini PCIe, M.2

产品特色

Intel^® Celeron^® Processor J6412(formerly Elkhart Lake)
Two SO-DIMM support DDR4 DRAM up to 32GB
Support dual Ethernet, 6x COM Ports
Support 3x USB 3.2 Gen2, 5x USB 2.0, 1x SATAIII port
Support one PCIe x1(Gen3), one M.2 Key E 2230 with PCIe x1 and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x2 and SATA signal for SSD and one full/half size Mini PCIe socket with PCIe x1(with SIM holder) and one Full size SD card slot

产品描述

WADE-8173-J6412 基于 Intel^® Celeron处理器 J6412。凭借双通道 DDR4 SO-DIMM 内存和丰富的 I/O 集，Portwell WADE-8173-J6412 Mini-ITX 嵌入式主板为销售点 (POS) 和工业自动化应用提供了节能解决方案

规格

Specifications
General
处理器	Intel^® Celeron^® processor J6412 in FCBGA1493 package, 2.0 GHz (2.6 GHz turbo), 1.5 MB L2 Cache, 10W TDP
芯片组	N/A
BIOS	AMI uEFI BIOS
内存	Support 2x SO-DIMM sockets up to 32GB DDR4 3200 MHz non-ECC memory
储存装置	1x SATAIII ports
看门狗计时	Programmable watchdog timer
硬件监控	Temperature (CPU & System)
扩充接口	1x PCIe x1 Gen 3 1x M.2 Key E 2230 with PCIe x1 and USB 2.0 for Wireless 1x M.2 Key M 2242/2260/2280 with PCIex2 and SATA signal for SSD 1x full/half size Mini PCIe socket with PCIe x1(with SIM holder) 1x Full size SD card slot

I/O INTERFACE
I/O 界面
音源	Intel^® High Definition Audio interface Realtek^® ALC897 High Definition Audio 1x audio jack support Line-out
以太网络	2x RJ45 connectors on rear I/O (Realtek^® RTL8111H)
串行端口	1x RS232/422/485 port on pin header 5x RS232 ports on pin header
USB	3x USB 3.2 Gen2 on rear I/O 1x USB 2.0 on rear I/O 4x USB 2.0 on pin header
GPIO	8-bit GPI/GPO

DISPLAY
显示器
图像控制	Integrated Intel^® UHD Graphics Supports DirectX 12, OpenGL 4.5, OpenCL 1.2
显示器界面	Triple Displays DP1: resolution up to 4096×2160 DP2: resolution up to 4096/2160 (colay with HDMI^®) HDMI^®: resolution up to 3840×2160 (Default) LVDS: resolution up to 1920×1200 (Default) eDP: resolution up to 4096×2160 (colay with LVDS)

Mechanical & Environment
机构与环境
尺寸	170mm(L) x 170mm(W)
电源供应	12V DC in (1x external DC jack; 1x internal 4 pin power connector)
环境	Operation Temperature: 0°C to 60°C Storage Temperature: -20°C to 80°C Relative Humidity: 5% to 95%, non-condensing
MTBF	Over 100,000 hours at 40°C

订购指南

Ordering Guide
AB1-3P59	(R).WADE-8173-J6412. Mini-ITX ESB.Intel Elkhart lake SoC Processor J6412 w/DDR4/DP/LVDS/HDMI^®/dual GbE LAN/ SATA

包装清单

Packing List
One WADE-8173-J6412 motherboard
Two I/O shield
Two SATA cable
One SATA power cable
